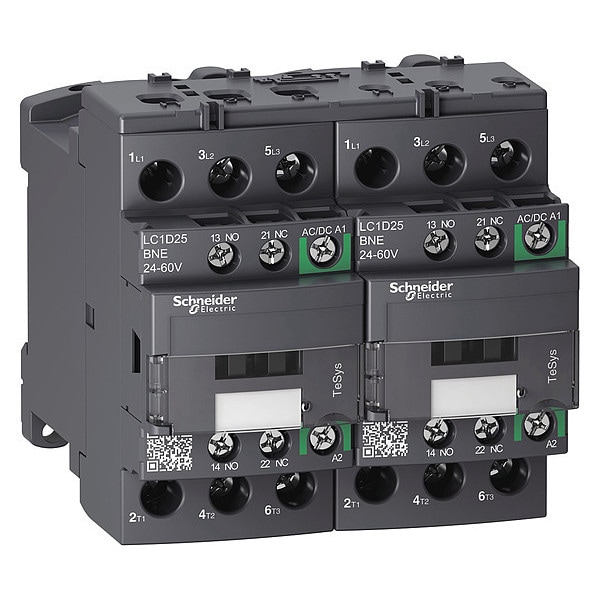

Contacto magnético IEC, 3 polos, 24 a 60 V CA/CC, 25 A, Reversión: Sí
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 25 A |
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 3 |
| Coil Volts | 24 to 60 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 3 hp |
| Height | 3.35 in |
| Width | 3.54 in |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 20 hp |
| Depth | 3.62 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 15 hp |
| Frame / Series / Class / Code | TeSys |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Hz | 50/60 |
| NEMA Size | Not Applicable |
| Series | TeSys Deca |
| Auxiliary Contact Form | 1NO/1NC |
| IP Rating | IP20 |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Maximum Operating Temperature | 140 deg F |
| Electrical Operating Durability | 2,000,000, 900,000 |
| NEMA Enclosure Rating | No Enclosure |
| Mechanical Operating Durability | 15,000,000 |
| Coil Voltage | 24-60V AC/DC |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Overall Width | 3.54 in |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Contactor Style | IEC |
| Number of Auxillary Contacts | 2 |
| Overall Depth | 3.62 in |
| Number of Normally Open Main Contacts | 3 |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Horsepower @ Three Phase - 600V AC | 20 HP |
| Mounting Style | DIN Rail, Plate |
| Maximum Voltage Rating | 690 V AC |
| Includes Auxiliary Contacts | Yes |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Overall Height | 3.35 in |
| NEMA Enclosure Material | Not Applicable |
| Embedded Surge Suppressor | No |
| Full Load Current - Inductive | 25 A |
| Full Load Current - Resistive | 40 A |
| Minimum Operating Temperature | -40 deg F |
| Reversing Capability | Reversing |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Impedance | 2 mOhm |
| Switching Voltage | 17 V (Signalling Circuit) |
| Mechanical Durability | 15 Mcycles |
| Max. Temperature | 850°C |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit) |
| Impulse Withstand Voltage | 6 kV |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Switching Current | 5 mA (Signalling Circuit) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Watts Loss | 0.6W |
| Net Weight | 0.913 kg |
| Application | Motor Control, Resistive Load |
| Electrical Durability | 2 Mcycles (21 A, AC-3, Less than 440 V); 0.9 Mcycles (40 A, AC-1, Less than 440 V) |
| Inrush VA | 15 VA |
| Fire Rating | UL 94 V1 |
| Overvoltage Category | CAT III |
| Max. Operating Watts | 5.5 kW (at 220 to 230V AC 50 Hz), 11 kW (at 380 to 400V AC 50 Hz), 11 kW (at 415V AC 50 Hz), 11 kW (at 440V AC 50 Hz), 15 kW (at 500V AC 50 Hz), 15 kW (at 660 to 690V AC 50 Hz) |
| Rated Voltage | 690V AC |
| Rated Short-Time Withstand Current | 50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit) |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Includes Protective Cover | Yes |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Non-Overlap Time | 1.5 msec |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit) |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C) |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Operating Time | 45 to 55 ms (Closing), 20 to 90 ms (Opening) |
| Rated Insulation Volts | 690V |
| Mounts On | Plate, Rail |
| Working Height | Up to 9,842.52 ft |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Operating Speed | 3600 cycles per hr |
| Electrical Connection | Screw Clamp Terminals |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Rated Breaking Capacity | 450 A @ 440V |
| Hold VA | 0.9 VA |
| Package Quantity | 1 |
