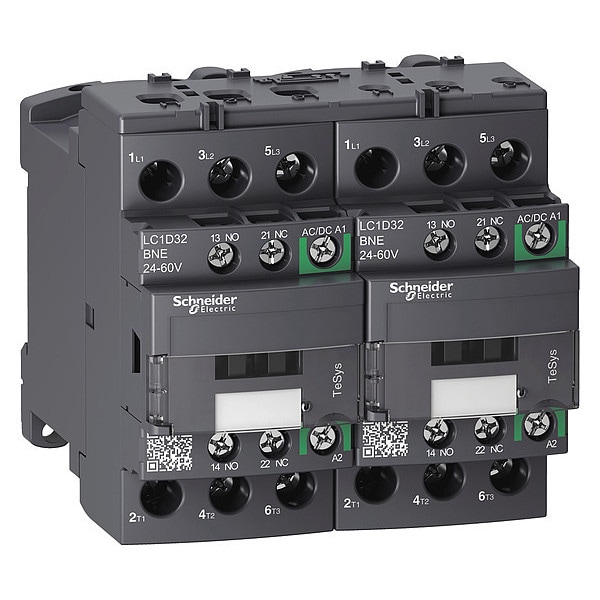

Contacto magnético IEC, 3 Polos, 24 a 60 V CA/CC, 32 A, Reversión: Sí.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 32 A |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 3 |
| Coil Volts | 24 to 60 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 2 hp |
| Height | 3.35 in |
| HP @ 1 Phase - 240V | 5 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 208V | 10 hp |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 575V | 25 hp |
| Depth | 3.62 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 20 hp |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Frame / Series / Class / Code | TeSys |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Series | TeSys Deca |
| Auxiliary Contact Form | 1NO/1NC |
| NEMA Size | Not Applicable |
| IP Rating | IP20 |
| Full Load Current - Resistive | 50 A |
| Number of Normally Open Main Contacts | 3 |
| NEMA Enclosure Material | Not Applicable |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Depth | 3.62 in |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Mechanical Operating Durability | 15,000,000 |
| Contactor Style | IEC |
| Overall Width | 3.54 in |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Reversing Capability | Reversing |
| Includes Auxiliary Contacts | Yes |
| Number of Auxillary Contacts | 2 |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Mounting Style | DIN Rail, Plate |
| Frequency | 50/60 Hz |
| Electrical Operating Durability | 2,100,000, 900,000 |
| NEMA Enclosure Rating | No Enclosure |
| Overall Height | 3.35 in |
| Coil Voltage | 24-60V AC/DC |
| Full Load Current - Inductive | 32 A |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Horsepower @ Three Phase - 480V AC | 20 HP |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Maximum Voltage Rating | 690 V AC |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Embedded Surge Suppressor | No |
| Electrical Durability | 2.1 Mcycles (29 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V) |
| Mounts On | Plate, Rail |
| Includes Protective Cover | Yes |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Breaking Capacity | 550 A @ 440V |
| Rated Insulation Volts | 690V |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Impulse Withstand Voltage | 6 kV |
| Max. Operating Watts | 7.5 kW (at 220 to 230V AC 50 Hz), 15 kW (at 380 to 400V AC 50 Hz), 15 kW (at 415V AC 50 Hz), 15 kW (at 440V AC 50 Hz), 18.5 kW (at 500V AC 50 Hz), 18.5 kW (at 660 to 690V AC 50 Hz) |
| Watts Loss | 0.6W |
| Switching Voltage | 17 V (Signalling Circuit) |
| Fire Rating | UL 94 V1 |
| Mechanical Durability | 15 Mcycles |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit) |
| Operating Time | 45 to 55 ms (Closing), 20 to 90 ms (Opening) |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit) |
| Impedance | 2 mOhm |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Rated Voltage | 690V AC |
| Non-Overlap Time | 1.5 msec |
| Net Weight | 0.923 kg |
| Operating Speed | 3600 cycles per hr |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Inrush VA | 15 VA |
| Max. Temperature | 850°C |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit) |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C) |
| Electrical Connection | Screw Clamp Terminals |
| Application | Motor Control, Resistive Load |
| Hold VA | 0.9 VA |
| Working Height | Up to 9,842.52 ft |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Overvoltage Category | CAT III |
| Package Quantity | 1 |
