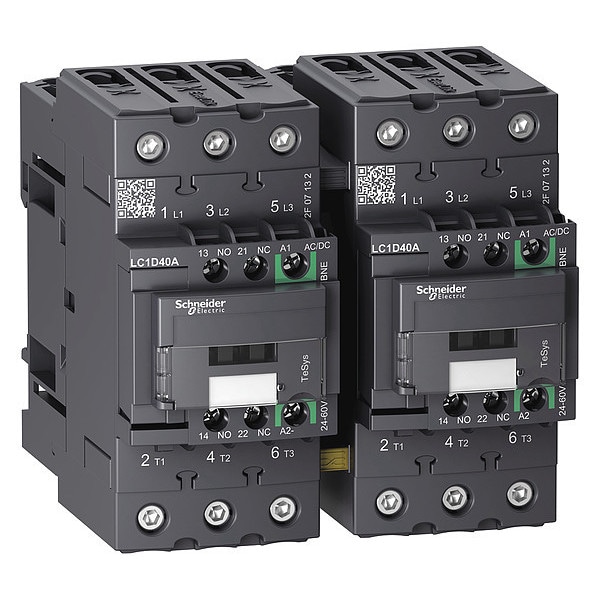

Contactora magnética IEC, 3 polos, 24 a 60 V CA/CD, 40 A, Reversión: Sí
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 40 A |
| Full Load Amps-Resistive | 60 A |
| Number of Poles | 3 |
| Coil Volts | 24 to 60 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 3 hp |
| Height | 4.8 in |
| HP @ 1 Phase - 240V | 5 hp |
| HP @ 3 Phase - 208V | 10 hp |
| Width | 4.69 in |
| Depth | 4.72 in |
| HP @ 3 Phase - 575V | 30 hp |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 480V | 30 hp |
| Enclosure NEMA Rating | No Enclosure |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Frame / Series / Class / Code | TeSys |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 1NO/1NC |
| Series | TeSys Deca |
| IP Rating | IP20 |
| Full Load Current - Inductive | 40 A |
| Maximum Operating Temperature | 140 deg F |
| Full Load Current - Resistive | 60 A |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Terminal Connection Type | Screw Clamp Terminals |
| Contactor Style | IEC |
| Overall Height | 4.8 in |
| NEMA Enclosure Material | Not Applicable |
| Number of Normally Open Main Contacts | 3 |
| Coil Voltage | 24-60V AC/DC |
| Number of Auxillary Contacts | 2 |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Three Phase - 600V AC | 30 HP |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Reversing Capability | Reversing |
| Includes Auxiliary Contacts | Yes |
| Embedded Surge Suppressor | No |
| Frequency | 50/60 Hz |
| Maximum Voltage Rating | 690 V AC |
| Electrical Operating Durability | 2,000,000, 700,000 |
| Overall Width | 4.69 in |
| Overall Depth | 4.72 in |
| Horsepower @ Three Phase - 480V AC | 30 HP |
| Mechanical Operating Durability | 6,000,000 |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Style | DIN Rail, Plate |
| Mechanical Durability | 6 Mcycles |
| Overvoltage Category | CAT III |
| Includes Protective Cover | Yes |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Net Weight | 2.154 kg |
| Max. Temperature | 850°C |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit) |
| Watts Loss | 0.7W |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Fire Rating | UL 94 V1 |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Inrush VA | 15 VA |
| Rated Voltage | 690V AC |
| Mounts On | Plate, Rail |
| Switching Current | 5 mA (Signalling Circuit) |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Electrical Durability | 2 Mcycles (35 A, AC-3, Less than 440 V); 0.7 Mcycles (60 A, AC-1, Less than 440 V) |
| Fuse Amps | 10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit) |
| Non-Overlap Time | 1.5 msec |
| Hold VA | 1 VA |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Rated Insulation Volts | 690V |
| Operating Speed | 3600 cycles per hr |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Impulse Withstand Voltage | 6 kV |
| Working Height | Up to 9,842.52 ft |
| Impedance | 1.5 mOhm |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit) |
| Application | Motor Control, Resistive Load |
| Switching Voltage | 17 V (Signalling Circuit) |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Max. Operating Watts | 11 kW (at 220 to 230V AC 50 Hz), 18.5 kW (at 380 to 400V AC 50 Hz), 22 kW (at 415V AC 50 Hz), 22 kW (at 440V AC 50 Hz), 22 kW (at 500V AC 50 Hz), 30 kW (at 660 to 690V AC 50 Hz) |
| Rated Breaking Capacity | 800 A @ 440V |
| Package Quantity | 1 |
