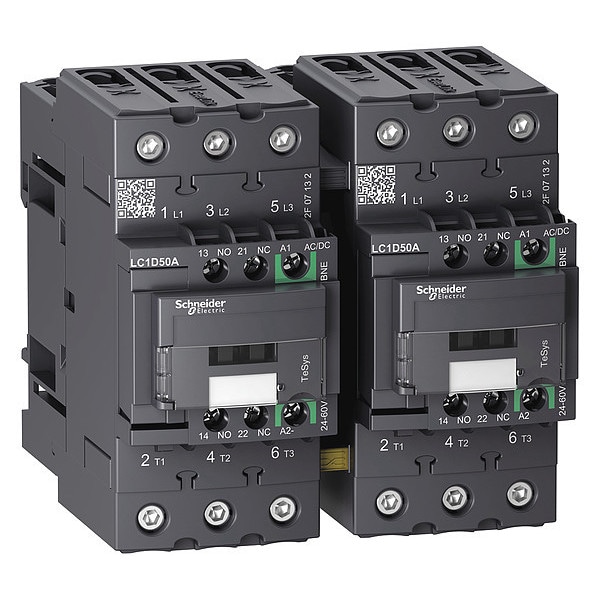

Contacto magnético IEC, 3 polos, 24 a 60 V CA/CD, 50 A, Inversión: Sí
| Full Load Amps-Inductive | 50 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 24 to 60 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Height | 4.8 in |
| HP @ 3 Phase - 208V | 15 hp |
| Width | 4.69 in |
| HP @ 3 Phase - 575V | 40 hp |
| Depth | 4.72 in |
| HP @ 3 Phase - 240V | 15 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 40 hp |
| Hz | 50/60 |
| Frame / Series / Class / Code | TeSys |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Auxiliary Contact Form | 1NO/1NC |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| IP Rating | IP20 |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Maximum Voltage Rating | 690 V AC |
| Overall Width | 4.69 in |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 600V AC | 40 HP |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Overall Depth | 4.72 in |
| Coil Voltage | 24-60V AC/DC |
| NEMA Enclosure Material | Not Applicable |
| Mechanical Operating Durability | 6,000,000 |
| NEMA Enclosure Rating | No Enclosure |
| Electrical Operating Durability | 1,800,000, 500,000 |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 208V AC | 15 HP |
| Reversing Capability | Reversing |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Number of Auxillary Contacts | 2 |
| Full Load Current - Inductive | 50 A |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Height | 4.8 in |
| Embedded Surge Suppressor | No |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Full Load Current - Resistive | 80 A |
| Number of Normally Open Main Contacts | 3 |
| Contactor Style | IEC |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Maximum Operating Temperature | 140 deg F |
| Mounting Style | DIN Rail, Plate |
| Minimum Operating Temperature | -40 deg F |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Impedance | 1.5 mOhm |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 900 A @ 440V (Power Circuit) |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Mounts On | Plate, Rail |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Includes Protective Cover | Yes |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Impulse Withstand Voltage | 6 kV |
| Mechanical Durability | 6 Mcycles |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| Max. Operating Watts | 15 kW (at 220 to 230V AC 50 Hz), 22 kW (at 380 to 400V AC 50 Hz), 25 kW (at 415V AC 50 Hz), 30 kW (at 440V AC 50 Hz), 30 kW (at 500V AC 50 Hz), 33 kW (at 660 to 690V AC 50 Hz) |
| Switching Current | 5 mA (Signalling Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Rated Insulation Volts | 690V |
| Max. Temperature | 850°C |
| Electrical Durability | 1.8 Mcycles (42 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V) |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Watts Loss | 0.7W |
| Fuse Amps | 10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit) |
| Fire Rating | UL 94 V1 |
| Working Height | Up to 9,842.52 ft |
| Hold VA | 1 VA |
| Rated Voltage | 690V AC |
| Rated Breaking Capacity | 900 A @ 440V |
| Application | Motor Control, Resistive Load |
| Operating Speed | 3600 cycles per hr |
| Net Weight | 2.164 kg |
| Overvoltage Category | CAT III |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Inrush VA | 15 VA |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Non-Overlap Time | 1.5 msec |
| Package Quantity | 1 |
