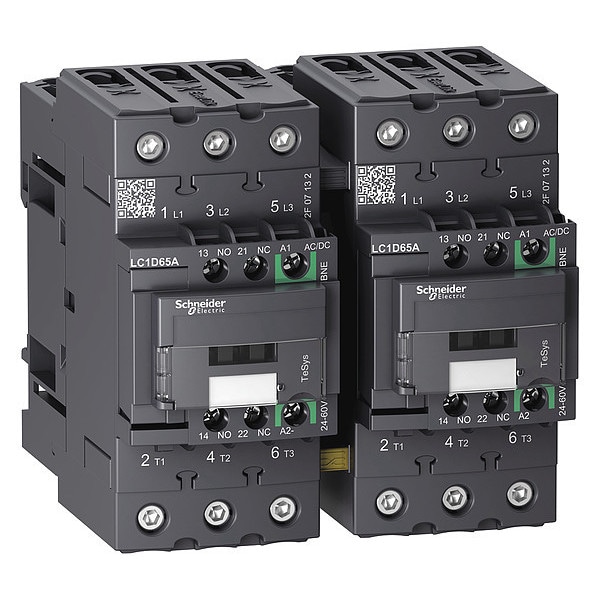

Contacto magnético IEC, 3 polos, 24 a 60 V CA/CD, 65 A, Reversible: Sí.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 65 A |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 24 to 60 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 5 hp |
| HP @ 1 Phase - 240V | 10 hp |
| Height | 4.8 in |
| HP @ 3 Phase - 208V | 20 hp |
| Width | 4.69 in |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 240V | 20 hp |
| Depth | 4.72 in |
| HP @ 3 Phase - 480V | 40 hp |
| Enclosure NEMA Rating | No Enclosure |
| Frame / Series / Class / Code | TeSys |
| Hz | 50/60 |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 1NO/1NC |
| IP Rating | IP20 |
| Horsepower @ Single Phase - 120V AC | 5 HP |
| Frequency | 50/60 Hz |
| Overall Depth | 4.72 in |
| Maximum Voltage Rating | 690 V AC |
| Minimum Operating Temperature | -40 deg F |
| Contactor Style | IEC |
| Resistance Properties | Fire Resistant |
| Includes Auxiliary Contacts | Yes |
| NEMA Enclosure Material | Not Applicable |
| Embedded Surge Suppressor | No |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Coil Voltage | 24-60V AC/DC |
| Overall Height | 4.8 in |
| Number of Auxillary Contacts | 2 |
| Reversing Capability | Reversing |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Style | DIN Rail, Plate |
| Number of Normally Open Main Contacts | 3 |
| Full Load Current - Inductive | 65 A |
| Full Load Current - Resistive | 80 A |
| Horsepower @ Single Phase - 240V AC | 10 HP |
| Overall Width | 4.69 in |
| Horsepower @ Three Phase - 208V AC | 20 HP |
| Mechanical Operating Durability | 6,000,000 |
| Horsepower @ Three Phase - 240V AC | 20 HP |
| Electrical Operating Durability | 1,800,000, 500,000 |
| Terminal Connection Type | Screw Clamp Terminals |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Rated Insulation Volts | 690V |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Max. Operating Watts | 18.5 kW (at 220 to 230V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz), 37 kW (at 415V AC 50 Hz), 37 kW (at 440V AC 50 Hz), 37 kW (at 500V AC 50 Hz), 37 kW (at 660 to 690V AC 50 Hz) |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit) |
| Switching Current | 5 mA (Signalling Circuit) |
| Impedance | 1.5 mOhm |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Fire Rating | UL 94 V1 |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| Mounts On | Plate, Rail |
| Rated Voltage | 690V AC |
| Non-Overlap Time | 1.5 msec |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Net Weight | 2.174 kg |
| Fuse Amps | 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit) |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Impulse Withstand Voltage | 6 kV |
| Watts Loss | 0.7W |
| Working Height | Up to 9,842.52 ft |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit) |
| Inrush VA | 15 VA |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Electrical Durability | 1.8 Mcycles (57 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V) |
| Includes Protective Cover | Yes |
| Mechanical Durability | 6 Mcycles |
| Application | Motor Control, Resistive Load |
| Overvoltage Category | CAT III |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Operating Speed | 3600 cycles per hr |
| Rated Breaking Capacity | 1000 A @ 440V |
| Max. Temperature | 850°C |
| Hold VA | 1 VA |
| Package Quantity | 1 |
