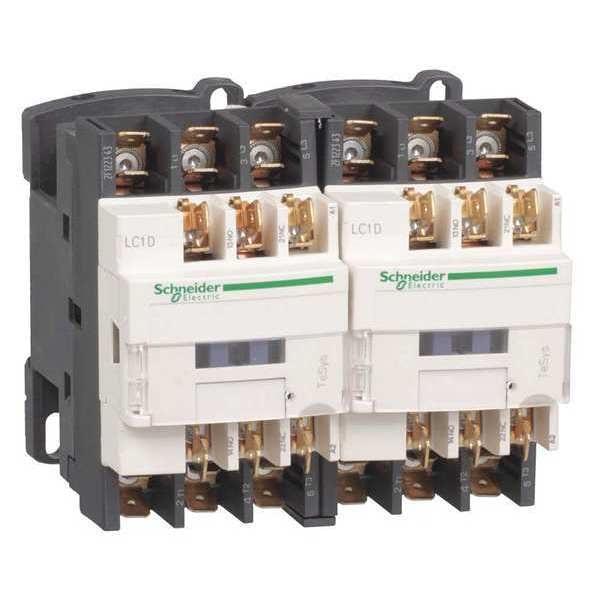

Contacto magnético IEC, 3 polos, 24 V CA, 12 A
| Full Load Amps-Inductive | 12 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Reversing |
| Full Load Amps-Resistive | 25 A |
| Number of Poles | 3 |
| Coil Volts | 24 V AC |
| HP @ 1 Phase - 240V | 2 hp |
| Height | 77 mm |
| HP @ 3 Phase - 208V | 3 hp |
| Width | 90 mm |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Depth | 86 mm |
| HP @ 3 Phase - 480V | 7 1/2 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | LC2D |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30 |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Net Weight | 0.697 kg |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Switching Voltage | 17 V (Signalling Circuit) |
| Non-Overlap Time | 1.5 msec |
| Max. Temperature | 850°C |
| Inrush VA | 70 VA |
| IP Rating | IP20 |
| Rated Insulation Volts | 600/690V |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit) |
| Fuse Amps | 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Watts Loss | 2 to 3W |
| Rated Breaking Capacity | 250 A @ 440V |
| Application | Motor Control, Resistive Load |
| Includes Protective Cover | Yes |
| Rated Voltage | 690V AC, 300V DC |
| Switching Current | 5 mA (Signalling Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Rated Making Capacity | 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Impedance | 2.5 mOhm |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Fire Rating | UL 94 V1 |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Electrical Connection | Faston Terminals |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Impulse Withstand Voltage | 6 kV |
| Rated Short-Time Withstand Current | 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Working Height | Up to 9,842.52 ft |
| Overvoltage Category | CAT III |
| Mounts On | Plate, Rail |
| Operating Speed | 3600 cycles per hr |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Mechanical Durability | 15 Mcycles |
| Electrical Durability | 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V) |
| Max. Operating Watts | 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz) |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit) |
| Package Quantity | 1 |
