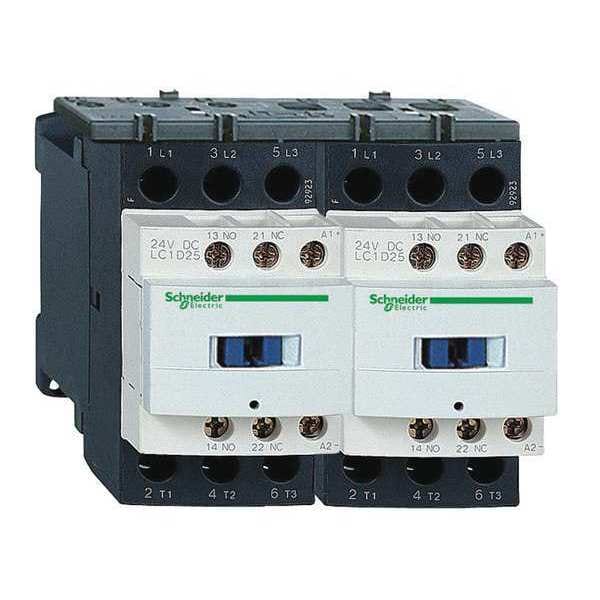

Contacto magnético IEC, 3 polos, 24 V CA, 12 A.
| Full Load Amps-Inductive | 12 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Reversing |
| Full Load Amps-Resistive | 25 A |
| Number of Poles | 3 |
| Coil Volts | 24 V AC |
| Height | 77 mm |
| HP @ 1 Phase - 240V | 2 hp |
| HP @ 3 Phase - 208V | 3 hp |
| Width | 90 mm |
| HP @ 3 Phase - 240V | 3 hp |
| Depth | 86 mm |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 3 Phase - 480V | 7 1/2 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | LC2D |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30 |
| Non-Overlap Time | 1.5 msec |
| Fuse Amps | 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit) |
| Switching Current | 5 mA (Signalling Circuit) |
| Working Height | Up to 9,842.52 ft |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Max. Operating Watts | 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Rated Voltage | 690V AC, 300V DC |
| Rated Making Capacity | 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Fire Rating | UL 94 V1 |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Rated Breaking Capacity | 250 A @ 440V |
| Inrush VA | 70 VA |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Watts Loss | 2 to 3W |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Mechanical Durability | 15 Mcycles |
| Max. Temperature | 850°C |
| Application | Motor Control, Resistive Load |
| Rated Insulation Volts | 600/690V |
| Includes Protective Cover | Yes |
| Overvoltage Category | CAT III |
| Mounts On | Plate, Rail |
| Net Weight | 0.697 kg |
| Electrical Durability | 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V) |
| Rated Short-Time Withstand Current | 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Electrical Connection | Screw Clamp Terminals |
| Impedance | 2.5 mOhm |
| IP Rating | IP20 |
| Impulse Withstand Voltage | 6 kV |
| Operating Speed | 3600 cycles per hr |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit) |
| Package Quantity | 1 |
