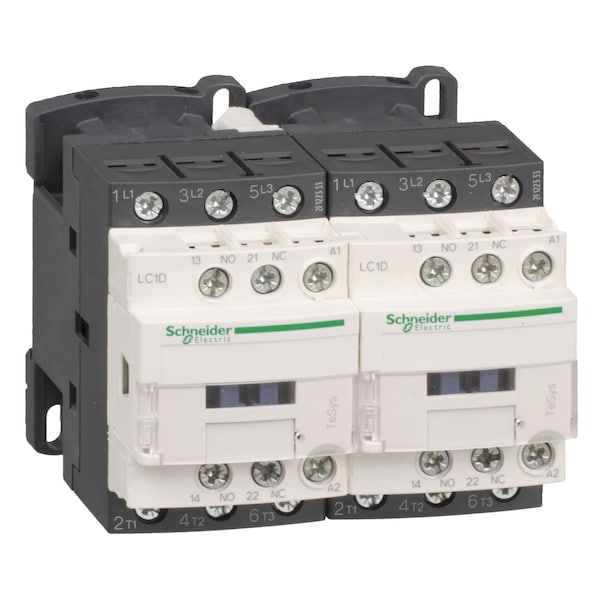

Contactador magnético IEC, 3 polos, 24 V CA, 25 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 25 A |
| Action | Reversing |
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 3 |
| Coil Volts | 24 V AC |
| HP @ 1 Phase - 240V | 3 hp |
| Height | 85 mm |
| Width | 90 mm |
| HP @ 3 Phase - 208V | 5 hp |
| Depth | 92 mm |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 20 hp |
| HP @ 3 Phase - 480V | 15 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30 |
| Series | LC2D |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Application | Motor Control, Resistive Load |
| Mounts On | Plate, Rail |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit) |
| Electrical Connection | Screw Clamp Terminals |
| Rated Breaking Capacity | 450 A @ 440V |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Fire Rating | UL 94 V1 |
| Max. Temperature | 850°C |
| Switching Voltage | 17 V (Signalling Circuit) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit) |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Includes Protective Cover | Yes |
| Impulse Withstand Voltage | 6 kV |
| Rated Voltage | 690V AC, 300V DC |
| Overvoltage Category | CAT III |
| Mechanical Durability | 15 Mcycles |
| Impedance | 2 mOhm |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit) |
| Working Height | Up to 9,842.52 ft |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Rated Short-Time Withstand Current | 50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Operating Speed | 3600 cycles per hr |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit) |
| Electrical Durability | 1.65 Mcycles (25 A, AC-3, Less than 440 V); 1.4 Mcycles (40 A, AC-1, Less than 440 V) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Non-Overlap Time | 1.5 msec |
| Max. Operating Watts | 5.5 kW (at 220 to 230V AC 50 Hz), 11 kW (at 380 to 400V AC 50 Hz), 11 kW (at 415 to 440V AC 50 Hz), 15 kW (at 500V AC 50 Hz), 15 kW (at 660 to 690V AC 50 Hz) |
| Net Weight | 0.787 kg |
| Inrush VA | 70 VA |
| Watts Loss | 2 to 3W |
| Rated Insulation Volts | 600/690V |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Switching Current | 5 mA (Signalling Circuit) |
| IP Rating | IP20 |
| Power Dissipation Per Pole | 1.25 W AC-3e, 3.2 W AC-1, 1.25 W AC-3 |
| Mechanical Robustness | vibrations contactor open2 Gn, 5...300 Hz, vibrations contactor closed4 Gn, 5...300 Hz, shocks contactor closed15 Gn for 11 ms, shocks contactor open8 Gn for 11 ms |
| Device Presentation | Preassembled with reversing power busbar |
| Coil Technology | Without built-in suppressor module |
| Pole Contact Composition | 3 NO |
| Irms Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 450 A at 440 V for power circuit conforming to IEC 60947 |
| Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C), 7-7 VA 50 Hz cos phi 0.3 (at 20°C) |
| Fire Resistance | 850°C IEC 60695-2-1 |
| Insulation Resistance | > 10 MOhm for signalling circuit |
| Average Impedance | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60°C) for signalling circuit, 40 A (at 60°C) for power circuit |
| Product Name | TeSys Deca |
| [Icw] Rated Short-Time Withstand Current | 50 A 40°C - 10 min for power circuit, 120 A 40°C - 1 min for power circuit, 240 A 40°C - 10 s for power circuit, 380 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Mounting Support | Rail, Plate |
| Flame Retardance | V1 conforming to UL 94 |
| Product or Component Type | reversing contactor |
| [Ui] Rated Insulation Voltage | power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL |
| Maximum Operating Rate | 3600 cyc/h 60°C |
| Climatic Withstand | IACS E10, IEC 60947-1 Annex Q category D |
| Ip Degree of Protection | IP20 front face IEC 60529 |
| Auxiliary Contacts Type | mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1 |
| Protective Cover | With |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Maximum Horse Power Rating | 3 hp at 230/240 V AC 60 Hz for 1 phase motors, 7.5 hp at 200/208 V AC 60 Hz for 3 phase motors, 2 hp at 115 V AC 60 Hz for 1 phase motors, 7.5 hp at 230/240 V AC 60 Hz for 3 phase motors, 15 hp at 460/480 V AC 60 Hz for 3 phase motors, 20 hp at 575/600 V AC 60 Hz for 3 phase motors |
| [Uc] Control Circuit Voltage | 24 V AC 50/60 Hz |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Inrush Power In Va | 70-70 VA 60 Hz cos phi 0.75 (at 20°C), 70-70 VA 50 Hz cos phi 0.75 (at 20°C) |
| Contactor Application | Motor control Resistive load |
| Connections - Terminals | control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid, control circuit screw clamp terminals 2 1-4 mm²solid, power circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end, power circuit screw clamp terminals 2 2.5-10 mm²flexible without cable end, power circuit screw clamp terminals 1 1-10 mm²flexible with cable end, power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end, power circuit screw clamp terminals 1 1.5-10 mm²solid, power circuit screw clamp terminals 2 2.5-10 mm²solid |
| Poles Description | 3P |
| Interlocking Type | Mechanical |
| Range | TeSys, Deca |
| Ambient Air Temperature For Storage | -60-80°C |
| Control Circuit Type | AC 50/60 Hz |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Heat Dissipation | 2-3 W 50/60 Hz |
| Motor Power Kw | 5.5 kW at 220...230 V AC 50-60 Hz, 11 kW at 380...400 V AC 50-60 Hz, 11 kW at 415 V AC 50-60 Hz, 11 kW at 440 V AC 50-60 Hz, 15 kW at 500 V AC 50-60 Hz, 15 kW at 660...690 V AC 50-60 Hz |
| Protective Treatment | THIEC 60068-2-30 |
| [Ie] Rated Operational Current | 25 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 40 A (at <60°C) at <= 440 V AC AC-1 for power circuit |
| Ambient Air Temperature For Operation | -40-60°C, 60-70°C with derating |
| Utilisation Category | AC-1, AC-3, AC-3e |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 63 A gG at <= 690 V coordination type 1 for power circuit, 40 A gG at <= 690 V coordination type 2 for power circuit |
| Package Quantity | 1 |
