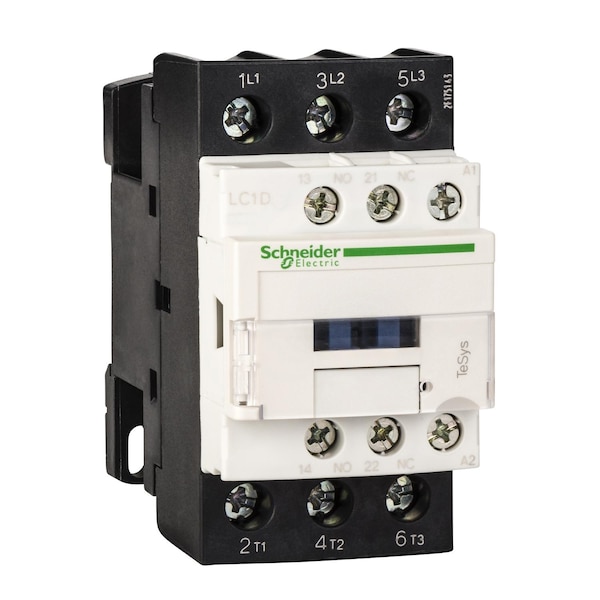

Contacto magnético IEC, 3 polos, 24 V CA, 32 A.
| Full Load Amps-Inductive | 32 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 50 A |
| Coil Volts | 24 V AC |
| Number of Poles | 3 |
| Height | 85 mm |
| HP @ 1 Phase - 240V | 5 hp |
| Width | 45 mm |
| Depth | 92 mm |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 480V | 20 hp |
| HP @ 3 Phase - 575V | 30 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1 |
| Series | LC1D |
| Features | Without Built-In Suppressor Module |
| Application | Motor Control, Resistive Load |
| Operating Time | 12...22 ms closing, 4...19 ms opening |
| Pvc Free | Yes |
| Motor Power Kw | 7.5 kW at 220...230 V AC 50/60 Hz (AC-3), 15 kW at 380...400 V AC 50/60 Hz (AC-3), 15 kW at 415...440 V AC 50/60 Hz (AC-3), 18.5 kW at 500 V AC 50/60 Hz (AC-3), 18.5 kW at 660...690 V AC 50/60 Hz (AC-3), 7.5 kW at 400 V AC 50/60 Hz (AC-4), 7.5 kW at 220...230 V AC 50/60 Hz (AC-3e), 15 kW at 380...400 V AC 50/60 Hz (AC-3e), 15 kW at 415...440 V AC 50/60 Hz (AC-3e), 18.5 kW at 500 V AC 50/60 Hz (AC-3e), 18.5 kW at 660...690 V AC 50/60 Hz (AC-3e) |
| Average Impedance | 2 mOhm - Ith 50 A 50 Hz for power circuit |
| Pollution Degree | 3 |
| Pole Contact Composition | 3 NO |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Auxiliary Contacts Type | mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1 |
| Ip Degree of Protection | IP20 front face IEC 60529 |
| Poles Description | 3P |
| Utilisation Category | AC-3, AC-1, AC-4, AC-3e |
| Rated Breaking Capacity | 550 A at 440 V for power circuit conforming to IEC 60947 |
| Overvoltage Category | III |
| Permissible Ambient Air Temperature Around The Device | -40-60°C, 60-70°C with derating |
| Non-Overlap Time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Tightening Torque | control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5, control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5, power circuit 2.5 N.m lugs-ring terminals flat Ø 8 mm M4, power circuit 2.5 N.m lugs-ring terminals Philips No 2 M4, control circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 2.5 N.m screw clamp terminals pozidriv No 2 |
| Insulation Resistance | > 10 MOhm for signalling circuit |
| Product or Component Type | contactor |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60°C) for signalling circuit, 50 A (at 60°C) for power circuit |
| [Ie] Rated Operational Current | 32 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 50 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 32 A (at <60°C) at <= 440 V AC AC-3e for power circuit |
| [Ui] Rated Insulation Voltage | power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL |
| Mounting Support | Rail, Plate |
| Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C), 7-7 VA 50 Hz cos phi 0.3 (at 20°C) |
| Device Short Name | LC1D |
| Fire Resistance | 850°C IEC 60695-2-1 |
| [Uc] Control Circuit Voltage | 24 V AC 50/60 Hz |
| Compatibility Code | LC1D |
| Power Dissipation Per Pole | 2 W AC-3, 5 W AC-1, 2 W AC-3e |
| Climatic Withstand | IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat |
| Range of Product | TeSys Deca |
| Mechanical Durability | 15 Mcycles |
| Protective Treatment | THIEC 60068-2-30 |
| Heat Dissipation | 2-3 W at 50/60 Hz |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Control Circuit Type | AC 50/60 Hz |
| Minimum Switching Voltage | 17 V for signalling circuit |
| [Icw] Rated Short-Time Withstand Current | 260 A 40°C - 10 s for power circuit, 430 A 40°C - 1 s for power circuit, 60 A 40°C - 10 min for power circuit, 138 A 40°C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit |
| Signalling Circuit Frequency | 25...400 Hz |
| Maximum Operating Rate | 3600 cyc/h 60°C |
| Control Circuit Voltage Limits | 0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz, 0.8...1.1 Uc -40-60°C operational AC 50 Hz, 0.85...1.1 Uc -40-60°C operational AC 60 Hz, 1...1.1 Uc 60-70°C operational AC 50/60 Hz |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Contactor Application | Motor control Resistive load |
| Connections - Terminals | control circuit: lugs-ring terminals - external diameter: 8 mm, power circuit: lugs-ring terminals - external diameter: 10 mm |
| Protective Cover | With |
| Coil Technology | Without built-in suppressor module |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 63 A gG at <= 690 V coordination type 1 for power circuit, 63 A gG at <= 690 V coordination type 2 for power circuit |
| Maximum Horse Power Rating | 2 hp at 115 V AC 50/60 Hz for 1 phase motors, 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 10 hp at 200/208 V AC 50/60 Hz for 3 phase motors, 10 hp at 230/240 V AC 50/60 Hz for 3 phase motors, 20 hp at 460/480 V AC 50/60 Hz for 3 phase motors, 25 hp at 575/600 V AC 50/60 Hz for 3 phase motors |
| Flame Retardance | V1 conforming to UL 94 |
| Mechanical Robustness | vibrations contactor open 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz) , shocks contactor closed 15 Gn for 11 ms) , shocks contactor open 8 Gn for 11 ms) |
| Inrush Power In Va | 70-70 VA 60 Hz cos phi 0.75 (at 20°C), 70-70 VA 50 Hz cos phi 0.75 (at 20°C) |
| Irms Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 550 A at 440 V for power circuit conforming to IEC 60947 |
| Electrical Durability | 1.65 Mcycles 32 A AC-3 <= 440 V, 1.4 Mcycles 50 A AC-1 <= 440 V, 1.65 Mcycles 25 A AC-3e <= 440 V |
| Electrical Connection | Lugs-Ring Terminals |
| Rated Short-Time Withstand Current | 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Mounts On | Plate, Rail |
| Watts Loss | 2 to 3W |
| Includes Protective Cover | Yes |
| Max. Temperature | 850°C |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Impedance | 2 mOhm |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Inrush VA | 70 VA |
| Rated Insulation Volts | 600/690V |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Rated Voltage | 690V AC, 300V DC |
| Max. Operating Watts | 7.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 15 kW (at 380 to 400V AC 50/60 Hz AC-3), 15 kW (at 415 to 440V AC 50/60 Hz AC-3), 18.5 kW (at 500V AC 50/60 Hz AC-3), 18.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 7.5 kW (at 400V AC 50/60 Hz AC-4), 7.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 15 kW (at 380 to 400V AC 50/60 Hz AC-3e), 15 kW (at 415 to 440V AC 50/60 Hz AC-3e), 18.5 kW (at 500V AC 50/60 Hz AC-3e), 18.5 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Net Weight | 0.375 kg |
| Working Height | Up to 9,842.52 ft |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Fire Rating | UL 94 V1 |
| Switching Current | 5 mA (Signalling Circuit) |
| IP Rating | IP20 |
| Operating Speed | 3600 cycles per hr |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Impulse Withstand Voltage | 6 kV |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Package Quantity | 1 |
