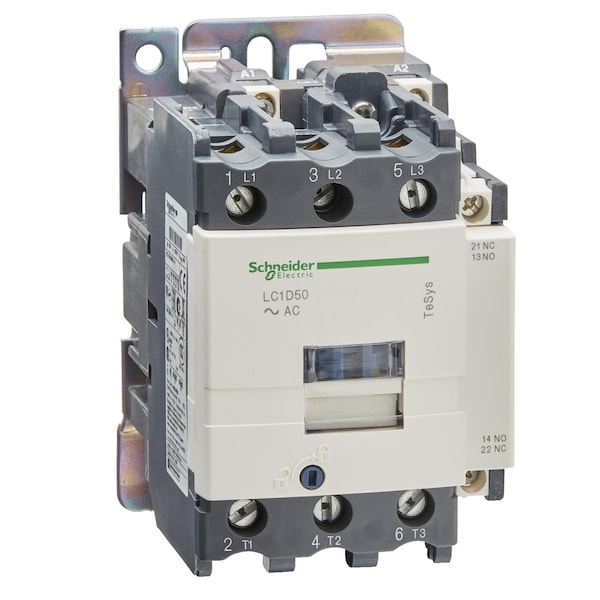

Contactor magnético IEC, 3 polos, 24 V CA, 50 A.
| Full Load Amps-Inductive | 50 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 24 V AC |
| HP @ 1 Phase - 240V | 10 hp |
| Height | 122 mm |
| HP @ 3 Phase - 208V | 15 hp |
| Width | 55 mm |
| Depth | 120 mm |
| HP @ 3 Phase - 240V | 15 hp |
| HP @ 3 Phase - 575V | 40 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | EN 60947-5-1, UL 508, IEC 60947-4-1, IEC 60947-5-1, GOST, GL, DNV, LROS, CCC, RINA, BV, UKCA, UL |
| Series | LC1D |
| Features | Without Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Application | Resistive Load |
| Overvoltage Category | CAT III |
| Impulse Withstand Voltage | 6 kV |
| Max. Operating Watts | 30 kW (at 440V AC 50 Hz) AC-3), 30 kW (at 500V AC 50 Hz AC-3), 33 kW (at 660 to 690V AC 50 Hz AC-3), 15 kW (at 220 to 230V AC 50 Hz AC-3), 11 kW (at 400V AC 50 Hz AC-4), 30 kW (at 1000V AC 50 Hz AC-3), 22 kW (at 380 to 400V AC 50 Hz AC-3e), 25 kW(at 415V AC 50 Hz AC-3e), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 500V AC 50 Hz AC-3e), 33 kW (at 660 to 690V AC 50 Hz AC-3e), 15 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 1000V AC 50 Hz AC-3e), 30 kW (at 380 to 400V AC 50 Hz AC-3) |
| Switching Current | 5 mA (Control Circuit) |
| IP Rating | IP2X |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 Nm (Power Circuit) |
| Mounts On | Plate, Rail |
| Mechanical Durability | 6 Mcycles |
| Thermal Amperage | 10 A (at 60°C Control Circuit), 80 A (at 60°C Power Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| Rated Voltage | 690V AC |
| Hold VA | 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C) |
| Working Height | Up to 9,842.52 ft |
| Insulation Resistance Range | Greater Than 10 Mohms (Control Circuit) |
| Operating Time | 4 to 19 ms (Opening), 12 to 26 ms (Closing) |
| Inrush VA | 140 VA (at 20°C), 160 VA (at 20°C) |
| Switching Voltage | 17 V (Control Circuit) |
| Rated Making Capacity | 1000 A @ 440V (Power Circuit), 140 A (AC Control Circuit) |
| Operating Speed | 3600 cycles per hr |
| Includes Protective Cover | Yes |
| Fuse Amps | 100 A (Type 2 Power Circuit), 10 A (Control Circuit), 125 A (Type 1 Power Circuit) |
| Watts Loss | 4 to 5W |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Net Weight | 1.4 kg |
| Non-Overlap Time | 1.5 msec |
| Shock Resistance | 10 G for 11 ms (Contactor Open) |
| Fire Rating | UL 94 V1 |
| Rated Breaking Capacity | 1000 A @ 440V |
| Control Circuit Voltage Limits | Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz) |
| Rated Insulation Volts | 600/690V |
| Max. Temperature | 850°C |
| Electrical Connection | Screw Clamp Terminals |
| Rated Insulation Voltage | Power circuit 600 V CSA; Power circuit 600 V UL; Control circuit 690 V IEC 60947-1; Power circuit 690 V IEC 60947-1; Control circuit 600 V CSA; Control circuit 600 V UL |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Associated Fuse Rating | 100 A gG at Less than or Equal to 690 V coordination type 2 for power circuit; 10 A gG for control circuit conforming to IEC 60947-5-1; 125 A gG at Less than or Equal to 690 V coordination type 1 for power circuit |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for control circuit; 80 A (at 140°F (60°C)) for power circuit |
| Pole Contact Composition | 3 NO |
| Minimum Switching Voltage | 17 V for control circuit |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Motor Power KW | 30 kW at 440 V AC 50 Hz (AC-3); 30 kW at 500 V AC 50 Hz (AC-3); 33 kW at 660 to 690 V AC 50 Hz (AC-3); 15 kW at 220 to 230 V AC 50 Hz (AC-3); 11 kW at 400 V AC 50 Hz (AC-4); 30 kW at 1000 V AC 50 Hz (AC-3); 22 kW at 380 to 400 V AC 50 Hz (AC-3e); 25 kW at 415 V AC 50 Hz (AC-3e); 30 kW at 440 V AC 50 Hz (AC-3e); 30 kW at 500 V AC 50 Hz (AC-3e); 33 kW at 660 to 690 V AC 50 Hz (AC-3e); 15 kW at 220 to 230 V AC 50 Hz (AC-3e); 30 kW at 1000 V AC 50 Hz (AC-3e); 30 kW at 380 to 400 V AC 50 Hz (AC-3) |
| Power Dissipation Per Pole | 3.7 W AC-3e; 9.6 W AC-1; 6.3 W AC-3 |
| Climatic Withstand | IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Rated Operational Current | 50 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit; 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 65 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit |
| Product Certifications | GOST; GL; DNV; LROS (Lloyds register of shipping); CCC; RINA; BV; UKCA; UL |
| Heat Dissipation | 4 to 5 W at 50/60 Hz for control circuit |
| IRMS Rated Making Capacity | 1000 A at 440 V for power circuit conforming to IEC 60947; 140 A AC for control circuit conforming to IEC 60947-5-1 |
| Insulation Resistance | Greater than 10 MOhm for control circuit |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz |
| Utilisation Category | AC-1; AC-2; AC-3e; AC-1 |
| Control Circuit Voltage | 120 V AC 50/60 Hz |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Coil Technology | Without built-in bidirectional peak limiting diode suppressor |
| Inrush Power in VA | 140 VA cos phi 0.75 (at 68°F (20°C)); 160 VA cos phi 0.75 (at 68°F (20°C)) |
| Mechanical Robustness | Vibrations contactor opened 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor opened 10 Gn for 11 ms) |
| Hold-In Power Consumption in VA | 13 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 15 VA 50 Hz cos phi 0.3 (at 68°F (20°C)) |
| Mounting Support | Rail |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Protective Cover | With |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Control Circuit Type | AC 50/60 Hz |
| Flame Retardance | V1 conforming to UL 94 |
| Product Or Component Type | Contactor |
| Connections - Terminals | Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Power circuit: screw terminals 1 0.00 to 0.04 in² (2.5 to 25 mm²) - cable stiffness: rigid; Power circuit: screw terminals 2 0.00 to 0.02 in² (2.5 to 16 mm²) - cable stiffness: rigid; Power circuit: screw terminals 1 0.00 to 0.04 in² (2.5 to 25 mm²) - cable stiffness: flexible without cable end; Power circuit: screw terminals 2 0.00 to 0.02 in² (2.5 to 16 mm²) - cable stiffness: flexible without cable end; Power circuit: screw terminals 1 0.00 to 0.04 in² (2.5 to 25 mm²) - cable stiffness: flexible with cable end; Power circuit: screw terminals 2 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: rigid; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: rigid |
| Poles Description | 3P |
| IP Degree Of Protection | IP2X IEC 60529; IP2X VDE 0106 |
| Minimum Switching Current | 5 mA (for control circuit) |
| Maximum Horse Power Rating | 15 hp at 200/208 V AC 60 Hz for 3 phase motors; 15 hp at 230/240 V AC 60 Hz for 3 phase motors; 40 hp at 460/480 V AC 60 Hz for 3 phase motors; 40 hp at 575/600 V AC 60 Hz for 3 phase motors; 5 hp at 115 V AC 60 Hz for 1 phase motors; 10 hp at 230/240 V AC 60 Hz for 1 phase motors |
| Package Quantity | 1 |
