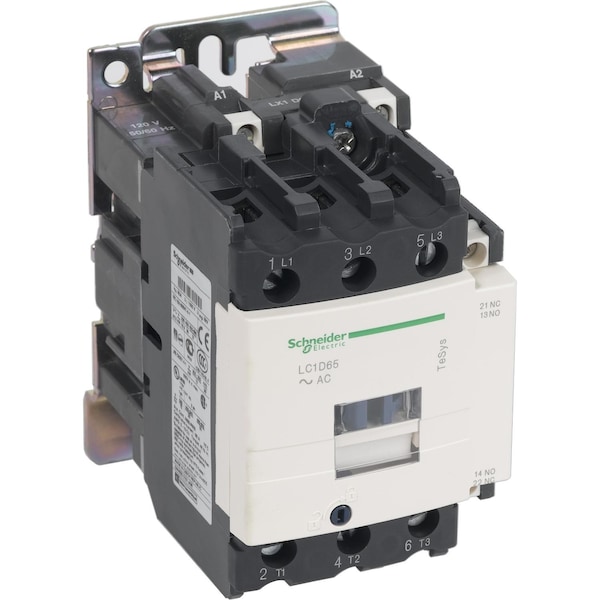

Contacto magnético IEC, 3 polos, 24 V CA, 65 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 65 A |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 24 V AC |
| HP @ 1 Phase - 240V | 10 hp |
| Height | 122 mm |
| HP @ 3 Phase - 208V | 20 hp |
| Width | 70 mm |
| HP @ 3 Phase - 575V | 50 hp |
| Depth | 118 mm |
| HP @ 3 Phase - 240V | 20 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | UL 508, EN 60947-5-1, EN 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14, UL, CCC, BV, GL, GOST, RINA, LROS, DNV, UKCA, TH IEC 60068-2-30 |
| Series | LC1D |
| Application | Motor Control, Resistive Load |
| Operating Speed | 3600 cycles per min |
| Rated Voltage | 690V AC |
| Fire Rating | UL 94 V1 |
| Impedance | 1.5 Ohm |
| Rated Breaking Capacity | 1000 kA @ 440V |
| IP Rating | IP2X |
| Operating Time | 12 to 26 ms (Closing), 4 to 19 ms (Opening) |
| Rated Making Capacity | 140 A @ 440V (AC Control Circuit), 1000 A @ 440V (Power Circuit) |
| Non-Overlap Time | 1.5 msec |
| Hold VA | 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C) |
| Working Height | Up to 9,842.52 ft |
| Fuse Amps | 125 A (Type 2 Power Circuit), 160 A (Type 1 Power Circuit), 10 A (Control Circuit) |
| Rated Insulation Volts | 600/690V |
| Inrush VA | 140 to 160 VA |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| Insulation Resistance Range | Greater Than 10 Mohms (Control Circuit) |
| Max. Operating Watts | 11 kW (at 400V AC 50 Hz AC-4), 30 kW (at 380 to 400V AC 50 Hz AC-3), 37 kW (at 500V AC 50 Hz AC-3), 37 kW (at 660 to 690V AC 50 Hz AC-3), 18.5 kW (at 220 to 230V AC 50 Hz AC-3), 30 kW (at 415V AC 50 Hz AC-3), 37 kW (at 1000V AC 50 Hz AC-3), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 380 to 400V AC 50 Hz AC-3e), 37 kW (at 500V AC 50 Hz AC-3e), 37 kW (at 660 to 690V AC 50 Hz AC-3e), 18.5 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 415V AC 50 Hz AC-3e), 37 kW (at 1000V AC 50 Hz AC-3e), 37 kW (at 500V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz) |
| Watts Loss | 4 to 5W |
| Mechanical Durability | 6 Mcycles |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Impulse Withstand Voltage | 6 kV |
| Includes Protective Cover | Yes |
| Mounts On | Plate, Rail |
| Control Circuit Voltage Limits | Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz), Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz) |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 Nm (Power Circuit) |
| Electrical Connection | Screw Clamp Terminals |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Switching Current | 5 mA (Control Circuit) |
| Overvoltage Category | CAT III |
| Net Weight | 2.185 kg |
| Switching Voltage | 17 V (Control Circuit) |
| Rated Short-Time Withstand Current | 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit) |
| Max. Temperature | 850°C |
| Thermal Amperage | 80 A (at 60°C Power Circuit), 10 A (at 60°C Control Circuit) |
| Control Circuit Type | AC 50/60 Hz |
| Flame Retardance | V1 conforming to UL 94 |
| Heat Dissipation | 4-5 W at 50/60 Hz for control circuit |
| Hold-In Power Consumption In Va | 15-15 VA 50 Hz cos phi 0.3 (at 20°C), 13-13 VA 60 Hz cos phi 0.3 (at 20°C) |
| Minimum Switching Voltage | 17 V for control circuit |
| Mechanical Robustness | shocks contactor closed 15 Gn for 11 ms) , vibrations contactor opened 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz) , shocks contactor opened 10 Gn for 11 ms) |
| Maximum Operating Rate | 3600 cyc/mn 60°C |
| [Ui] Rated Insulation Voltage | control circuit 600 V UL, power circuit 600 V CSA, power circuit 600 V UL IEC 60947-1, control circuit 690 V IEC 60947-1, power circuit 690 V CSA IEC 60947-1, control circuit 600 V CSA |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Protective Treatment | TH 3IEC 60068-2-30 |
| Utilisation Category | AC-4, AC-1, AC-2, AC-3e |
| Poles Description | 3P |
| Climatic Withstand | IACS E10 exposure to damp heat |
| Maximum Horse Power Rating | 10 hp at 230/240 V AC 60 Hz for 1 phase motors, 20 hp at 200/208 V AC 60 Hz for 3 phase motors, 20 hp at 230/240 V AC 60 Hz for 3 phase motors, 40 hp at 460/480 V AC 60 Hz for 3 phase motors, 50 hp at 575/600 V AC 60 Hz for 3 phase motors, 5 hp at 115 V AC 60 Hz for 1 phase motors |
| Contactor Application | Resistive load |
| Protective Cover | With |
| Auxiliary Contacts Type | Mirror contact 1 NC IEC 60947-4-1; Mechanically linked 1 NO + 1 NC IEC 60947-5-1 |
| Coil Technology | without built-in |
| Pole Contact Composition | 3 NO |
| Motor Power Kw | 11 kW at 400 V AC 50 Hz (AC-4), 30 kW at 380...400 V AC 50 Hz (AC-3), 37 kW at 500 V AC 50 Hz (AC-3), 37 kW at 660...690 V AC 50 Hz (AC-3), 18.5 kW at 220...230 V AC 50 Hz (AC-3), 30 kW at 415 V AC 50 Hz (AC-3), 37 kW at 1000 V AC 50 Hz (AC-3), 30 kW at 440 V AC 50 Hz (AC-3e), 30 kW at 380...400 V AC 50 Hz (AC-3e), 37 kW at 500 V AC 50 Hz (AC-3e), 37 kW at 660...690 V AC 50 Hz (AC-3e), 18.5 kW at 220...230 V AC 50 Hz (AC-3e), 30 kW at 415 V AC 50 Hz (AC-3e), 37 kW at 1000 V AC 50 Hz (AC-3e), 37 kW at 500 V AC 50 Hz, 30 kW at 380...400 V AC 50 Hz |
| Associated Fuse Rating | 125 A gG at <= 690 V coordination type 2 for power circuit, 160 A gG at <= 690 V coordination type 1 for power circuit conforming to IEC 60947-5-1, 125 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for control circuit conforming to IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Range | TeSys |
| Minimum Switching Current | 5 mA (for control circuit) |
| [Uc] Control Circuit Voltage | 24 V AC 50/60 Hz |
| Range of Product | TeSys Deca |
| Irms Rated Making Capacity | 140 A at 440 V AC for control circuit conforming to IEC 60947-5-1, 140 A AC for control circuit conforming to IEC 60947-5-1, 1000 A at 440 V for power circuit conforming to IEC 60947 |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hz |
| Ip Degree of Protection | IP2X VDE 0106, IP2X IEC 60529 |
| [Icw] Rated Short-Time Withstand Current | 520 A 40°C - 10 s for power circuit, 900 A 40°C - 1 s for power circuit |
| [Ie] Rated Operational Current | 65 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 65 A (at <60°C) at <= 440 V AC AC-3e for power circuit, 65 A (at <60°C) at 24 V AC AC-3 for power circuit, 80 A (at <60°C) at 24 V AC AC-1 for power circuit |
| Inrush Power In Va | 160-160 VA cos phi 0.75 (at 20°C), 140-140 VA cos phi 0.75 (at 20°C) |
| Connections - Terminals | control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: rigid, power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: rigid without cable end, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end, power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end, power circuit: screw terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Product or Component Type | contactor |
| Power Dissipation Per Pole | 6.4 W AC-1, 4.2 W AC-3e, 6.3 W AC-3, 9.6 W AC-1 |
| Insulation Resistance | > 10 MOhm (for control circuit) |
| Mounting Support | Rail |
| Average Impedance | 1.5 Ohm - Ith 80 A 50 Hz for power circuit |
| [Ith] Conventional Free Air Thermal Current | 80 A (at 60°C) for power circuit, 10 A (at 60°C) for control circuit |
| Fire Resistance | 850°C IEC 60695-2-1 |
| Package Quantity | 1 |
