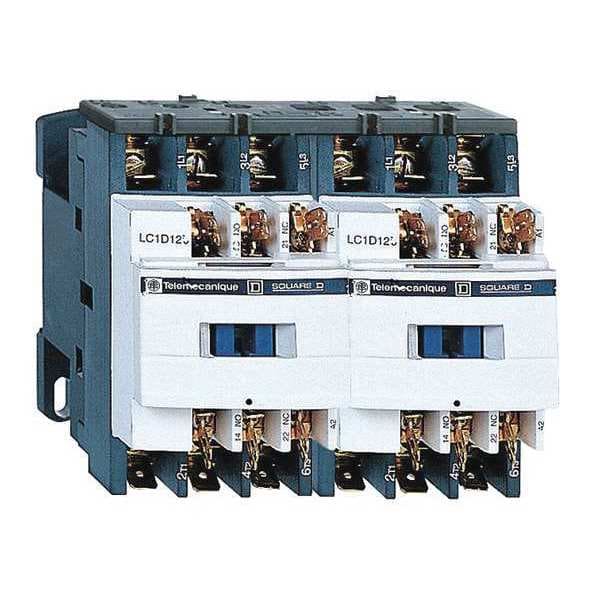

Contactador magnético IEC, 3 polos, 24 V CA, 9 A, Reversión: Sí
| Full Load Amps-Inductive | 9 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Reversing |
| Full Load Amps-Resistive | 25 A |
| Number of Poles | 3 |
| Coil Volts | 24 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 1/2 hp |
| HP @ 1 Phase - 240V | 1 hp |
| Height | 3.03 in |
| HP @ 3 Phase - 208V | 2 hp |
| Width | 3.54 in |
| Depth | 3.39 in |
| HP @ 3 Phase - 240V | 5 hp |
| HP @ 3 Phase - 575V | 7 1/2 hp |
| HP @ 3 Phase - 480V | 5 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| NEMA Size | Not Applicable |
| Series | TeSys Deca |
| Frame / Series / Class / Code | TeSys |
| Auxiliary Contact Form | 1NO/1NC |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| Switching Voltage | 17 V (Signalling Circuit) |
| Net Weight | 0.687 kg |
| Watts Loss | 2 to 3W |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit) |
| Rated Insulation Volts | 600/690V |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Inrush VA | 70 VA |
| Electrical Durability | 0.6 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (9 A, AC-3, Less than 440 V) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Max. Operating Watts | 2.2 kW (at 220 to 230V AC 50 Hz), 4 kW (at 380 to 400V AC 50 Hz), 4 kW (at 415 to 440V AC 50 Hz), 5.5 kW (at 500V AC 50 Hz), 5.5 kW (at 660 to 690V AC 50 Hz) |
| Rated Voltage | 690V AC, 300V DC |
| Rated Making Capacity | 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Rated Breaking Capacity | 250 A @ 440V |
| Fire Rating | UL 94 V1 |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Non-Overlap Time | 1.5 msec |
| Max. Temperature | 850°C |
| Includes Protective Cover | Yes |
| Fuse Amps | 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit), 10 A (Signalling Circuit) |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Switching Current | 5 mA (Signalling Circuit) |
| Mounts On | Plate, Rail |
| IP Rating | IP20 |
| Impulse Withstand Voltage | 6 kV |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Mechanical Durability | 15 Mcycles |
| Impedance | 2.5 mOhm |
| Electrical Connection | Faston Terminals |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Operating Speed | 3600 cycles per hr |
| Application | Motor Control, Resistive Load |
| Rated Short-Time Withstand Current | 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Overvoltage Category | CAT III |
| Working Height | Up to 9,842.52 ft |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit) |
| NEMA Enclosure Rating | No Enclosure |
| Number of Normally Open Main Contacts | 3 |
| Overall Height | 3.03 in |
| Full Load Current - Inductive | 9 A |
| Overall Width | 3.54 in |
| Mechanical Operating Durability | 15,000,000 |
| Horsepower @ Three Phase - 600V AC | 7.5 HP |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Electrical Operating Durability | 2,000,000, 600,000 |
| Number of Auxillary Contacts | 2 |
| Maximum Operating Temperature | 140 deg F |
| Embedded Surge Suppressor | No |
| Maximum Voltage Rating | 690 V AC |
| Horsepower @ Single Phase - 120V AC | 0.5 HP |
| NEMA Enclosure Material | Not Applicable |
| Frequency | 50/60 Hz |
| Full Load Current - Resistive | 25 A |
| Reversing Capability | Reversing |
| Mounting Style | DIN Rail, Plate |
| Includes Auxiliary Contacts | Yes |
| Contactor Style | IEC |
| Horsepower @ Three Phase - 240V AC | 2 HP |
| Terminal Connection Type | Quick-Disconnect Terminals |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Overall Depth | 3.39 in |
| Coil Voltage | 24V AC |
| Horsepower @ Three Phase - 208V AC | 2 HP |
| Minimum Operating Temperature | -40 deg F |
| Utilisation Category | AC-3; AC-1 |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Rated Short Time Withstand Current | 30 A 104°F (40°C) - 10 min for power circuit; 61 A 104°F (40°C) - 1 min for power circuit; 105 A 104°F (40°C) - 10 s for power circuit; 210 A 104°F (40°C) - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 25 A (at 140°F (60°C)) for power circuit |
| Hold-In Power Consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 7 VA 50 Hz cos phi 0.3 (at 68°F (20°C)) |
| Ambient Air Temperature For Storage | -76 to 176°F |
| Power Pole Contact Composition | 3 NO |
| Rated Insulation Voltage | Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| Front Cover | With |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Coil Technology | Without built-in suppressor module |
| IRMS Rated Making Capacity | 250 A at 440 V for power circuit conforming to IEC 60947; 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated Operational Current | 9 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 25 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Protective Treatment | THIEC 60068-2-30 |
| Climatic Withstand | IACS E10; IEC 60947-1 Annex Q category D |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Interlocking Type | Mechanical |
| Control Circuit Type | AC 50/60 Hz |
| Power Dissipation Per Pole | 0.2 W AC-3; 1.56 W AC-1 |
| Pollution Degree | 3 |
| Ambient Air Temperature For Operation | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Motor Power HP | 0.5 hp at 115 V AC 60 Hz for 1 phase motors; 1 hp at 230/240 V AC 60 Hz for 1 phase motors; 2 hp at 200/208 V AC 60 Hz for 3 phase motors; 2 hp at 230/240 V AC 60 Hz for 3 phase motors; 5 hp at 460/480 V AC 60 Hz for 3 phase motors; 7.5 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Flame Retardance | V1 conforming to UL 94 |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Motor Power KW | 2.2 kW at 220 to 230 V AC 50 Hz; 4 kW at 380 to 400 V AC 50 Hz; 4 kW at 415 to 440 V AC 50 Hz; 5.5 kW at 500 V AC 50 Hz; 5.5 kW at 660 to 690 V AC 50 Hz |
| Product Name | TeSys, TeSys D Deca |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Device Presentation | Preassembled with reversing power busbar |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Inrush Power in VA | 70 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 70 VA 50 Hz cos phi 0.75 (at 68°F (20°C)) |
| Connections - Terminals | Power circuit Faston terminals 2; Control circuit Faston terminals 1 |
| Product Certifications | DNV; CSA; CCC; UL; GL; LROS (Lloyds register of shipping); BV; RINA; GOST; UKCA |
| Heat Dissipation | 2 to 3 W 50/60 Hz |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Product Or Component Type | Reversing contactor |
| Contactor Application | Motor control Resistive load |
| Control Circuit Voltage | 24 V AC 50/60 Hz |
| Mechanical Robustness | Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms |
| Poles Description | 3P |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Associated Fuse Rating | 25 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 20 A gG at Less than or Equal to 690 V coordination type 2 for power circuit; 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| Mounting Support | Rail, Plate |
| Package Quantity | 1 |
