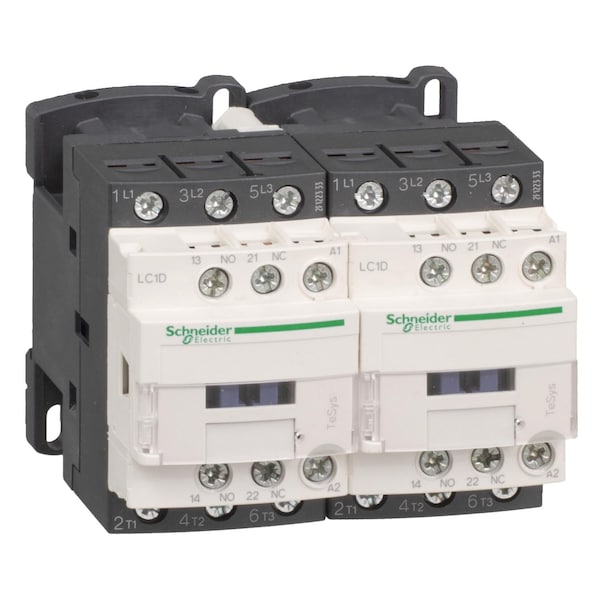

Contactador magnético IEC, 3 polos, 24 V CC, 12 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 12 A |
| Action | Reversing |
| Full Load Amps-Resistive | 25 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| HP @ 1 Phase - 240V | 2 hp |
| Height | 77 mm |
| Width | 90 mm |
| HP @ 3 Phase - 208V | 3 hp |
| Depth | 95 mm |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 480V | 7 1/2 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30 |
| Series | LC2D |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar |
| Application | Motor Control, Resistive Load |
| Mechanical Durability | 30 Mcycles |
| Fuse Amps | 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit) |
| Control Circuit Voltage Limits | Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C), Operational DC: 0.8 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C) |
| Max. Operating Watts | 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz) |
| Overvoltage Category | CAT III |
| Includes Protective Cover | Yes |
| Rated Breaking Capacity | 250 A @ 440V |
| Working Height | Up to 9,842.52 ft |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Making Capacity | 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Impedance | 2.5 mOhm |
| Rated Insulation Volts | 600/690V |
| Impulse Withstand Voltage | 6 kV |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Electrical Durability | 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V) |
| Net Weight | 1.027 kg |
| Non-Overlap Time | 1.5 msec |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit) |
| Fire Rating | UL 94 V1 |
| Rated Voltage | 690V AC, 300V DC |
| Rated Short-Time Withstand Current | 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Pollution Degree 3 |
| Operating Time | 65.45 to 88.55 ms (Closing), 20 to 30 ms (Opening) |
| Operating Speed | 3600 cycles per hr |
| Electrical Connection | Screw Clamp Terminals |
| IP Rating | IP20 |
| Max. Temperature | 850°C |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Mounts On | Plate, Rail |
| Package Quantity | 1 |
