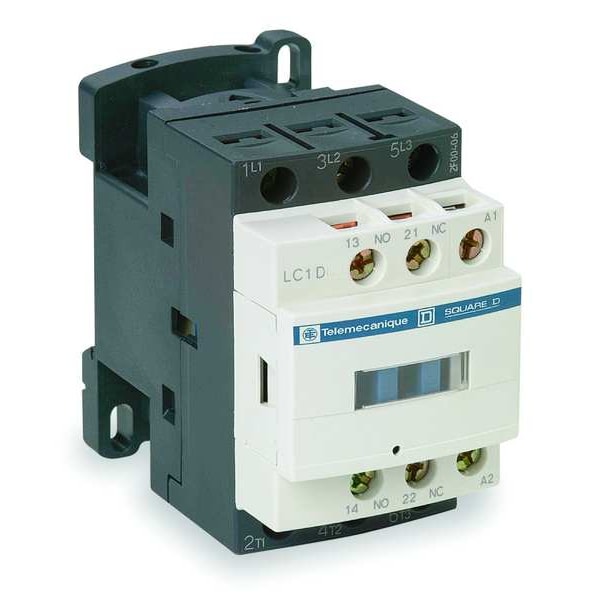

Contactador magnético IEC, 3 polos, 24 V DC, 25 A, Reversión: No
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 25 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | No |
| HP @ 1 Phase - 230V | 3 |
| HP @ 1 Phase - 120V | 2 hp |
| Height | 3.7 in |
| HP @ 1 Phase - 240V | 3 hp |
| Width | 3.7 in |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 20 hp |
| Depth | 4.6 in |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 20 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO/1NC |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| NEMA Size | Not Applicable |
| Series | TeSys Deca |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit) |
| Non-Overlap Time | 1.5 msec |
| Rated Insulation Volts | 600/690V |
| Max. Operating Watts | 5.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 11 kW (at 380 to 400V AC 50/60 Hz AC-3), 11 kW (at 415 to 440V AC 50/60 Hz AC-3), 15 kW (at 500V AC 50/60 Hz AC-3), 15 kW (at 660 to 690V AC 50/60 Hz AC-3), 5.5 kW (at 400V AC 50/60 Hz AC-4), 5.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 11 kW (at 380 to 400V AC 50/60 Hz AC-3e), 11 kW (at 415 to 440V AC 50/60 Hz AC-3e), 15 kW (at 500V AC 50/60 Hz AC-3e), 15 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit) |
| Max. Temperature | 850°C |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Mechanical Durability | 30 Mcycles |
| Mounts On | Plate, Rail |
| Rated Breaking Capacity | 450 A @ 440V |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Short-Time Withstand Current | 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Rated Voltage | 690V AC, 300V DC |
| Fire Rating | UL 94 V1 |
| Includes Protective Cover | Yes |
| Operating Time | 65.45 to 88.55 ms (Closing), 20 to 30 ms (Opening) |
| Overvoltage Category | CAT III |
| Electrical Connection | Screw Clamp Terminals |
| Operating Speed | 3600 cycles per hr |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit) |
| Impedance | 2 mOhm |
| Switching Voltage | 17 V (Signalling Circuit) |
| Electrical Durability | 1.65 Mcycles (25 A, AC-3, Less than 440 V); 1.4 Mcycles (40 A, AC-1, Less than 440 V); 1.65 Mcycles (25 A, AC-3e, Less than 440 V) |
| IP Rating | IP20 |
| Working Height | Up to 9,842.52 ft |
| Application | Motor Control, Resistive Load |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Net Weight | 0.53 kg |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit) |
| Impulse Withstand Voltage | 6 kV |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Control Circuit Voltage Limits | Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C), Operational DC: 0.8 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C) |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Height | 3.35 in |
| Contactor Style | IEC |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Full Load Current - Inductive | 25 A |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 600V AC | 20 HP |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Electrical Operating Durability | 1,400,000, 1,650,000 |
| Phase | Three |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Full Load Current - Resistive | 40 A |
| Coil Voltage | 24V DC |
| Number of Auxillary Contacts | 2 |
| Includes Auxiliary Contacts | Yes |
| Overall Width | 1.77 in |
| Number of Normally Open Main Contacts | 3 |
| NEMA Enclosure Rating | No Enclosure |
| Mechanical Operating Durability | 30,000,000 |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| NEMA Enclosure Material | Not Applicable |
| Overall Depth | 3.98 in |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Embedded Surge Suppressor | Yes |
| Reversing Capability | Non-Reversing |
| Maximum Voltage Rating | 690 V AC |
| Mounting Style | DIN Rail, Plate |
| Rated Short Time Withstand Current | 240 A 104°F (40°C) - 10 s for power circuit; 380 A 104°F (40°C) - 1 s for power circuit; 50 A 104°F (40°C) - 10 min for power circuit; 120 A 104°F (40°C) - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Poles Description | 3P |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Rated Operational Current | 25 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 25 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Climatic Withstand | IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Mounting Support | Rail, Plate |
| Compatibility Code | LC1D |
| Flame Retardance | V1 conforming to UL 94 |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Product Or Component Type | Contactor |
| Average Impedance | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| Connections - Terminals | Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (1 to 10 mm²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 6 mm²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (1.5 to 10 mm²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: solid without cable end |
| Inrush Power in W | 2.4 W 68°F (20°C)) |
| Coil Technology | Built-in bidirectional peak limiting diode suppressor |
| Power Dissipation Per Pole | 3.2 W AC-1; 1.25 W AC-3; 1.25 W AC-3e |
| Hold-In Power Consumption in W | 2.4 W 68°F (20°C) |
| IRMS Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 450 A at 440 V for power circuit conforming to IEC 60947 |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Pollution Degree | 3 |
| Control Circuit Type | DC low consumption |
| Permissible Ambient Air Temperature Around The Device | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Motor Power KW | 5.5 kW at 220 to 230 V AC 50/60 Hz (AC-3); 11 kW at 380 to 400 V AC 50/60 Hz (AC-3); 11 kW at 415 to 440 V AC 50/60 Hz (AC-3); 15 kW at 500 V AC 50/60 Hz (AC-3); 15 kW at 660 to 690 V AC 50/60 Hz (AC-3); 5.5 kW at 400 V AC 50/60 Hz (AC-4); 5.5 kW at 220 to 230 V AC 50/60 Hz (AC-3e); 11 kW at 380 to 400 V AC 50/60 Hz (AC-3e); 11 kW at 415 to 440 V AC 50/60 Hz (AC-3e); 15 kW at 500 V AC 50/60 Hz (AC-3e); 15 kW at 660 to 690 V AC 50/60 Hz (AC-3e) |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Time Constant | 40 msec |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 40 A (at 140°F (60°C)) for power circuit |
| Contactor Application | Motor control Resistive load |
| Mechanical Robustness | Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 8 Gn for 11 ms) |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Protective Cover | With |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 63 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 40 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Pole Contact Composition | 3 NO |
| Product Certifications | BV; CSA; UL; LROS (Lloyds register of shipping); CCC; GOST; GL; DNV; RINA; UKCA |
| Maximum Horse Power Rating | 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors; 2 hp at 115 V AC 50/60 Hz for 1 phase motors; 7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors; 15 hp at 460/480 V AC 50/60 Hz for 3 phase motors; 20 hp at 575/600 V AC 50/60 Hz for 3 phase motors; 7.5 hp at 200/208 V AC 50/60 Hz for 3 phase motors |
| Utilisation Category | AC-4; AC-3; AC-1; AC-3e |
| Protective Treatment | THIEC 60068-2-30 |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Contact Compatibility | M5 |
| Rated Insulation Voltage | Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| Package Quantity | 1 |
