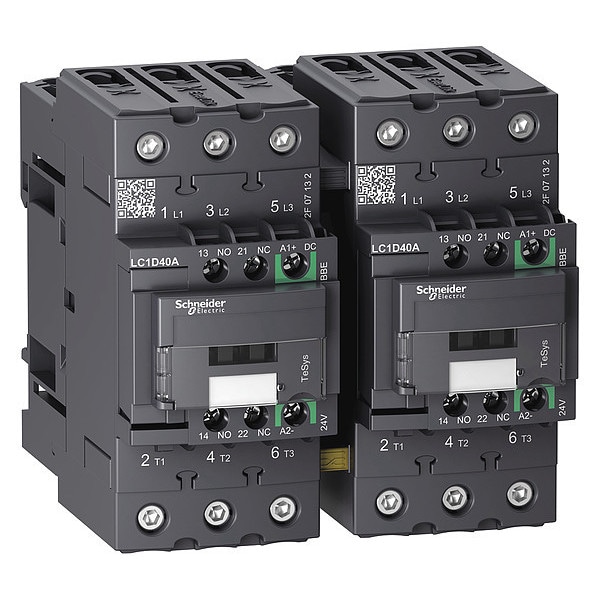

Contacto magnético IEC, 3 polos, 24 V CC, 40 A, Reversión: Sí.
| Full Load Amps-Inductive | 40 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 60 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 3 hp |
| Height | 4.8 in |
| HP @ 1 Phase - 240V | 5 hp |
| Width | 4.69 in |
| HP @ 3 Phase - 208V | 10 hp |
| Depth | 4.72 in |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 575V | 30 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 30 hp |
| Frame / Series / Class / Code | TeSys |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Hz | 50/60 |
| NEMA Size | Not Applicable |
| Series | TeSys Deca |
| Auxiliary Contact Form | 1NO/1NC |
| IP Rating | IP20 |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Coil Voltage | 24V DC |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Reversing Capability | Reversing |
| Number of Auxillary Contacts | 2 |
| Mechanical Operating Durability | 6,000,000 |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Frequency | 50/60 Hz |
| Full Load Current - Resistive | 60 A |
| Mounting Style | DIN Rail, Plate |
| Overall Width | 4.69 in |
| Full Load Current - Inductive | 40 A |
| Embedded Surge Suppressor | No |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Overall Depth | 4.72 in |
| Horsepower @ Three Phase - 480V AC | 30 HP |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Horsepower @ Three Phase - 600V AC | 30 HP |
| NEMA Enclosure Rating | No Enclosure |
| NEMA Enclosure Material | Not Applicable |
| Includes Auxiliary Contacts | Yes |
| Electrical Operating Durability | 2,000,000, 700,000 |
| Minimum Operating Temperature | -40 deg F |
| Maximum Operating Temperature | 140 deg F |
| Maximum Voltage Rating | 690 V AC |
| Number of Normally Open Main Contacts | 3 |
| Overall Height | 4.8 in |
| Switching Voltage | 17 V (Signalling Circuit) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Impulse Withstand Voltage | 6 kV |
| Rated Insulation Volts | 690V |
| Fuse Amps | 10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Rated Voltage | 690V AC |
| Max. Temperature | 850°C |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit) |
| Max. Operating Watts | 11 kW (at 220 to 230V AC 50 Hz), 18.5 kW (at 380 to 400V AC 50 Hz), 22 kW (at 415V AC 50 Hz), 22 kW (at 440V AC 50 Hz), 22 kW (at 500V AC 50 Hz), 30 kW (at 660 to 690V AC 50 Hz) |
| Fire Rating | UL 94 V1 |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Impedance | 1.5 mOhm |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit) |
| Electrical Durability | 2 Mcycles (35 A, AC-3, Less than 440 V); 0.7 Mcycles (60 A, AC-1, Less than 440 V) |
| Control Circuit Voltage Limits | Drop-Out DC: Less Than 0.1 Uc (at -40 to 70°C); Operational DC: 0.8 to 1.2 Uc (at -40 to 60°C), 1 to 1.2 Uc (at 60 to 70°C) |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Operating Speed | 3600 cycles per hr |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit) |
| Net Weight | 2.154 kg |
| Watts Loss | 0.5W |
| Mounts On | Plate, Rail |
| Mechanical Durability | 6 Mcycles |
| Rated Breaking Capacity | 800 A @ 440V |
| Application | Motor Control, Resistive Load |
| Includes Protective Cover | Yes |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Switching Current | 5 mA (Signalling Circuit) |
| Working Height | Up to 9,842.52 ft |
| Overvoltage Category | CAT III |
| Non-Overlap Time | 1.5 msec |
| Package Quantity | 1 |
