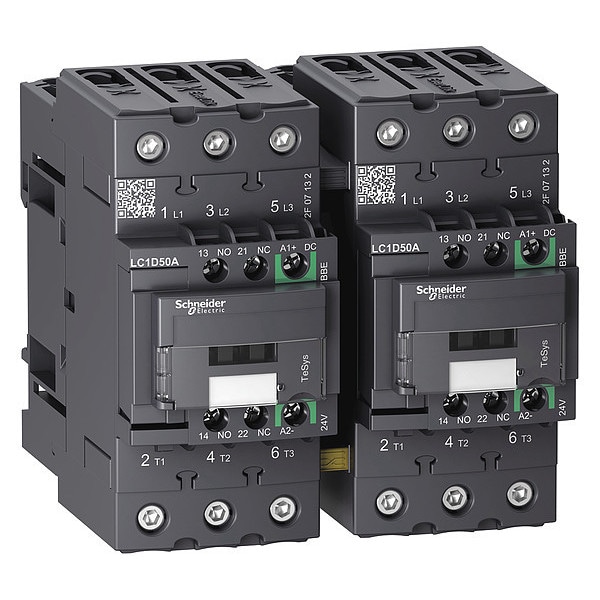

Contacto magnético IEC, 3 polos, 24 V CC, 50 A, inversión: sí.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 50 A |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Height | 4.8 in |
| HP @ 3 Phase - 208V | 15 hp |
| Width | 4.69 in |
| Depth | 4.72 in |
| HP @ 3 Phase - 240V | 15 hp |
| HP @ 3 Phase - 575V | 40 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 40 hp |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Frame / Series / Class / Code | TeSys |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 1NO/1NC |
| Series | TeSys Deca |
| IP Rating | IP20 |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Three Phase - 208V AC | 15 HP |
| Full Load Current - Resistive | 80 A |
| Embedded Surge Suppressor | No |
| Electrical Operating Durability | 1,800,000, 500,000 |
| Full Load Current - Inductive | 50 A |
| Horsepower @ Three Phase - 600V AC | 40 HP |
| NEMA Enclosure Rating | No Enclosure |
| Contactor Style | IEC |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Minimum Operating Temperature | -40 deg F |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Number of Normally Open Main Contacts | 3 |
| Coil Voltage | 24V DC |
| Includes Auxiliary Contacts | Yes |
| Mechanical Operating Durability | 6,000,000 |
| Overall Height | 4.8 in |
| Maximum Operating Temperature | 140 deg F |
| Maximum Voltage Rating | 690 V AC |
| Number of Auxillary Contacts | 2 |
| Overall Width | 4.69 in |
| Mounting Style | DIN Rail, Plate |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Overall Depth | 4.72 in |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Reversing Capability | Reversing |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Rated Breaking Capacity | 900 A @ 440V |
| Overvoltage Category | CAT III |
| Switching Current | 5 mA (Signalling Circuit) |
| Fire Rating | UL 94 V1 |
| Includes Protective Cover | Yes |
| Impulse Withstand Voltage | 6 kV |
| Working Height | Up to 9,842.52 ft |
| Net Weight | 2.164 kg |
| Control Circuit Voltage Limits | Drop-Out DC: Less Than 0.1 Uc (at -40 to 70°C); Operational DC: 0.8 to 1.2 Uc (at -40 to 60°C), 1 to 1.2 Uc (at 60 to 70°C) |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit) |
| Electrical Durability | 1.8 Mcycles (42 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V) |
| Application | Motor Control, Resistive Load |
| Rated Insulation Volts | 690V |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Watts Loss | 0.5W |
| Mechanical Durability | 6 Mcycles |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Operating Speed | 3600 cycles per hr |
| Max. Temperature | 850°C |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Impedance | 1.5 mOhm |
| Max. Operating Watts | 15 kW (at 220 to 230V AC 50 Hz), 22 kW (at 380 to 400V AC 50 Hz), 25 kW (at 415V AC 50 Hz), 30 kW (at 440V AC 50 Hz), 30 kW (at 500V AC 50 Hz), 33 kW (at 660 to 690V AC 50 Hz) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 900 A @ 440V (Power Circuit) |
| Non-Overlap Time | 1.5 msec |
| Switching Voltage | 17 V (Signalling Circuit) |
| Rated Voltage | 690V AC |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Fuse Amps | 10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit) |
| Mounts On | Plate, Rail |
| Package Quantity | 1 |
