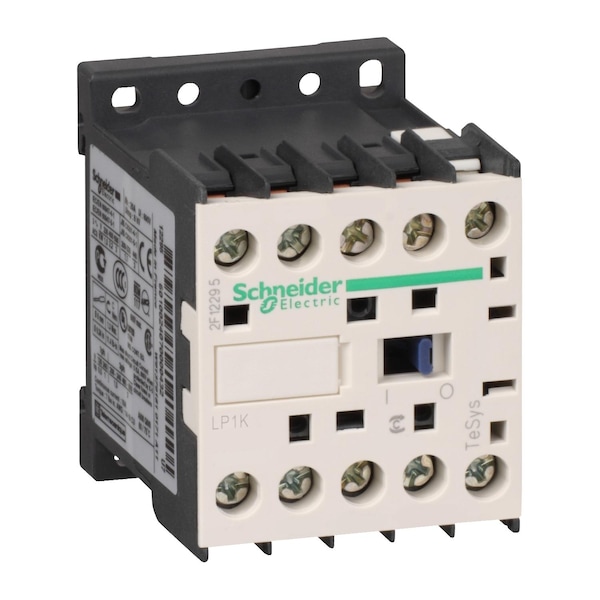

Contactador Magnético IEC, 3 Polos, 24 V CC, 6 A.
| Full Load Amps-Inductive | 6 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Depth | 57 mm |
| Aux. Contact Configuration | 1NO |
| Series | LP1K |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA |
| Application | Motor Control |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Fuse Amps | 25 A (Power Circuit), 10 A (Signalling Circuit) |
| Tightening Torque | 0.8 to 1.3 Nm |
| Net Weight | 0.225 kg |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Control Circuit Voltage Limits | Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C) |
| Rated Breaking Capacity | 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V |
| Rated Making Capacity | 110 A |
| Rated Insulation Volts | 600/690V |
| Operating Speed | 3600 cycles per hr |
| Mounts On | Plate, Rail |
| Overvoltage Category | CAT III |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Working Height | 6,561.68 ft |
| Impulse Withstand Voltage | 8 kV |
| Operating Time | 30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening) |
| Rated Voltage | 690V AC |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Thermal Amperage | 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit) |
| Switching Current | 5 mA (Signalling Circuit) |
| Impedance | 3 mOhm |
| Mechanical Durability | 10 Mcycles |
| Switching Voltage | 17 V (Signalling Circuit) |
| Package Quantity | 1 |
