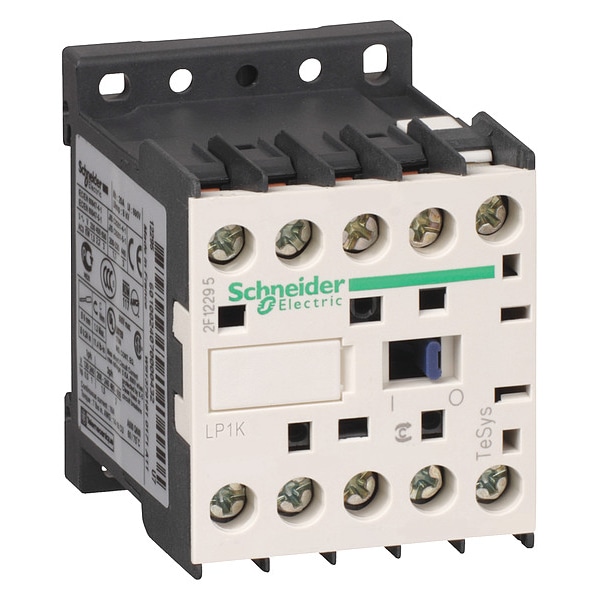

Contactador magnético IEC, 3 Polos, 24 V CC, 6 A, Inversión: No.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 6 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | No |
| Height | 2.28 in |
| Width | 1.77 in |
| Depth | 2.24 in |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | None |
| Hz | 50/60 |
| Frame / Series / Class / Code | TeSys |
| Series | TeSys K |
| Auxiliary Contact Form | 1NC |
| NEMA Size | Not Applicable |
| Standards | CCC, CSA, EAC, REACH, RoHS, UKCA, UL Listed |
| Tightening Torque | 0.8 to 1.3 Nm |
| Mechanical Durability | 10 Mcycles |
| Rated Voltage | 690V AC |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Operating Time | 30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening) |
| Impedance | 3 mOhm |
| Rated Making Capacity | 110 A |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Rated Breaking Capacity | 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V |
| Control Circuit Voltage Limits | Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Electrical Durability | 1.3 Mcycles 6 A AC-3 Less than or Equal to 440 V; 1.3 Mcycles 6 A AC-3e Less than or Equal to 440 V; 0.05 Mcycles 36 A AC-4 Less than or Equal to 440 V |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Thermal Amperage | 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit) |
| Net Weight | 0.225 kg |
| Mounts On | Plate, Rail |
| Operating Speed | 3600 cycles per hr |
| Overvoltage Category | CAT III |
| Working Height | 6,561.68 ft |
| Impulse Withstand Voltage | 8 kV |
| Fuse Amps | 25 A (Power Circuit), 10 A (Signalling Circuit) |
| Application | Motor Control |
| Rated Insulation Volts | 600/690V |
| Switching Current | 5 mA (Signalling Circuit) |
| Includes Auxiliary Contacts | Yes |
| Overall Width | 1.77 in |
| Reversing Capability | Non-Reversing |
| Contactor Style | IEC |
| NEMA Enclosure Material | Not Applicable |
| Number of Normally Open Main Contacts | 3 |
| Minimum Operating Temperature | -13 deg F |
| NEMA Enclosure Rating | No Enclosure |
| Overall Height | 2.28 in |
| Maximum Operating Temperature | 122 deg F |
| Resistance Properties | Insulation Resistant |
| Embedded Surge Suppressor | No |
| Full Load Current - Inductive | 6 A |
| Mechanical Operating Durability | 10,000,000 |
| Terminal Connection Type | Screw Clamp Terminals |
| Frequency | 50/60 Hz |
| Mounting Style | DIN Rail, Plate |
| Coil Voltage | 24V DC |
| Number of Auxillary Contacts | 1 |
| Maximum Voltage Rating | 690 V AC |
| Overall Depth | 2.24 in |
| Power Pole Contact Composition | 3 NO |
| Ambient Air Temperature For Storage | -58 to 176°F |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Mounting Support | Rail |
| Flame Retardance | V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102 |
| Control Circuit Type | DC standard |
| Ambient Air Temperature For Operation | -13 to 122°F (-25 to 50°C) |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Auxiliary Contacts Type | Instantaneous 1 NC |
| Heat Dissipation | 1.3 W |
| Auxiliary Contact Composition | 1 NC |
| Hold-In Power Consumption in W | 3 W 68°F (20°C) |
| Inrush Power in W | 3 W 68°F (20°C)) |
| Product Or Component Type | Contactor |
| Product Certifications | CB Scheme; CCC; UL; CSA; EAC; CE; UKCA |
| Average Impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Motor Power KW | 1.5 kW 220 to 230 V AC 50/60 Hz AC-3; 2.2 kW 380 to 415 V AC 50/60 Hz AC-3; 3 kW 440/690 V AC 50/60 Hz AC-3; 1.5 kW 220 to 230 V AC 50/60 Hz AC-3e; 2.2 kW 380 to 415 V AC 50/60 Hz AC-3e; 3 kW 440/690 V AC 50/60 Hz AC-3e; 1.5 kW 220 to 230 V AC 50/60 Hz AC-4; 2.2 kW 380 to 415 V AC 50/60 Hz AC-4; 3 kW 440/690 V AC 50/60 Hz AC-4 |
| Poles Description | 3P |
| Utilisation Category | AC-3; AC-3e; AC-4 |
| Maximum Operating Rate | 3600 cyc/h |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Conventional Free Air Thermal Current | 20 A (at 140°F (60°C)) for power circuit; 10 A (at 122°F (50°C)) for signalling circuit |
| IRMS Rated Making Capacity | 110 A AC for power circuit conforming to IEC 60947; 110 A AC for signalling circuit conforming to IEC 60947 |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz; Signalling circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz |
| Rated Short Time Withstand Current | 90 A 122°F (50°C) - 1 s for power circuit; 85 A 122°F (50°C) - 5 s for power circuit; 80 A 122°F (50°C) - 10 s for power circuit; 60 A 122°F (50°C) - 30 s for power circuit; 45 A 122°F (50°C) - 1 min for power circuit; 40 A 122°F (50°C) - 3 min for power circuit; 20 A 122°F (50°C) - Greater than or Equal to 15 min for power circuit; 80 A - 1 s for signalling circuit; 90 A - 500 ms for signalling circuit; 110 A - 100 ms for signalling circuit |
| Rated Operational Current | 6 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 6 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| IP Degree Of Protection | IP2X |
| Connections - Terminals | screw clamp terminals 1 0.00 to 0.01 in² (1.5 to 4 mm²)solid; screw clamp terminals 1 0.00 to 0.01 in² (0.75 to 4 mm²)flexible without cable end; screw clamp terminals 1 0.00 to 0.00 in² (0.34 to 2.5 mm²)flexible with cable end; screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 4 mm²)solid; screw clamp terminals 2 0.00 to 0.01 in² (0.75 to 4 mm²)flexible without cable end; screw clamp terminals 2 0.00 to 0.00 in² (0.34 to 1.5 mm²)flexible with cable end; Power circuit screw clamp terminals 2 0.00 in² (1.5 mm²)flexible with cable end |
| Rated Insulation Voltage | Power circuit 600 V UL 508; Power circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-5-1; Signalling circuit 600 V UL 508; Power circuit 600 V CSA C22.2 No 14; Signalling circuit 600 V CSA C22.2 No 14 |
| Associated Fuse Rating | 25 A gG at Less than or Equal to 440 V for power circuit; 25 A aM for power circuit; 10 A gG for signalling circuit conforming to IEC 60947; 10 A gG for signalling circuit conforming to VDE 0660 |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Package Quantity | 1 |
