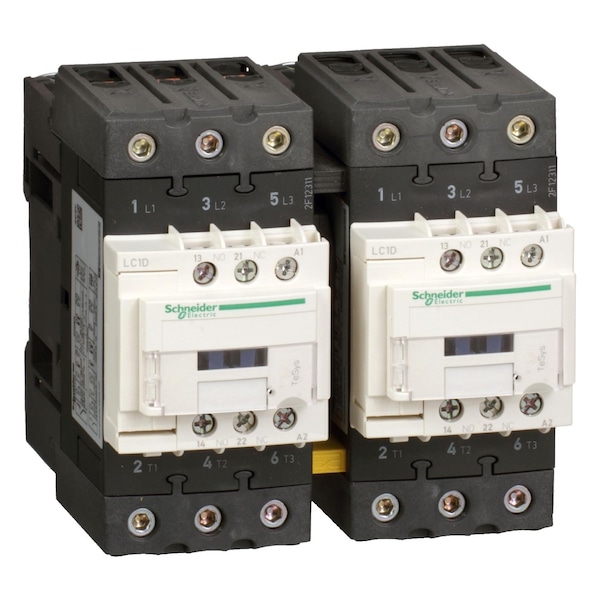

Contacto magnético IEC, 3 polos, 24 V CC, 65 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 65 A |
| Action | Reversing |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| HP @ 1 Phase - 240V | 10 hp |
| Height | 122 mm |
| HP @ 3 Phase - 208V | 20 hp |
| Width | 119 mm |
| Depth | 120 mm |
| HP @ 3 Phase - 240V | 20 hp |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | LC2D |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, CSA, RINA, GOST, CCC, DNV, LROS, GL, BV, UKCA, TH IEC 60068-2-30 |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar |
| Application | Motor Control, Resistive Load |
| Operating Time | 16 to 24 ms (Opening), 42.5 to 57.5 ms (Closing) |
| Overvoltage Category | CAT III |
| Working Height | Up to 9,842.52 ft |
| Max. Temperature | 850°C |
| Net Weight | 2.04 kg |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Mounts On | Plate, Rail |
| Electrical Durability | 1.45 Mcycles (65 A, AC-3, Less than 440 V); 1.4 Mcycles (80 A, AC-1, Less than 440 V) |
| Non-Overlap Time | 1.5 msec |
| Switching Current | 5 mA (Signalling Circuit) |
| Fire Rating | UL 94 V1 |
| Rated Short-Time Withstand Current | 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Control Circuit Voltage Limits | Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C); Operational DC: 0.75 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Rated Voltage | 690V AC, 300V DC |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Impedance | 1.5 mOhm |
| IP Rating | IP20 |
| Includes Protective Cover | Yes |
| Rated Insulation Volts | 600/690V |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit) |
| Operating Speed | 3600 cycles per hr |
| Fuse Amps | 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Mechanical Durability | 10 Mcycles |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Environmental Attributes | Mercury Free, PVC Free, Pollution Degree 3 |
| Max. Operating Watts | 18.5 kW (at 220 to 230V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz), 37 kW (at 415 to 440V AC 50 Hz), 37 kW (at 500V AC 50 Hz), 37 kW (at 660 to 690V AC 50 Hz) |
| Impulse Withstand Voltage | 6 kV |
| Rated Breaking Capacity | 1000 A @ 440V |
| Poles Description | 3P |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC |
| Pole Contact Composition | 3 NO |
| Ip Degree of Protection | IP20 front face IEC 60529 |
| Ambient Air Temperature For Operation | -40-60°C, 60-70°C with derating |
| Auxiliary Contacts Type | mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1 |
| Protective Treatment | THIEC 60068-2-30 |
| [Ui] Rated Insulation Voltage | power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL |
| Power Dissipation Per Pole | 9.6 W AC-1, 6.3 W AC-3, 6.3 W AC-3e |
| Product or Component Type | reversing contactor |
| Control Circuit Type | DC standard |
| Maximum Horse Power Rating | 40 hp at 460/480 V AC 60 Hz for 3 phase motors, 5 hp at 115 V AC 60 Hz for 1 phase motors, 10 hp at 230/240 V AC 60 Hz for 1 phase motors, 20 hp at 200/208 V AC 60 Hz for 3 phase motors, 20 hp at 230/240 V AC 60 Hz for 3 phase motors, 50 hp at 575/600 V AC 60 Hz for 3 phase motors |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60°C) for signalling circuit, 80 A (at 60°C) for power circuit |
| Irms Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 1000 A at 440 V for power circuit conforming to IEC 60947 |
| Coil Technology | Built-in bidirectional peak limiting diode suppressor |
| [Icw] Rated Short-Time Withstand Current | 520 A 40°C - 10 s for power circuit, 900 A 40°C - 1 s for power circuit, 110 A 40°C - 10 min for power circuit, 260 A 40°C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit |
| Insulation Resistance | > 10 MOhm for signalling circuit |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Mechanical Robustness | vibrations contactor open2 Gn, 5...300 Hz, vibrations contactor closed4 Gn, 5...300 Hz, shocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 125 A gG at <= 690 V coordination type 1 for power circuit, 125 A gG at <= 690 V coordination type 2 for power circuit |
| Interlocking Type | Mechanical |
| Inrush Power In W | 19-19 W 20°C |
| Connections - Terminals | control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid, control circuit screw clamp terminals 2 1-4 mm²solid, power circuit EverLink BTR screw connectors 1 1-35 mm²flexible without cable end, power circuit EverLink BTR screw connectors 2 1-25 mm²flexible without cable end, power circuit EverLink BTR screw connectors 1 1-35 mm²flexible with cable end, power circuit EverLink BTR screw connectors 2 1-25 mm²flexible with cable end, power circuit EverLink BTR screw connectors 1 1-35 mm²solid, power circuit EverLink BTR screw connectors 2 1-25 mm²solid |
| [Ie] Rated Operational Current | 80 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 65 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 65 A (at <60°C) at <= 440 V AC AC-3e for power circuit |
| Flame Retardance | V1 conforming to UL 94 |
| Time Constant | 34 msec |
| Maximum Operating Rate | 3600 cyc/h 60°C |
| Contactor Application | Resistive load |
| Device Presentation | Preassembled with reversing power busbar |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Utilisation Category | AC-3, AC-1, AC-3e |
| Ambient Air Temperature For Storage | -60-80°C |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Climatic Withstand | IACS E10, IEC 60947-1 Annex Q category D |
| Motor Power Kw | 18.5 kW at 220...230 V AC 50 Hz, 30 kW at 380...400 V AC 50 Hz, 37 kW at 415...440 V AC 50 Hz, 37 kW at 500 V AC 50 Hz, 37 kW at 660...690 V AC 50 Hz |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Hold-In Power Consumption In W | 7.4-7.4 W 20°C |
| Range | TeSys, Deca |
| Mounting Support | Rail, Plate |
| Protective Cover | With |
| Product Name | TeSys Deca |
| Fire Resistance | 850°C IEC 60695-2-1 |
| Average Impedance | 1.5 mOhm - Ith 80 A 50 Hz for power circuit |
| Package Quantity | 1 |
