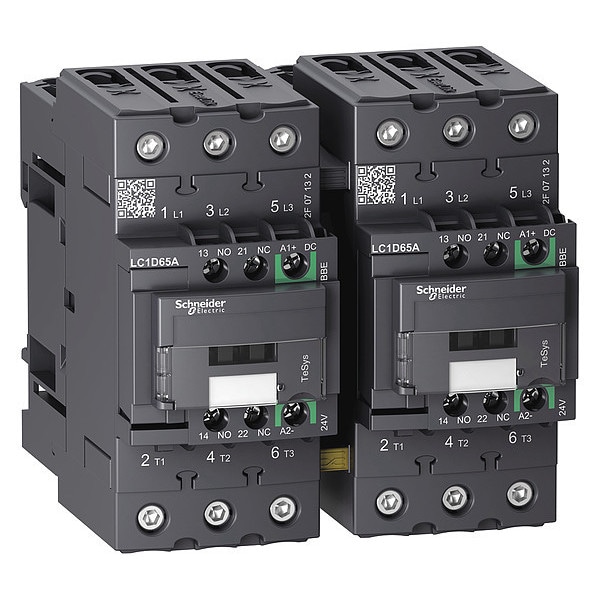

Contactos magnéticos IEC, 3 polos, 24 V CC, 65 A, Reversibilidad: Sí.
| Full Load Amps-Inductive | 65 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 5 hp |
| Height | 4.8 in |
| HP @ 1 Phase - 240V | 10 hp |
| Width | 4.69 in |
| HP @ 3 Phase - 208V | 20 hp |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 240V | 20 hp |
| Depth | 4.72 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 40 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Frame / Series / Class / Code | TeSys |
| NEMA Size | Not Applicable |
| Series | TeSys Deca |
| Auxiliary Contact Form | 1NO/1NC |
| Non-Overlap Time | 1.5 msec |
| Rated Insulation Volts | 690V |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit) |
| Mechanical Durability | 6 Mcycles |
| Electrical Durability | 1.8 Mcycles (57 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit) |
| Includes Protective Cover | Yes |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Control Circuit Voltage Limits | Drop-Out DC: Less Than 0.1 Uc (at -40 to 70°C); Operational DC: 0.8 to 1.2 Uc (at -40 to 60°C), 1 to 1.2 Uc (at 60 to 70°C) |
| Impedance | 1.5 mOhm |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Rated Breaking Capacity | 1000 A @ 440V |
| Rated Voltage | 690V AC |
| Max. Operating Watts | 18.5 kW (at 220 to 230V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz), 37 kW (at 415V AC 50 Hz), 37 kW (at 440V AC 50 Hz), 37 kW (at 500V AC 50 Hz), 37 kW (at 660 to 690V AC 50 Hz) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Net Weight | 2.174 kg |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Max. Temperature | 850°C |
| Application | Motor Control, Resistive Load |
| Overvoltage Category | CAT III |
| Fire Rating | UL 94 V1 |
| Fuse Amps | 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Working Height | Up to 9,842.52 ft |
| Impulse Withstand Voltage | 6 kV |
| Operating Speed | 3600 cycles per hr |
| Switching Current | 5 mA (Signalling Circuit) |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| IP Rating | IP20 |
| Watts Loss | 0.5W |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Mounts On | Plate, Rail |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Electrical Operating Durability | 1,800,000, 500,000 |
| Mounting Style | DIN Rail, Plate |
| Reversing Capability | Reversing |
| NEMA Enclosure Material | Not Applicable |
| Embedded Surge Suppressor | No |
| Mechanical Operating Durability | 6,000,000 |
| Maximum Operating Temperature | 140 deg F |
| Number of Normally Open Main Contacts | 3 |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 120V AC | 5 HP |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 240V AC | 20 HP |
| NEMA Enclosure Rating | No Enclosure |
| Contactor Style | IEC |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Single Phase - 240V AC | 10 HP |
| Full Load Current - Resistive | 80 A |
| Coil Voltage | 24V DC |
| Overall Height | 4.8 in |
| Terminal Connection Type | Screw Clamp Terminals |
| Number of Auxillary Contacts | 2 |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Overall Depth | 4.72 in |
| Overall Width | 4.69 in |
| Maximum Voltage Rating | 690 V AC |
| Full Load Current - Inductive | 65 A |
| Horsepower @ Three Phase - 208V AC | 20 HP |
| Package Quantity | 1 |
