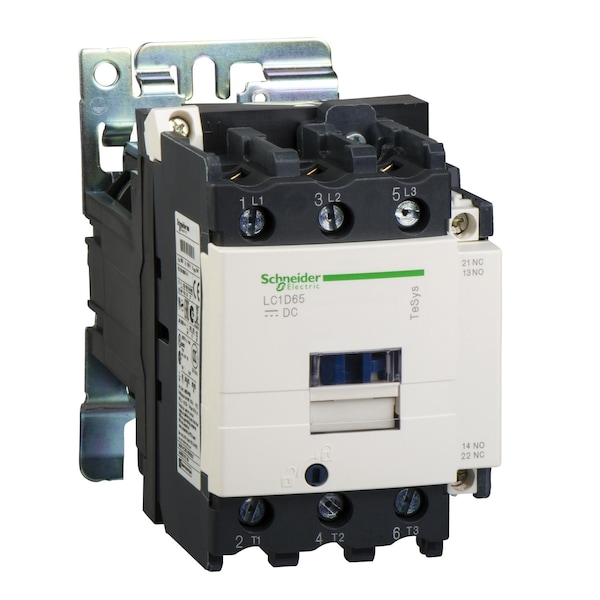

Contacto magnético IEC, 3 polos, 24 V DC, 80 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 80 A |
| Full Load Amps-Resistive | 125 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| HP @ 1 Phase - 120V | 7 1/2 hp |
| HP @ 1 Phase - 240V | 15 hp |
| Height | 127 mm |
| Width | 85 mm |
| HP @ 3 Phase - 208V | 30 hp |
| HP @ 3 Phase - 240V | 30 hp |
| Depth | 186 mm |
| HP @ 3 Phase - 575V | 60 hp |
| HP @ 3 Phase - 480V | 60 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | LC1D |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, LROS, CCC, DNV, GL, GOST, RINA, BV, UL, CSA, THIEC 60068-2-30 |
| Features | Without Built-In Suppressor Module |
| Application | Motor Control, Resistive Load |
| Vibration Resistance | 3 G (Contactor Closed), 2 G (Contactor Open) |
| Shock Resistance | 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 125 A (at 60°C Power Circuit) |
| Max. Temperature | 850°C |
| Switching Current | 5 mA (Signalling Circuit) |
| Overvoltage Category | CAT III |
| Rated Short-Time Withstand Current | 640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Non-Overlap Time | 1.5 msec |
| Electrical Durability | 0.8 Mcycles (125 A, AC-1, Less than 440 V); 1.5 Mcycles (80 A, AC-3, Less than 440 V); 1.5 Mcycles (80 A, AC-3e, Less than 440 V) |
| Rated Breaking Capacity | 1100 A @ 440V |
| Tightening Torque | 1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Net Weight | 2.59 kg |
| Max. Operating Watts | 22 kW (at 220 to 230V AC 50/60 Hz AC-3), 37 kW (at 380 to 400V AC 50/60 Hz AC-3), 45 kW (at 415 to 440V AC 50/60 Hz AC-3), 55 kW (at 500V AC 50/60 Hz AC-3), 45 kW (at 660 to 690V AC 50/60 Hz AC-3), 15 kW (at 400V AC 50/60 Hz AC-4), 22 kW (at 220 to 230V AC 50/60 Hz AC-3e), 37 kW (at 380 to 400V AC 50/60 Hz AC-3e), 45 kW (at 415 to 440V AC 50/60 Hz AC-3e), 55 kW (at 500V AC 50/60 Hz AC-3e), 45 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Fuse Amps | 10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit) |
| Rated Voltage | 690V AC, 300V DC |
| Includes Protective Cover | Yes |
| Mechanical Durability | 75 Mcycles |
| IP Rating | IP20 |
| Working Height | Up to 9,842.52 ft |
| Rated Insulation Volts | 600/690V, 600/1000V |
| Control Circuit Voltage Limits | Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C); Operational DC: 0.85 to 1.1 Uc (at -40 to 55°C), 1 to 1.1 Uc (at 55 to 70°C) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Impedance | 0.8 mOhm |
| Mounts On | Plate, Rail |
| Operating Speed | 3600 cycles per hr |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1100 A @ 440V (Power Circuit) |
| Operating Time | 95 to 130 ms (Closing), 20 to 35 ms (Opening) |
| Impulse Withstand Voltage | 8 kV |
| Fire Rating | UL 94 V1 |
| Electrical Connection | Lugs-Ring Terminals, Bars |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Package Quantity | 1 |
