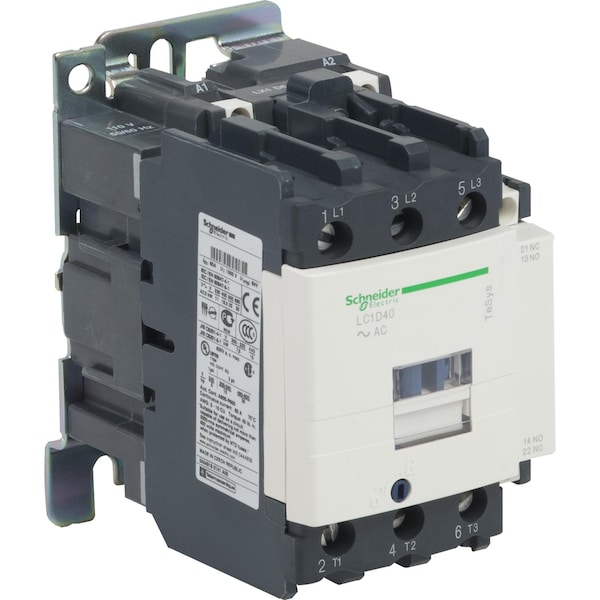

Contacto magnético IEC, 3 polos, 240 V CA, 40 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 40 A |
| Full Load Amps-Resistive | 60 A |
| Number of Poles | 3 |
| Coil Volts | 240 V AC |
| Height | 127 mm |
| HP @ 1 Phase - 240V | 5 hp |
| Width | 75 mm |
| HP @ 3 Phase - 208V | 10 hp |
| HP @ 3 Phase - 240V | 10 hp |
| Depth | 119 mm |
| HP @ 3 Phase - 575V | 30 hp |
| HP @ 3 Phase - 480V | 30 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | IEC 60947-5-1, IEC 60947-4-1, UL 508, EN 60947-4-1, EN 60947-5-1, CSA C22.2 No 14, RINA, UL, BV, CSA, GOST, DNV, LROS, GL, CCC, UKCA |
| Series | LC1D |
| Features | Without Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Application | Motor Control, Resistive Load |
| Net Weight | 1.4 kg |
| Rated Insulation Volts | 600/690V |
| Rated Voltage | 690V AC |
| IP Rating | IP2X |
| Thermal Amperage | 10 A (at 60°C Control Circuit), 60 A (at 60°C Power Circuit) |
| Fuse Amps | 10 A (Control Circuit), 80 A (Type 1 and 2 Power Circuit) |
| Rated Making Capacity | 800 A @ 440V (Power Circuit), 140 A (AC Control Circuit) |
| Mechanical Durability | 6 Mcycles |
| Switching Voltage | 17 V (Control Circuit) |
| Electrical Connection | Screw Clamp Terminals |
| Impulse Withstand Voltage | 8 kV |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| Inrush VA | 140 VA (at 20°C), 160 VA (at 20°C) |
| Hold VA | 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Max. Operating Watts | 18.5 kW (at 380 to 400V AC 50 Hz AC-3), 22 kW (at 500V AC 50 Hz AC-3), 30 kW (at 660 to 690V AC 50 Hz) AC-3), 22 kW (at 1000V AC 50 Hz AC-3), 22 kW (at 415V AC 50 Hz AC-3), 22 kW (at 440V AC 50 Hz) AC-3), 11 kW (at 220 to 230V AC 50 Hz AC-3), 9 kW (at 400V AC 50 Hz AC-4), 18.5 kW (at 380 to 400V AC 50 Hz AC-3e), 22 kW (at 500V AC 50 Hz AC-3e), 30 kW (at 660 to 690V AC 50 Hz AC-3e), 22 kW(at 1000V AC 50 Hz AC-3e), 22 kW(at 415V AC 50 Hz AC-3e), 22 kW (at 440V AC 50 Hz AC-3e), 11 kW(at 220 to 230V AC 50 Hz AC-3e) |
| Includes Protective Cover | Yes |
| Insulation Resistance Range | Greater Than 10 Mohms (Control Circuit) |
| Working Height | Up to 9,842.52 ft |
| Switching Current | 5 mA (Control Circuit) |
| Watts Loss | 4 to 5W |
| Operating Speed | 3600 cycles per hr |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 Nm (Power Circuit) |
| Rated Breaking Capacity | 800 A @ 440V |
| Mounts On | Plate, Rail |
| Max. Temperature | 850°C |
| Overvoltage Category | CAT III |
| Fire Rating | UL 94 V1 |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Non-Overlap Time | 1.5 msec |
| Operating Time | 4 to 19 ms (Opening), 12 to 26 ms (Closing) |
| Package Quantity | 1 |
