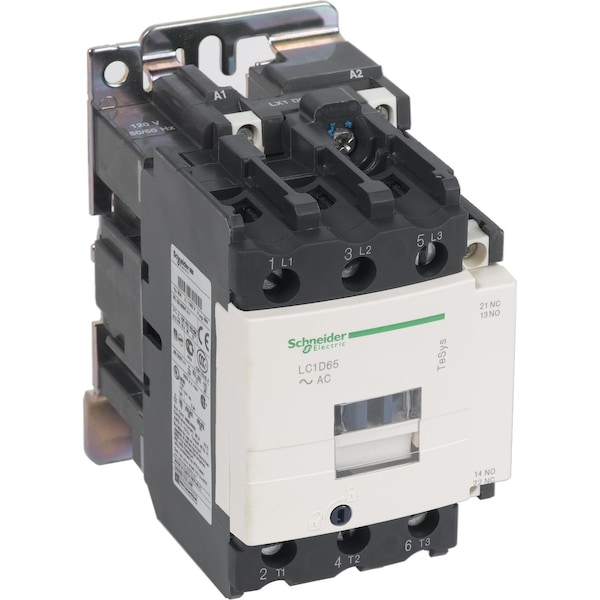

Contacto magnético IEC, 3 polos, 240 V CA, 65 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 65 A |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 240 V AC |
| HP @ 1 Phase - 240V | 10 hp |
| Height | 122 mm |
| Width | 70 mm |
| HP @ 3 Phase - 208V | 20 hp |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 240V | 20 hp |
| Depth | 118 mm |
| HP @ 3 Phase - 480V | 40 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | LC1D |
| Standards | EN 60947-4-1, CSA C22.2 No 14, IEC 60947-4-1, EN 60947-5-1, UL 508, DNV, UL, RINA, CCC, CSA, LROS, BV, GL, UKCA, TH 3)IEC 60068-2-30 |
| Application | Resistive Load |
| Hold VA | 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C) |
| IP Rating | IP2X |
| Mounts On | Plate, Rail |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 Nm (Power Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Rated Voltage | 690V AC |
| Rated Insulation Volts | 600/690V |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Working Height | Up to 9,842.52 ft |
| Thermal Amperage | 80 A (at 60°C Power Circuit), 10 A (at 60°C Control Circuit) |
| Control Circuit Voltage Limits | Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz), Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz) |
| Watts Loss | 4 to 5W |
| Fuse Amps | 125 A (Type 2 Power Circuit), 160 A (Type 1 Power Circuit), 10 A (Control Circuit) |
| Operating Speed | 3600 cycles per min |
| Net Weight | 2.185 kg |
| Insulation Resistance Range | Greater Than 10 Mohms (Control Circuit) |
| Rated Making Capacity | 140 A @ 440V (AC Control Circuit), 1000 A @ 440V (Power Circuit) |
| Max. Operating Watts | 11 kW (at 400V AC 50 Hz AC-4), 30 kW (at 380 to 400V AC 50 Hz AC-3), 37 kW (at 500V AC 50 Hz AC-3), 37 kW (at 660 to 690V AC 50 Hz AC-3), 18.5 kW (at 220 to 230V AC 50 Hz AC-3), 30 kW (at 415V AC 50 Hz AC-3), 37 kW (at 1000V AC 50 Hz AC-3), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 380 to 400V AC 50 Hz AC-3e), 37 kW (at 500V AC 50 Hz AC-3e), 37 kW (at 660 to 690V AC 50 Hz AC-3e), 18.5 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 415V AC 50 Hz AC-3e), 37 kW (at 1000V AC 50 Hz AC-3e), 37 kW (at 500V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz) |
| Impulse Withstand Voltage | 6 kV |
| Includes Protective Cover | Yes |
| Rated Short-Time Withstand Current | 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit) |
| Max. Temperature | 850°C |
| Rated Breaking Capacity | 1000 kA @ 440V |
| Electrical Connection | Screw Clamp Terminals |
| Non-Overlap Time | 1.5 msec |
| Operating Time | 12 to 26 ms (Closing), 4 to 19 ms (Opening) |
| Switching Voltage | 17 V (Control Circuit) |
| Switching Current | 5 mA (Control Circuit) |
| Inrush VA | 140 to 160 VA |
| Overvoltage Category | CAT III |
| Impedance | 1.5 Ohm |
| Fire Rating | UL 94 V1 |
| Mechanical Durability | 6 Mcycles |
| Package Quantity | 1 |
