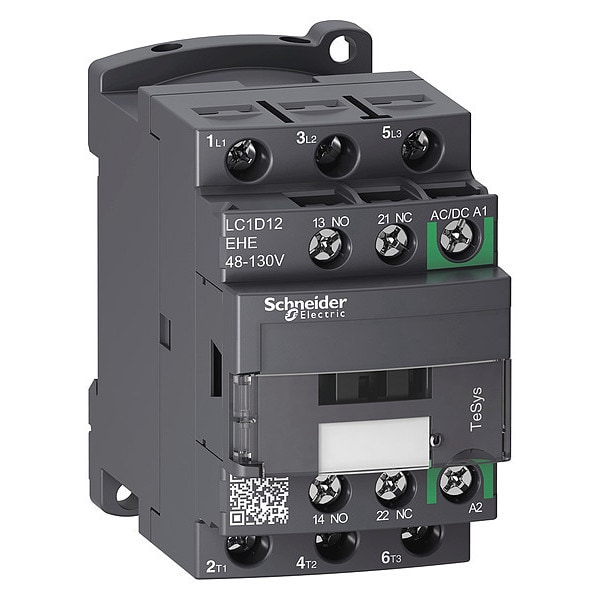

Contacto magnético IEC, 3 polos, 48 a 130 V CA/CD, 12 A, Inversión: No.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 12 A |
| Full Load Amps-Resistive | 25 A |
| Number of Poles | 3 |
| Coil Volts | 48 to 130 V AC/DC |
| Reversing | No |
| HP @ 1 Phase - 120V | 1/2 hp |
| HP @ 1 Phase - 240V | 2 hp |
| Height | 3.03 in |
| HP @ 3 Phase - 208V | 3 hp |
| Width | 1.77 in |
| Depth | 3.38 in |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 7 1/2 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Frame / Series / Class / Code | TeSys |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 1NO/1NC |
| Series | TeSys Deca |
| Application | Motor Control, Resistive Load |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Watts Loss | 0.8W |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Electrical Connection | Screw Clamp Terminals |
| Operating Speed | 3600 cycles per hr |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Overvoltage Category | CAT III |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit) |
| IP Rating | IP20 |
| Max. Temperature | 850°C |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Making Capacity | 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Fuse Amps | 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit) |
| Impedance | 2.5 mOhm |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit) |
| Fire Rating | UL 94 V1 |
| Hold VA | 1.3 VA |
| Mounts On | Plate, Rail |
| Rated Insulation Volts | 690V |
| Max. Operating Watts | 3 kW (at 220 to 230V AC 50 Hz AC-3), 5.5 kW (at 380 to 400V AC 50 Hz AC-3), 5.5 kW (at 415V AC 50 Hz AC-3), 5.5 kW (at 440V AC 50 Hz AC-3), 7.5 kW (at 500V AC 50 Hz AC-3), 7.5 kW (at 660 to 690V AC 50 Hz AC-3), 3 kW (at 220 to 230V AC 50 Hz AC-3e), 5.5 kW (at 380 to 400V AC 50 Hz AC-3e), 5.5 kW (at 415V AC 50 Hz AC-3e), 5.5 kW (at 440V AC 50 Hz AC-3e), 7.5 kW (at 500V AC 50 Hz AC-3e), 7.5 kW (at 660 to 690V AC 50 Hz AC-3e) |
| Inrush VA | 25 VA |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Operating Time | 45 to 55 ms (Closing), 20 to 90 ms (Opening) |
| Impulse Withstand Voltage | 6 kV |
| Mechanical Durability | 15 Mcycles |
| Includes Protective Cover | Yes |
| Net Weight | 0.373 kg |
| Working Height | Up to 9,842.52 ft |
| Electrical Durability | 2.3 Mcycles (11 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V); 2.3 Mcycles (11 A, AC-3e, Less than 440 V) |
| Features | Built-In Bi-Directional Peak Limiting |
| Tightening Torque | 1.7 Nm |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Non-Overlap Time | 1.5 msec |
| Rated Breaking Capacity | 250 A @ 440V |
| Rated Voltage | 690V AC |
| Number of Auxillary Contacts | 2 |
| Overall Height | 3.03 in |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Full Load Current - Inductive | 12 A |
| Embedded Surge Suppressor | No |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Terminal Connection Type | Screw Clamp Terminals |
| Full Load Current - Resistive | 25 A |
| Mounting Style | DIN Rail, Plate |
| Contactor Style | IEC |
| Minimum Operating Temperature | -40 deg F |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| NEMA Enclosure Rating | No Enclosure |
| Reversing Capability | Non-Reversing |
| NEMA Enclosure Material | Not Applicable |
| Number of Normally Open Main Contacts | 3 |
| Overall Depth | 3.39 in |
| Electrical Operating Durability | 2,300,000, 800,000 |
| Frequency | 50/60 Hz |
| Overall Width | 1.77 in |
| Maximum Operating Temperature | 140 deg F |
| Phase | Three |
| Horsepower @ Three Phase - 480V AC | 7.5 HP |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Coil Voltage | 48-130V AC/DC |
| Horsepower @ Single Phase - 120V AC | 0.5 HP |
| Maximum Voltage Rating | 690 V AC |
| Mechanical Operating Durability | 15,000,000 |
| Package Quantity | 1 |
