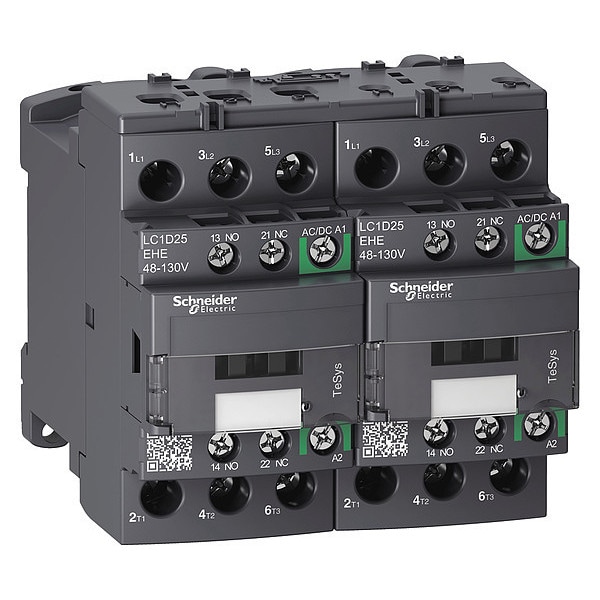

Contacto magnético IEC, 3 polos, 48 a 130 V CA/CC, 25 A, Reversión: Sí.
| HP @ 3 Phase - 208V | 7 1/2 hp |
|---|---|
| HP @ 3 Phase - 575V | 20 hp |
| HP @ 1 Phase - 240V | 3 hp |
| Frame / Series / Class / Code | TeSys |
| Hz | 50/60 |
| HP @ 3 Phase - 480V | 15 hp |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 1 Phase - 120V | 2 hp |
| Full Load Amps-Inductive | 25 A |
| Item | IEC Magnetic Contactor |
| Aux. Contact Configuration | 1NO, 1NC |
| Number of Poles | 3 |
| Width | 3.54 in |
| Height | 3.35 in |
| Reversing | Yes |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Coil Volts | 48 to 130 V AC/DC |
| Depth | 3.62 in |
| Enclosure NEMA Rating | No Enclosure |
| Full Load Amps-Resistive | 40 A |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 1NO/1NC |
| IP Rating | IP20 |
| Number of Normally Open Main Contacts | 3 |
| Reversing Capability | Reversing |
| Full Load Current - Resistive | 40 A |
| Minimum Operating Temperature | -40 deg F |
| Mechanical Operating Durability | 15,000,000 |
| Overall Height | 3.35 in |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Frequency | 50/60 Hz |
| NEMA Enclosure Rating | No Enclosure |
| Number of Auxillary Contacts | 2 |
| Electrical Operating Durability | 2,000,000, 900,000 |
| Overall Width | 3.54 in |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Embedded Surge Suppressor | No |
| Mounting Style | DIN Rail, Plate |
| Maximum Operating Temperature | 140 deg F |
| Overall Depth | 3.62 in |
| Maximum Voltage Rating | 690 V AC |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Horsepower @ Three Phase - 600V AC | 20 HP |
| Full Load Current - Inductive | 25 A |
| Includes Auxiliary Contacts | Yes |
| Contactor Style | IEC |
| Coil Voltage | 48-130V AC/DC |
| Switching Current | 5 mA (Signalling Circuit) |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Rated Voltage | 690V AC |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Operating Time | 45 to 55 ms (Closing), 20 to 90 ms (Opening) |
| Overvoltage Category | CAT III |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Electrical Connection | Screw Clamp Terminals |
| Mounts On | Plate, Rail |
| Includes Protective Cover | Yes |
| Max. Temperature | 850°C |
| Fire Rating | UL 94 V1 |
| Operating Speed | 3600 cycles per hr |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Inrush VA | 25 VA |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Hold VA | 1.3 VA |
| Rated Insulation Volts | 690V |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit) |
| Mechanical Durability | 15 Mcycles |
| Watts Loss | 0.8W |
| Rated Short-Time Withstand Current | 50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Working Height | Up to 9,842.52 ft |
| Impulse Withstand Voltage | 6 kV |
| Rated Breaking Capacity | 450 A @ 440V |
| Application | Motor Control, Resistive Load |
| Net Weight | 0.913 kg |
| Electrical Durability | 2 Mcycles (21 A, AC-3, Less than 440 V); 0.9 Mcycles (40 A, AC-1, Less than 440 V) |
| Impedance | 2 mOhm |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Max. Operating Watts | 5.5 kW (at 220 to 230V AC 50 Hz), 11 kW (at 380 to 400V AC 50 Hz), 11 kW (at 415V AC 50 Hz), 11 kW (at 440V AC 50 Hz), 15 kW (at 500V AC 50 Hz), 15 kW (at 660 to 690V AC 50 Hz) |
| Non-Overlap Time | 1.5 msec |
| Package Quantity | 1 |
