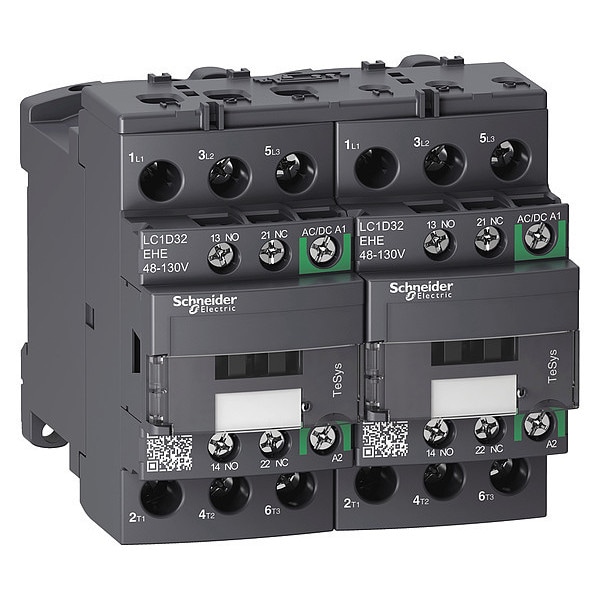

Contacto magnético IEC, 3 polos, 48 a 130 V AC/DC, 32 A, Reversión: Sí.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 32 A |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 3 |
| Coil Volts | 48 to 130 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 3.35 in |
| HP @ 3 Phase - 208V | 10 hp |
| Width | 3.54 in |
| Depth | 3.62 in |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 575V | 25 hp |
| HP @ 3 Phase - 480V | 20 hp |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Frame / Series / Class / Code | TeSys |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Auxiliary Contact Form | 1NO/1NC |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| IP Rating | IP20 |
| Reversing Capability | Reversing |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Full Load Current - Resistive | 50 A |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Embedded Surge Suppressor | No |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Resistance Properties | Fire Resistant |
| Maximum Operating Temperature | 140 deg F |
| Mechanical Operating Durability | 15,000,000 |
| NEMA Enclosure Material | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Full Load Current - Inductive | 32 A |
| Frequency | 50/60 Hz |
| Overall Height | 3.35 in |
| Horsepower @ Three Phase - 480V AC | 20 HP |
| Contactor Style | IEC |
| Number of Normally Open Main Contacts | 3 |
| Minimum Operating Temperature | -40 deg F |
| Overall Width | 3.54 in |
| Mounting Style | DIN Rail, Plate |
| Electrical Operating Durability | 2,100,000, 900,000 |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Maximum Voltage Rating | 690 V AC |
| Coil Voltage | 48-130V AC/DC |
| Number of Auxillary Contacts | 2 |
| Overall Depth | 3.62 in |
| Includes Auxiliary Contacts | Yes |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Mechanical Durability | 15 Mcycles |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit) |
| Fire Rating | UL 94 V1 |
| Rated Insulation Volts | 690V |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Net Weight | 0.923 kg |
| Max. Temperature | 850°C |
| Overvoltage Category | CAT III |
| Includes Protective Cover | Yes |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Impedance | 2 mOhm |
| Operating Time | 45 to 55 ms (Closing), 20 to 90 ms (Opening) |
| Rated Voltage | 690V AC |
| Max. Operating Watts | 7.5 kW (at 220 to 230V AC 50 Hz), 15 kW (at 380 to 400V AC 50 Hz), 15 kW (at 415V AC 50 Hz), 15 kW (at 440V AC 50 Hz), 18.5 kW (at 500V AC 50 Hz), 18.5 kW (at 660 to 690V AC 50 Hz) |
| Watts Loss | 0.8W |
| Hold VA | 1.3 VA |
| Electrical Connection | Screw Clamp Terminals |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit) |
| Inrush VA | 25 VA |
| Impulse Withstand Voltage | 6 kV |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Working Height | Up to 9,842.52 ft |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit) |
| Mounts On | Plate, Rail |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Non-Overlap Time | 1.5 msec |
| Electrical Durability | 2.1 Mcycles (29 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V) |
| Operating Speed | 3600 cycles per hr |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit) |
| Rated Breaking Capacity | 550 A @ 440V |
| Switching Current | 5 mA (Signalling Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Application | Motor Control, Resistive Load |
| Package Quantity | 1 |
