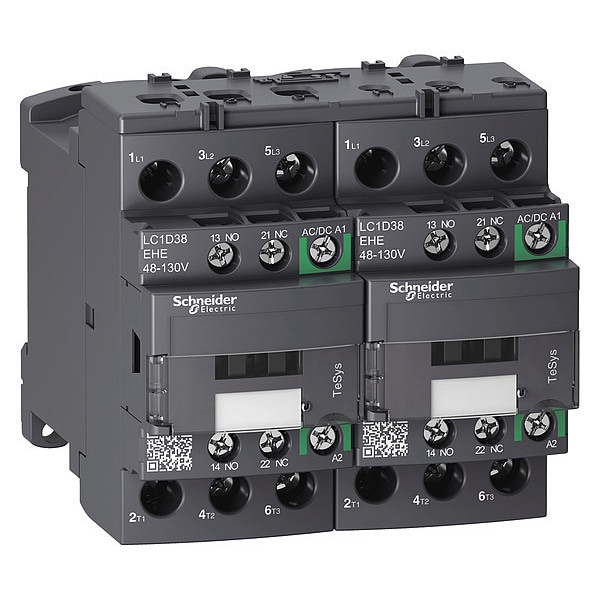

Contacto magnético IEC, 3 polos, 48 a 130 V CA/CD, 38 A, Reversión: Sí.
| Full Load Amps-Inductive | 38 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 3 |
| Coil Volts | 48 to 130 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 2 hp |
| Height | 3.35 in |
| HP @ 1 Phase - 240V | 5 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 208V | 10 hp |
| HP @ 3 Phase - 575V | 25 hp |
| Depth | 3.62 in |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 480V | 20 hp |
| Enclosure NEMA Rating | No Enclosure |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Frame / Series / Class / Code | TeSys |
| Hz | 50/60 |
| Aux. Contact Configuration | 1NO, 1NC |
| NEMA Size | Not Applicable |
| Series | TeSys Deca |
| Auxiliary Contact Form | 1NO/1NC |
| IP Rating | IP20 |
| Full Load Current - Inductive | 38 A |
| Terminal Connection Type | Screw Clamp Terminals |
| Mechanical Operating Durability | 15,000,000 |
| Overall Depth | 3.62 in |
| Mounting Style | DIN Rail, Plate |
| Electrical Operating Durability | 1,800,000, 900,000 |
| Embedded Surge Suppressor | No |
| Number of Auxillary Contacts | 2 |
| Reversing Capability | Reversing |
| Overall Width | 3.54 in |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| NEMA Enclosure Rating | No Enclosure |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| NEMA Enclosure Material | Not Applicable |
| Full Load Current - Resistive | 50 A |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Three Phase - 480V AC | 20 HP |
| Coil Voltage | 48-130V AC/DC |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Includes Auxiliary Contacts | Yes |
| Maximum Voltage Rating | 690 V AC |
| Number of Normally Open Main Contacts | 3 |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Frequency | 50/60 Hz |
| Overall Height | 3.35 in |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Impedance | 2 mOhm |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit) |
| Overvoltage Category | CAT III |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit) |
| Mounts On | Plate, Rail |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Max. Operating Watts | 9 kW (at 220 to 230V AC 50 Hz), 18.5 kW (at 380 to 400V AC 50 Hz), 18.5 kW (at 415V AC 50 Hz), 18.5 kW (at 440V AC 50 Hz), 18.5 kW (at 500V AC 50 Hz), 18.5 kW (at 660 to 690V AC 50 Hz) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Watts Loss | 0.8W |
| Working Height | Up to 9,842.52 ft |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 430 A (at 40°C for 1 s Power Circuit), 60 A (at 40°C for 10 min Power Circuit), 150 A (at 40°C for 1 min Power Circuit), 310 A (at 40°C for 10 s Power Circuit) |
| Rated Breaking Capacity | 550 A @ 440V |
| Impulse Withstand Voltage | 6 kV |
| Inrush VA | 25 VA |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit) |
| Switching Current | 5 mA (Signalling Circuit) |
| Non-Overlap Time | 1.5 msec |
| Net Weight | 0.933 kg |
| Hold VA | 1.3 VA |
| Electrical Connection | Screw Clamp Terminals |
| Electrical Durability | 1.8 Mcycles (35 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V) |
| Rated Insulation Volts | 690V |
| Application | Motor Control, Resistive Load |
| Includes Protective Cover | Yes |
| Mechanical Durability | 15 Mcycles |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Operating Speed | 3600 cycles per hr |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Rated Voltage | 690V AC |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Operating Time | 45 to 55 ms (Closing), 20 to 90 ms (Opening) |
| Max. Temperature | 850°C |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit) |
| Fire Rating | UL 94 V1 |
| Package Quantity | 1 |
