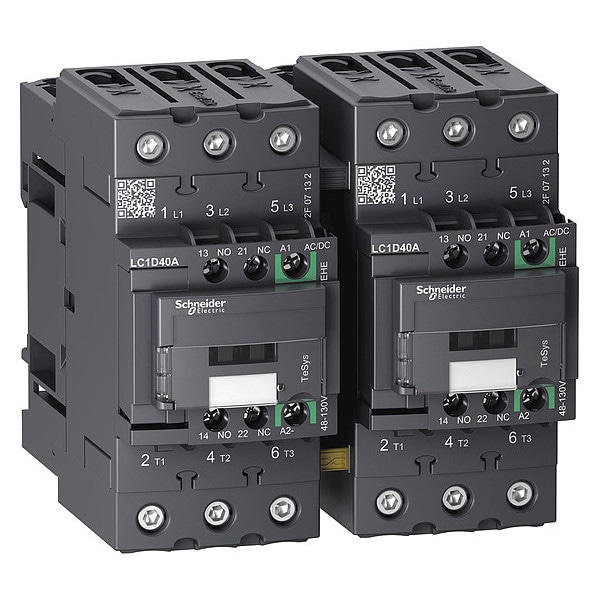

Contactador magnético IEC, 3 polos, 48 a 130 V CA/CD, 40 A, Reversión: Sí.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 40 A |
| Full Load Amps-Resistive | 60 A |
| Number of Poles | 3 |
| Coil Volts | 48 to 130 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 4.8 in |
| HP @ 3 Phase - 208V | 10 hp |
| Width | 4.69 in |
| Depth | 4.72 in |
| HP @ 3 Phase - 575V | 30 hp |
| HP @ 3 Phase - 240V | 10 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 30 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Frame / Series / Class / Code | TeSys |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 1NO/1NC |
| IP Rating | IP20 |
| Mounting Style | DIN Rail, Plate |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Embedded Surge Suppressor | No |
| Electrical Operating Durability | 2,000,000, 700,000 |
| Overall Height | 4.8 in |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Full Load Current - Inductive | 40 A |
| Overall Depth | 4.72 in |
| Horsepower @ Three Phase - 480V AC | 30 HP |
| Frequency | 50/60 Hz |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Overall Width | 4.69 in |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Horsepower @ Three Phase - 600V AC | 30 HP |
| Full Load Current - Resistive | 60 A |
| Includes Auxiliary Contacts | Yes |
| Minimum Operating Temperature | -40 deg F |
| Mechanical Operating Durability | 6,000,000 |
| Maximum Operating Temperature | 140 deg F |
| Number of Normally Open Main Contacts | 3 |
| NEMA Enclosure Material | Not Applicable |
| Number of Auxillary Contacts | 2 |
| Maximum Voltage Rating | 690 V AC |
| NEMA Enclosure Rating | No Enclosure |
| Coil Voltage | 48-130V AC/DC |
| Reversing Capability | Reversing |
| Contactor Style | IEC |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Inrush VA | 23 VA |
| Working Height | Up to 9,842.52 ft |
| Mechanical Durability | 6 Mcycles |
| Switching Voltage | 17 V (Signalling Circuit) |
| Application | Motor Control, Resistive Load |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Hold VA | 1.4 VA |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Includes Protective Cover | Yes |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Net Weight | 2.154 kg |
| Operating Speed | 3600 cycles per hr |
| Rated Breaking Capacity | 800 A @ 440V |
| Fuse Amps | 10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit) |
| Impedance | 1.5 mOhm |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit) |
| Rated Insulation Volts | 690V |
| Non-Overlap Time | 1.5 msec |
| Overvoltage Category | CAT III |
| Fire Rating | UL 94 V1 |
| Electrical Durability | 2 Mcycles (35 A, AC-3, Less than 440 V); 0.7 Mcycles (60 A, AC-1, Less than 440 V) |
| Impulse Withstand Voltage | 6 kV |
| Max. Operating Watts | 11 kW (at 220 to 230V AC 50 Hz), 18.5 kW (at 380 to 400V AC 50 Hz), 22 kW (at 415V AC 50 Hz), 22 kW (at 440V AC 50 Hz), 22 kW (at 500V AC 50 Hz), 30 kW (at 660 to 690V AC 50 Hz) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit) |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Mounts On | Plate, Rail |
| Rated Voltage | 690V AC |
| Max. Temperature | 850°C |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit) |
| Watts Loss | 0.9W |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Package Quantity | 1 |
