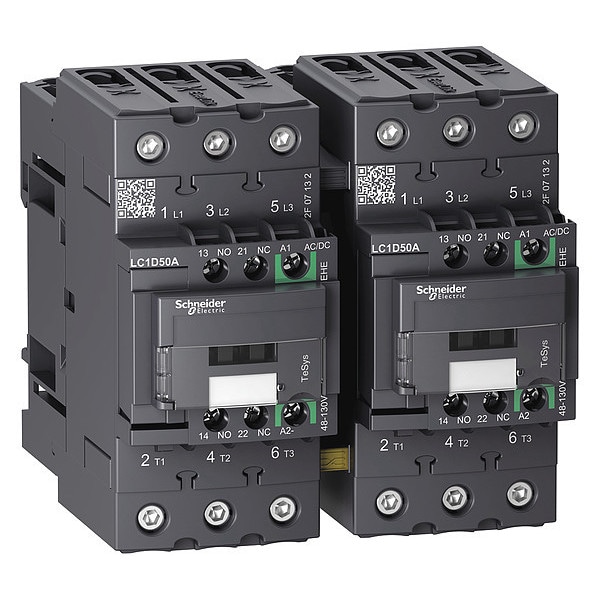

Contactores magnéticos IEC, 3 polos, 48 a 130 V CA/CD, 50 A, Reversibles: Sí.
| Full Load Amps-Inductive | 50 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 48 to 130 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 3 hp |
| Height | 4.8 in |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Width | 4.69 in |
| HP @ 3 Phase - 208V | 15 hp |
| Depth | 4.72 in |
| HP @ 3 Phase - 240V | 15 hp |
| HP @ 3 Phase - 575V | 40 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Frame / Series / Class / Code | TeSys |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO/1NC |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| IP Rating | IP20 |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Three Phase - 600V AC | 40 HP |
| Horsepower @ Three Phase - 208V AC | 15 HP |
| Electrical Operating Durability | 1,800,000, 500,000 |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Overall Depth | 4.72 in |
| Full Load Current - Inductive | 50 A |
| Full Load Current - Resistive | 80 A |
| Reversing Capability | Reversing |
| Overall Height | 4.8 in |
| Number of Auxillary Contacts | 2 |
| NEMA Enclosure Material | Not Applicable |
| Embedded Surge Suppressor | No |
| Maximum Voltage Rating | 690 V AC |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Frequency | 50/60 Hz |
| Overall Width | 4.69 in |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Mechanical Operating Durability | 6,000,000 |
| NEMA Enclosure Rating | No Enclosure |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Includes Auxiliary Contacts | Yes |
| Coil Voltage | 48-130V AC/DC |
| Maximum Operating Temperature | 140 deg F |
| Contactor Style | IEC |
| Mounting Style | DIN Rail, Plate |
| Number of Normally Open Main Contacts | 3 |
| Mechanical Durability | 6 Mcycles |
| Fuse Amps | 10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit) |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Breaking Capacity | 900 A @ 440V |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Watts Loss | 0.9W |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Operating Speed | 3600 cycles per hr |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Max. Temperature | 850°C |
| Non-Overlap Time | 1.5 msec |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 900 A @ 440V (Power Circuit) |
| Mounts On | Plate, Rail |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Working Height | Up to 9,842.52 ft |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Inrush VA | 23 VA |
| Impulse Withstand Voltage | 6 kV |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Rated Voltage | 690V AC |
| Electrical Durability | 1.8 Mcycles (42 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V) |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Hold VA | 1.4 VA |
| Impedance | 1.5 mOhm |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Rated Insulation Volts | 690V |
| Max. Operating Watts | 15 kW (at 220 to 230V AC 50 Hz), 22 kW (at 380 to 400V AC 50 Hz), 25 kW (at 415V AC 50 Hz), 30 kW (at 440V AC 50 Hz), 30 kW (at 500V AC 50 Hz), 33 kW (at 660 to 690V AC 50 Hz) |
| Includes Protective Cover | Yes |
| Net Weight | 2.164 kg |
| Fire Rating | UL 94 V1 |
| Overvoltage Category | CAT III |
| Application | Motor Control, Resistive Load |
