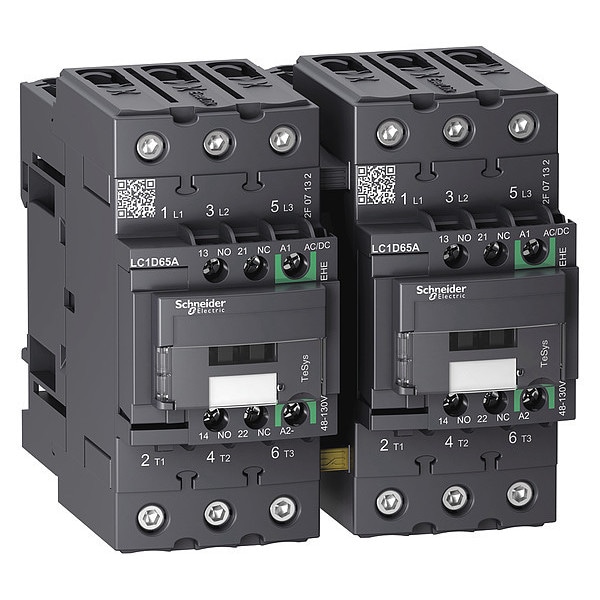

Contacto magnético IEC, 3 polos, 48 a 130 V CA/CD, 65 A, Reversión: Sí
| Full Load Amps-Inductive | 65 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 48 to 130 V AC/DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 5 hp |
| HP @ 1 Phase - 240V | 10 hp |
| Height | 4.8 in |
| HP @ 3 Phase - 208V | 20 hp |
| Width | 4.69 in |
| HP @ 3 Phase - 240V | 20 hp |
| Depth | 4.72 in |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Standards | CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1 |
| Frame / Series / Class / Code | TeSys |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 1NO/1NC |
| IP Rating | IP20 |
| Mounting Style | DIN Rail, Plate |
| Terminal Connection Type | Screw Clamp Terminals |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Single Phase - 120V AC | 5 HP |
| Horsepower @ Single Phase - 240V AC | 10 HP |
| Full Load Current - Resistive | 80 A |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 240V AC | 20 HP |
| Full Load Current - Inductive | 65 A |
| Overall Width | 4.69 in |
| Overall Height | 4.8 in |
| Number of Auxillary Contacts | 2 |
| Horsepower @ Three Phase - 208V AC | 20 HP |
| Embedded Surge Suppressor | No |
| Maximum Voltage Rating | 690 V AC |
| Overall Depth | 4.72 in |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Reversing Capability | Reversing |
| Number of Normally Open Main Contacts | 3 |
| Contactor Style | IEC |
| Coil Voltage | 48-130V AC/DC |
| Mechanical Operating Durability | 6,000,000 |
| NEMA Enclosure Rating | No Enclosure |
| NEMA Enclosure Material | Not Applicable |
| Electrical Operating Durability | 1,800,000, 500,000 |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Maximum Operating Temperature | 140 deg F |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit) |
| Rated Short-Time Withstand Current | 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit) |
| Switching Current | 5 mA (Signalling Circuit) |
| Operating Speed | 3600 cycles per hr |
| Rated Voltage | 690V AC |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Electrical Connection | Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors |
| Impedance | 1.5 mOhm |
| Non-Overlap Time | 1.5 msec |
| Max. Temperature | 850°C |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Mounts On | Plate, Rail |
| Electrical Durability | 1.8 Mcycles (57 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V) |
| Environmental Attributes | Mercury Free, Pollution Degree 3 |
| Hold VA | 1.4 VA |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Working Height | Up to 9,842.52 ft |
| Includes Protective Cover | Yes |
| Application | Motor Control, Resistive Load |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit) |
| Fire Rating | UL 94 V1 |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Max. Operating Watts | 18.5 kW (at 220 to 230V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz), 37 kW (at 415V AC 50 Hz), 37 kW (at 440V AC 50 Hz), 37 kW (at 500V AC 50 Hz), 37 kW (at 660 to 690V AC 50 Hz) |
| Rated Insulation Volts | 690V |
| Watts Loss | 0.9W |
| Overvoltage Category | CAT III |
| Rated Breaking Capacity | 1000 A @ 440V |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Control Circuit Voltage Limits | Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C) |
| Fuse Amps | 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit) |
| Inrush VA | 23 VA |
| Impulse Withstand Voltage | 6 kV |
| Mechanical Durability | 6 Mcycles |
| Features | Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar |
| Net Weight | 2.174 kg |
| Operating Time | 55 to 65 ms (Closing), 20 to 120 ms (Opening) |
| Package Quantity | 1 |
