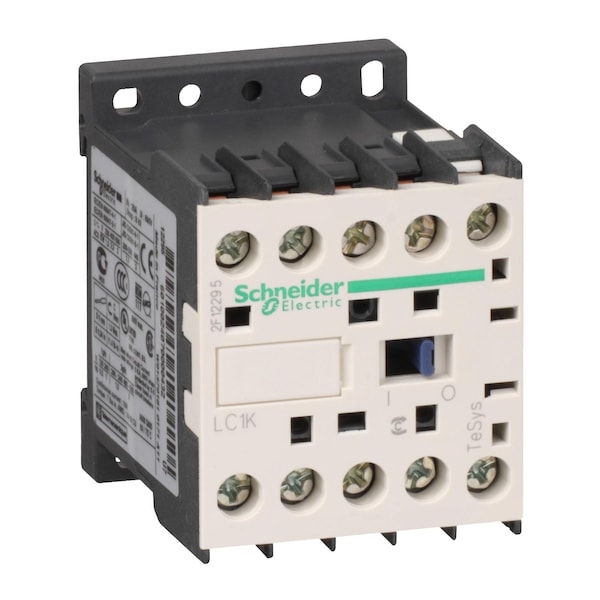

Contacto magnético IEC, 3 Polos, 48 V CA, 9 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 9 A |
| Number of Poles | 3 |
| Coil Volts | 48 V AC |
| Aux. Contact Configuration | 1NO |
| Width | 45 mm |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016 |
| Series | LC1K |
| Depth | 57 mm |
| Height | 58 mm |
| Application | Motor Control |
| Control Circuit Voltage Limits | Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.2 to 0.75 Uc (at 50°C) |
| Mechanical Durability | 10 Mcycles |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Rated Short-Time Withstand Current | 90 A (at 50°C for 1 s Power Circuit), 85 A (at 50°C for 5 s Power Circuit), 80 A (at 50°C for 10 s Power Circuit), 60 A (at 50°C for 30 s Power Circuit), 45 A (at 50°C for 1 min Power Circuit), 40 A (at 50°C for 3 min Power Circuit), 20 A (at 50°C for 15 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit) |
| Working Height | 6,561.68 ft |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Inrush VA | 30 VA |
| Overvoltage Category | CAT III |
| Fuse Amps | 25 A (Power Circuit), 10 A (Signalling Circuit) |
| Shock Resistance | 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open) |
| Rated Voltage | 690V AC |
| Max. Operating Watts | 1.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 2.2 kW (at 380 to 415V AC 50/60 Hz AC-3), 3 kW (at 440V AC 50/60 Hz AC-3), 3 kW (at 480V AC 50/60 Hz AC-3), 3 kW (at 500 to 600V AC 50/60 Hz AC-3), 3 kW (at 660 to 690V AC 50/60 Hz AC-3), 1.5 kW (at 400V AC 50/60 Hz AC-4), 1.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 2.2 kW(at 380 to 415V AC 50/60 Hz AC-3e), 3 kW (at 440V AC 50/60 Hz AC-3e), 3 kW (at 480V AC 50/60 Hz AC-3e), 3 kW (at 500 to 600V AC 50/60 Hz AC-3e), 3 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Electrical Durability | 1.3 Mcycles (6 A, AC-3, Less than 440 V); 1.3 Mcycles (6 A, AC-3e, Less than 440 V) |
| Signalling Circuit Frequency | Less Than 400 Hz |
| Impedance | 3 mOhm |
| Tightening Torque | 0.8 to 1.3 Nm |
| Electrical Connection | Screw Clamp Terminals |
| Hold VA | 4.5 VA |
| Switching Voltage | 17 V (Signalling Circuit) |
| Operating Speed | 3600 cycles per hr |
| Rated Insulation Volts | 600/690V |
| Net Weight | 0.18 kg |
| Watts Loss | 1.3W |
| Rated Breaking Capacity | 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V |
| Mounts On | Plate, Rail |
| Switching Current | 5 mA (Signalling Circuit) |
| Thermal Amperage | 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit) |
| IP Rating | IP2X |
| Rated Making Capacity | 110 A |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Impulse Withstand Voltage | 8 kV |
| Operating Time | 10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing) |
| Ip Degree of Protection | IP2X VDE 0106 |
| Flame Retardance | V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102 |
| Heat Dissipation | 1.3-1.3 W |
| Connections - Terminals | screw clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible without cable end, screw clamp terminals 1 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 2 0.75-4 mm²flexible without cable end, screw clamp terminals 2 0.34-1.5 mm²flexible with cable end |
| Auxiliary Contacts Type | Instantaneous 1 NO |
| Ambient Air Temperature For Storage | -50-80°C |
| Control Circuit Type | AC 50/60 Hz |
| Non Overlap Distance | 0.5 mm |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz |
| Average Impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Auxiliary Contact Composition | 1 NO |
| Device Application | Control |
| Product or Component Type | contactor |
| Inrush Power In Va | 30-30 VA (at 20°C) |
| Insulation Resistance | > 10 MOhm for signalling circuit |
| Utilisation Category | AC-3, AC-3e, AC-4 |
| [Ui] Rated Insulation Voltage | power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-5-1, signalling circuit 600 V UL 508, power circuit 600 V CSA C22.2 No 14, signalling circuit 600 V CSA C22.2 No 14 |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Irms Rated Making Capacity | 110 A AC for power circuit conforming to IEC 60947, 110 A AC for signalling circuit conforming to IEC 60947 |
| [Ie] Rated Operational Current | 6 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 6 A (at <60°C) at <= 440 V AC AC-3e for power circuit |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Protective Treatment | TC IEC 60068 TC DIN 50016 |
| [Icw] Rated Short-Time Withstand Current | 90 A 50°C - 1 s for power circuit, 85 A 50°C - 5 s for power circuit, 80 A 50°C - 10 s for power circuit, 60 A 50°C - 30 s for power circuit, 45 A 50°C - 1 min for power circuit, 40 A 50°C - 3 min for power circuit, 20 A 50°C - >= 15 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit, 110 A - 100 ms for signalling circuit |
| Hold-In Power Consumption In Va | 4.5-4.5 VA (at 20°C) |
| Mechanical Robustness | shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 |
| Maximum Operating Rate | 3600 cyc/h |
| Pole Contact Composition | 3 NO |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| [Uc] Control Circuit Voltage | 48 V AC 50/60 Hz |
| Range | TeSys |
| Mounting Support | Rail, Plate |
| Poles Description | 3P |
| [Ith] Conventional Free Air Thermal Current | 20 A (at 60°C) for power circuit, 10 A (at 50°C) for signalling circuit |
| Associated Fuse Rating | 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit, 10 A gG for signalling circuit conforming to IEC 60947, 10 A gG for signalling circuit conforming to VDE 0660 |
| Motor Power Kw | 1.5 kW 220...230 V AC 50/60 Hz AC-3, 2.2 kW 380...415 V AC 50/60 Hz AC-3, 3 kW 440/690 V AC 50/60 Hz AC-3, 1.5 kW 220...230 V AC 50/60 Hz AC-3e, 2.2 kW 380...415 V AC 50/60 Hz AC-3e, 3 kW 440/690 V AC 50/60 Hz AC-3e, 1.5 kW 220...230 V AC 50/60 Hz AC-4, 2.2 kW 380...415 V AC 50/60 Hz AC-4, 3 kW 440/690 V AC 50/60 Hz AC-4 |
| Package Quantity | 1 |
