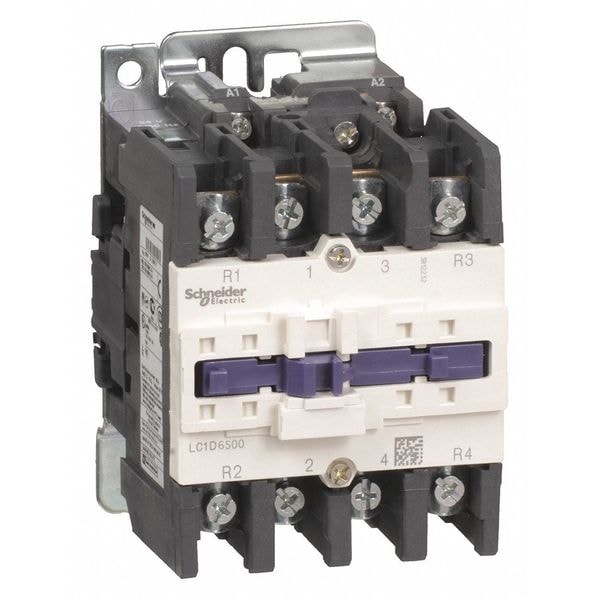

Contacto magnético IEC, 4 polos, 110 V CA, 65 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 65 A |
| Number of Poles | 4 |
| Coil Volts | 110 V AC |
| Height | 127 mm |
| Width | 85 mm |
| Depth | 125 mm |
| Aux. Contact Configuration | 2NO, 2NC |
| Series | LC1D |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL, CCC, GL, LROS, GOST, CSA, RINA, BV, DNV, THIEC 60068-2-30 |
| Shock Resistance | 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open) |
| Inrush VA | 140 VA (at 60 Hz 20°C), 160 VA (at 50 Hz 20°C) |
| Rated Making Capacity | 1000 A @ 440V |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| IP Rating | IP20 |
| Application | Resistive Load |
| Rated Short-Time Withstand Current | 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit) |
| Impulse Withstand Voltage | 6 kV |
| Vibration Resistance | 3 G (Contactor Closed), 2 G (Contactor Open) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Operating Time | 4 to 19 ms (Opening), 12 to 26 ms (Closing) |
| Overvoltage Category | CAT III |
| Mechanical Durability | 6 Mcycles |
| Fire Rating | UL 94 V1 |
| Rated Breaking Capacity | 1000 A @ 440V |
| Impedance | 1.5 mOhm |
| Max. Temperature | 850°C |
| Working Height | Up to 9,842.52 ft |
| Rated Voltage | 690V AC, 300V DC |
| Hold VA | 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C) |
| Electrical Connection | Screw Clamp Terminals |
| Thermal Amperage | 80 A (at 60°C Power Circuit) |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Mounts On | Plate, Rail |
| Includes Protective Cover | No |
| Electrical Durability | 1.4 Mcycles (80 A, AC-1, Less than 440 V) |
| Fuse Amps | 125 A (Type 1 and 2 Power Circuit) |
| Operating Speed | 3600 cycles per hr |
| Rated Insulation Volts | 600/690V |
| Features | Without Built-In Suppressor Module |
| Watts Loss | 4 to 5W |
| Net Weight | 1.45 kg |
| Package Quantity | 1 |
