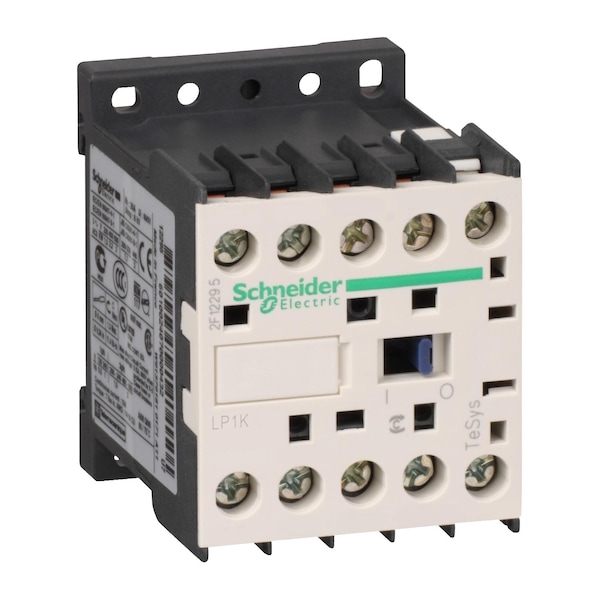

Contacto magnético IEC, 4 polos, 12 V DC, 12 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 12 A |
| Full Load Amps-Resistive | 20 A |
| Number of Poles | 4 |
| Coil Volts | 12 V DC |
| Aux. Contact Configuration | 4NO |
| Depth | 57 mm |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA |
| Height | 58 mm |
| Series | LP1K |
| Width | 45 mm |
| Application | Resistive Load |
| Rated Making Capacity | 144 A (AC Power Circuit) |
| Rated Insulation Volts | 600/690V |
| Tightening Torque | 0.8 to 1.3 Nm |
| Impulse Withstand Voltage | 8 kV |
| Electrical Durability | 0.3 Mcycles 20 A AC-1 <= 690 V |
| Overvoltage Category | CAT III |
| Net Weight | 0.225 kg |
| Rated Voltage | 690V AC |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Operating Speed | 3600 cycles per hr |
| Control Circuit Voltage Limits | Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C) |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Operating Time | 30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening) |
| Thermal Amperage | 20 A (at 50°C Power Circuit) |
| Working Height | 6,561.68 ft |
| Mechanical Durability | 10 Mcycles |
| Rated Breaking Capacity | 110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V |
| Fuse Amps | 25 A |
| Impedance | 3 mOhm |
| Mounts On | Plate, Rail |
| [Ith] Conventional Free Air Thermal Current | 20 A (at 60°C) for power circuit, 10 A (at 50°C) for signalling circuit |
| Flame Retardance | V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102 |
| Connections - Terminals | screw clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible without cable end, screw clamp terminals 1 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 2 0.75-4 mm²flexible without cable end, screw clamp terminals 2 0.34-1.5 mm²flexible with cable end, power circuit screw clamp terminals 2 1.5-1.5 mm²flexible with cable end |
| Pole Contact Composition | 4 NO |
| Heat Dissipation | 1.3-1.3 W |
| [Ui] Rated Insulation Voltage | power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA C22.2 No 14 |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz |
| Hold-In Power Consumption In W | 3-3 W 20°C |
| [Icw] Rated Short-Time Withstand Current | 115 A 50°C - 1 s for power circuit, 105 A 50°C - 5 s for power circuit, 100 A 50°C - 10 s for power circuit, 75 A 50°C - 30 s for power circuit, 55 A 50°C - 1 min for power circuit, 50 A 50°C - 3 min for power circuit, 25 A 50°C - >= 15 min for power circuit |
| Ambient Air Temperature For Storage | -50-80°C |
| Ambient Air Temperature For Operation | -25-50°C |
| Utilisation Category | AC-1 |
| Average Impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Irms Rated Making Capacity | 144 A AC for power circuit conforming to IEC 60947 |
| Mounting Support | Rail, Plate |
| Maximum Operating Rate | 3600 cyc/h |
| Product or Component Type | contactor |
| Inrush Power In W | 3-3 W 20°C |
| Ip Degree of Protection | IP2X |
| Associated Fuse Rating | 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit |
| Poles Description | 4P |
| Control Circuit Type | DC standard |
| Range | TeSys |
| [Ie] Rated Operational Current | 20 A (at <60°C) at <= 690 V AC AC-1 for power circuit |
| Package Quantity | 1 |
