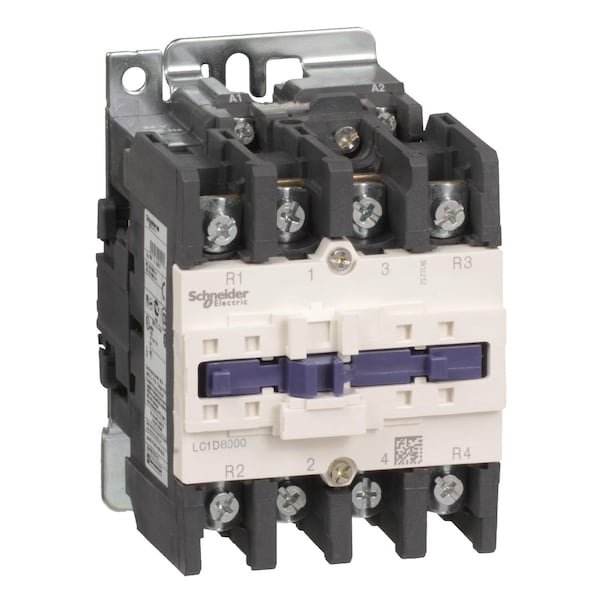

Contacto magnético IEC, 4 polos, 120 V CA, 80 A.
| Full Load Amps-Inductive | 80 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 125 A |
| Number of Poles | 4 |
| Coil Volts | 120 V AC |
| Height | 127 mm |
| Width | 96 mm |
| Depth | 125 mm |
| Aux. Contact Configuration | 4NO |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, BV, RINA, GOST, LROS, DNV, GL, CCC, UL, CSA, THIEC 60068-2-30 |
| Series | LC1D |
| Features | Without Built-In Suppressor Module |
| Application | Resistive Load |
| Fire Rating | UL 94 V1 |
| Tightening Torque | 1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Impedance | 0.8 mOhm |
| Vibration Resistance | 3 G (Contactor Closed), 2 G (Contactor Open) |
| Max. Temperature | 850°C |
| Thermal Amperage | 125 A (at 60°C Power Circuit) |
| Mechanical Durability | 10 Mcycles |
| Includes Protective Cover | No |
| Impulse Withstand Voltage | 8 kV |
| Rated Making Capacity | 1100 A @ 440V (Power Circuit) |
| Hold VA | 22 VA |
| Control Circuit Voltage Limits | Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 1 to 1.1 Uc (at 55 to 70°C 60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz) |
| Overvoltage Category | CAT III |
| Max. Operating Watts | 22 kW (at 220 to 230V AC 50/60 Hz), 37 kW (at 380 to 400V AC 50/60 Hz), 45 kW (at 660 to 690V AC 50/60 Hz), 55 kW (at 500V AC 50/60 Hz), 45 kW (at 415 to 440V AC 50/60 Hz) |
| Electrical Connection | Screw Clamp Terminals |
| Fuse Amps | 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit) |
| Rated Breaking Capacity | 1100 A @ 440V |
| Mounts On | Plate, Rail |
| Inrush VA | 220 VA |
| Rated Short-Time Withstand Current | 640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit) |
| Rated Insulation Volts | 600/1000V |
| IP Rating | IP20 |
| Electrical Durability | 0.8 Mcycles (125 A, AC-1, Less than 440 V) |
| Shock Resistance | 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open) |
| Watts Loss | 6 to 10W |
| Operating Time | 20 to 35 ms (Closing), 6 to 20 ms (Opening) |
| Operating Speed | 3600 cycles per hr |
| Rated Voltage | 690V AC, 300V DC |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Net Weight | 1.76 kg |
| Working Height | Up to 9,842.52 ft |
| Maximum Operating Rate | 3600 cyc/h 60°C |
| Mechanical Robustness | vibrations contactor open 2 Gn, 5...300 Hz) , shocks contactor open 8 Gn for 11 ms) , vibrations contactor closed 3 Gn, 5...300 Hz) , shocks contactor closed 10 Gn for 11 ms) |
| Inrush Power In Va | 220-220 VA 60 Hz cos phi 0.75 (at 20°C) |
| [Ue] Rated Operational Voltage | power circuit <= 300 V DC 25...400 Hz, power circuit <= 690 V AC |
| Motor Power Kw | 22 kW at 220...230 V AC 50/60 Hz, 37 kW at 380...400 V AC 50/60 Hz, 45 kW at 660...690 V AC 50/60 Hz, 55 kW at 500 V AC 50/60 Hz, 45 kW at 415...440 V AC 50/60 Hz |
| Pvc Free | Yes |
| Power Dissipation Per Pole | 12.5 W AC-1 |
| Pole Contact Composition | 4 NO |
| Poles Description | 4P |
| Protective Treatment | THIEC 60068-2-30 |
| Protective Cover | Without |
| Control Circuit Type | AC 60 Hz |
| [Ith] Conventional Free Air Thermal Current | 125 A (at 60°C) for power circuit |
| Product or Component Type | contactor |
| Mounting Support | Rail, Plate |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947 |
| Range | TeSys |
| Flame Retardance | V1 conforming to UL 94 |
| Heat Dissipation | 6-10 W at 60 Hz |
| Pollution Degree | 3 |
| Irms Rated Making Capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| Average Impedance | 0.8 mOhm - Ith 125 A 50 Hz for power circuit |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Permissible Ambient Air Temperature Around The Device | -40-60°C, 60-70°C with derating |
| Climatic Withstand | IACS E10 exposure to damp heat |
| Fire Resistance | 850°C IEC 60695-2-1 |
| Ip Degree of Protection | IP20 front face IEC 60529 |
| [Uc] Control Circuit Voltage | 120 V AC 60 Hz |
| [Ie] Rated Operational Current | 125 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 80 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60°C) at <= 440 V AC AC-3e for power circuit, 55 A (at <60°C) at <= 400 V AC AC-4 for power circuit |
| Hold-In Power Consumption In Va | 22-22 VA 60 Hz cos phi 0.3 (at 20°C) |
| Associated Fuse Rating | 200 A gG at <= 690 V coordination type 1 for power circuit, 160 A gG at <= 690 V coordination type 2 for power circuit |
| Connections - Terminals | control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end |
| [Ui] Rated Insulation Voltage | power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1 |
| [Icw] Rated Short-Time Withstand Current | 640 A 40°C - 10 s for power circuit, 990 A 40°C - 1 s for power circuit, 135 A 40°C - 10 min for power circuit, 320 A 40°C - 1 min for power circuit |
| Utilisation Category | AC-1, AC-3, AC-3e, AC-4 |
| Range of Product | TeSys Deca |
| Package Quantity | 1 |
