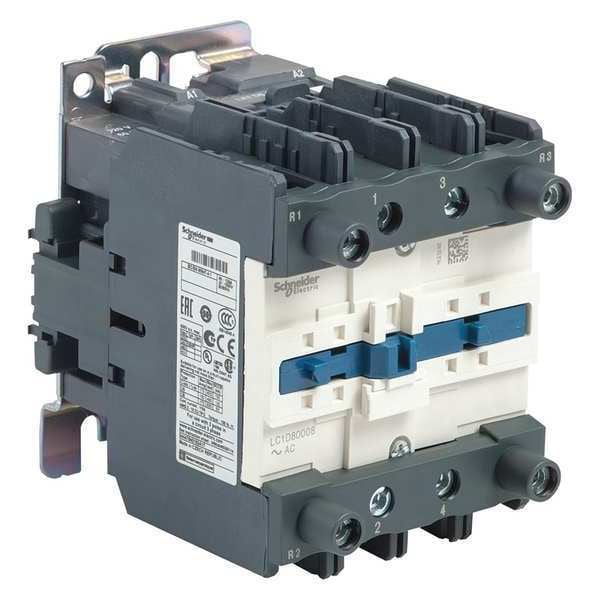

Contactor magnético IEC, 4 polos, 120 V CA, 80 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 80 A |
| Number of Poles | 4 |
| Coil Volts | 120 V AC |
| Height | 127 mm |
| Width | 96 mm |
| Depth | 140 mm |
| Aux. Contact Configuration | 2NO, 2NC |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, BV, CSA, GOST, LROS, GL, RINA, UL, DNV, CCC, THIEC 60068-2-30 |
| Series | LC1D |
| Electrical Connection | Screw Clamp Terminals |
| Max. Temperature | 850°C |
| Impulse Withstand Voltage | 8 kV |
| Overvoltage Category | CAT III |
| Rated Short-Time Withstand Current | 640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit) |
| Fuse Amps | 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit) |
| Rated Insulation Volts | 600/1000V |
| Mounts On | Plate, Rail |
| IP Rating | IP20 |
| Includes Protective Cover | No |
| Watts Loss | 6 to 10W |
| Rated Voltage | 690V AC, 300V DC |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Electrical Durability | 0.8 Mcycles (125 A, AC-1, Less than 440 V) |
| Rated Breaking Capacity | 1100 A @ 440V |
| Net Weight | 1.84 kg |
| Vibration Resistance | 3 G (Contactor Closed), 2 G (Contactor Open) |
| Application | Resistive Load |
| Mechanical Durability | 10 Mcycles |
| Operating Time | 20 to 35 ms (Closing), 6 to 20 ms (Opening) |
| Working Height | Up to 9,842.52 ft |
| Tightening Torque | 1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Shock Resistance | 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open) |
| Rated Making Capacity | 1100 A @ 440V (Power Circuit) |
| Control Circuit Voltage Limits | Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 1 to 1.1 Uc (at 55 to 70°C 60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz) |
| Thermal Amperage | 125 A (at 60°C Power Circuit) |
| Features | Without Built-In Suppressor Module |
| Hold VA | 22 VA |
| Fire Rating | UL 94 V1 |
| Impedance | 0.8 mOhm |
| Operating Speed | 3600 cycles per hr |
| Inrush VA | 220 VA |
| Package Quantity | 1 |
