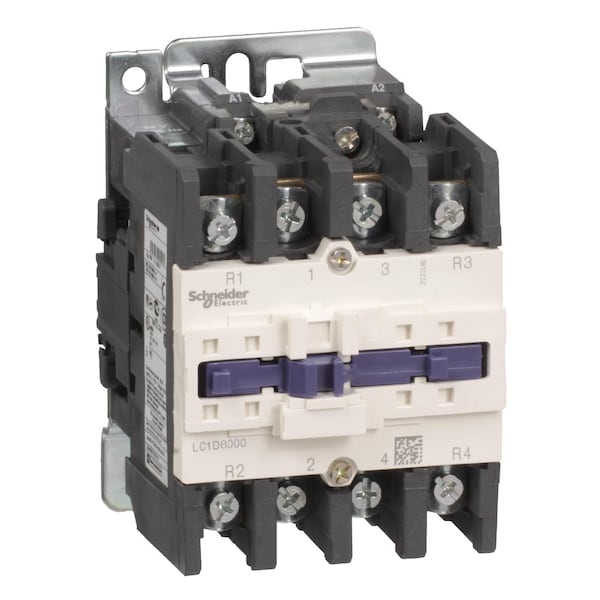

Contactor magnético IEC, 4 polos, 120 V CA, 80 A.
| Full Load Amps-Inductive | 80 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Number of Poles | 4 |
| Coil Volts | 120 V AC |
| Height | 127 mm |
| Width | 96 mm |
| Depth | 140 mm |
| Aux. Contact Configuration | 2NO, 2NC |
| Standards | EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, UL, CSA, CCC, EAC, UKCA, CB, EU-RO-MR by DNV-GL, THIEC 60068-2-30 |
| Series | LC1D |
| Application | Resistive Load |
| Features | Without Built-In Suppressor Module |
| Mounts On | Plate, Rail |
| Includes Protective Cover | No |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Net Weight | 1.84 kg |
| IP Rating | IP20 |
| Control Circuit Voltage Limits | Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 0.8 to 1.1 Uc (at -40 to 55°C 50 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 55°C 50/60 Hz) |
| Inrush VA | 245 VA |
| Impedance | 0.8 mOhm |
| Vibration Resistance | 3 G (Contactor Closed), 2 G (Contactor Open) |
| Hold VA | 26 VA |
| Operating Speed | 3600 cycles per hr |
| Fuse Amps | 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit) |
| Electrical Connection | Screw Clamp Terminals |
| Rated Voltage | 690V AC |
| Max. Temperature | 850°C |
| Tightening Torque | 1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Fire Rating | UL 94 V1 |
| Operating Time | 20 to 35 ms (Closing), 6 to 20 ms (Opening) |
| Mechanical Durability | 4 Mcycles |
| Shock Resistance | 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open) |
| Thermal Amperage | 125 A (at 60°C Power Circuit) |
| Overvoltage Category | CAT III |
| Rated Making Capacity | 1100 A @ 440V (Power Circuit) |
| Rated Breaking Capacity | 1100 A @ 440V |
| Working Height | Up to 9,842.52 ft |
| Impulse Withstand Voltage | 8 kV |
| Electrical Durability | 0.8 Mcycles (125 A, AC-1, Less than 440 V) |
| Rated Short-Time Withstand Current | 640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit) |
| Rated Insulation Volts | 600/1000V |
| Watts Loss | 6 to 10W |
| Rated Insulation Voltage | Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 1000 V IEC 60947-4-1 |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Control Circuit Voltage | 120 V AC 50/60 Hz |
| Utilisation Category | AC-1 |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Power Dissipation Per Pole | 12.5 W AC-1 |
| Product Certifications | UL; CSA; CCC; EAC; UKCA; CB; EU-RO-MR by DNV-GL |
| Permissible Ambient Air Temperature Around The Device | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Flame Retardance | V1 conforming to UL 94 |
| Climatic Withstand | IACS E10 exposure to damp heat |
| IRMS Rated Making Capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| Conventional Free Air Thermal Current | 125 A (at 140°F (60°C)) for power circuit |
| Protective Treatment | THIEC 60068-2-30 |
| Poles Description | 4P |
| Rated Operational Current | 125 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit |
| Mounting Support | Rail |
| Inrush Power in VA | 245 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 245 VA 50 Hz cos phi 0.75 (at 68°F (20°C)) |
| Product Or Component Type | Contactor |
| Contact Compatibility | M1 |
| Pole Contact Composition | 2 NO + 2 NC |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Associated Fuse Rating | 200 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 160 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz |
| Control Circuit Type | AC 50/60 Hz |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Rated Impulse Withstand Voltage | 8 kV IEC 60947 |
| Rated Short Time Withstand Current | 640 A 104°F (40°C) - 10 s for power circuit; 990 A 104°F (40°C) - 1 s for power circuit; 135 A 104°F (40°C) - 10 min for power circuit; 320 A 104°F (40°C) - 1 min for power circuit |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Hold-In Power Consumption in VA | 26 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 26 VA 50 Hz cos phi 0.3 (at 68°F (20°C)) |
| Average Impedance | 0.8 mOhm - Ith 125 A 50 Hz for power circuit |
| Mechanical Robustness | Vibrations contactor open 2 Gn, 5 to 300 Hz); Shocks contactor open 8 Gn for 11 ms); Vibrations contactor closed 3 Gn, 5 to 300 Hz); Shocks contactor closed 10 Gn for 11 ms) |
| Connections - Terminals | Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Power circuit: connector 1 0.01 to 0.08 in² (4 to 50 mm²) - cable stiffness: flexible without cable end; Power circuit: connector 2 0.01 to 0.04 in² (4 to 25 mm²) - cable stiffness: flexible without cable end; Power circuit: connector 1 0.01 to 0.08 in² (4 to 50 mm²) - cable stiffness: flexible with cable end; Power circuit: connector 2 0.01 to 0.02 in² (4 to 16 mm²) - cable stiffness: flexible with cable end; Power circuit: connector 1 0.01 to 0.08 in² (4 to 50 mm²) - cable stiffness: solid without cable end; Power circuit: connector 2 0.01 to 0.04 in² (4 to 25 mm²) - cable stiffness: solid without cable end |
| Pollution Degree | 3 |
| Protective Cover | Without |
| Heat Dissipation | 6 to 10 W at 50/60 Hz |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hz |
| Pvc Free | Yes |
| [Ith] Conventional Free Air Thermal Current | 125 A (at 60°C) for power circuit |
| [Ie] Rated Operational Current | 125 A (at <60°C) at <= 440 V AC AC-1 for power circuit |
| Range of Product | TeSys Deca |
| Range | TeSys |
| [Ui] Rated Insulation Voltage | power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1 |
| [Icw] Rated Short-Time Withstand Current | 640 A 40°C - 10 s for power circuit, 990 A 40°C - 1 s for power circuit, 135 A 40°C - 10 min for power circuit, 320 A 40°C - 1 min for power circuit |
| Package Quantity | 1 |
