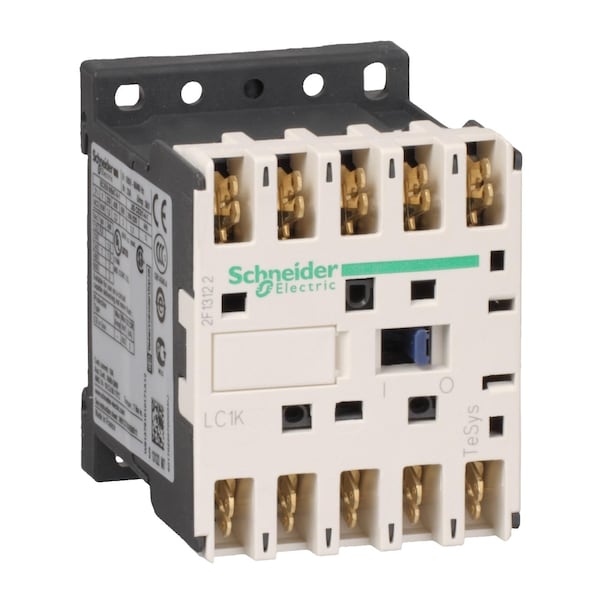

Contactador magnético IEC, 4 Polos, 220 V CA, 9 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 9 A |
| Full Load Amps-Resistive | 20 A |
| Coil Volts | 220 V AC |
| Number of Poles | 4 |
| Height | 58 mm |
| Width | 45 mm |
| Depth | 57 mm |
| Aux. Contact Configuration | 2NO, 2NC |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1 |
| Series | LC1K |
| Application | Resistive Load |
| Signalling Circuit Frequency | <= 400 Hz |
| Average Impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Protective Treatment | TC IEC 60068 TC DIN 50016 |
| Mechanical Durability | 10 Mcycles |
| Overvoltage Category | III |
| Flame Retardance | V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102 |
| Utilisation Category | AC-1 |
| Ip Degree of Protection | IP2X VDE 0106 |
| Heat Dissipation | 1.3-1.3 W |
| [Ui] Rated Insulation Voltage | power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA C22.2 No 14 |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Device Short Name | LC1K |
| Device Application | Control |
| Mechanical Robustness | shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -50-80°C |
| Product or Component Type | contactor |
| Hold-In Power Consumption In Va | 4.5-4.5 VA (at 20°C) |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Inrush Power In Va | 30-30 VA (at 20°C) |
| Irms Rated Making Capacity | 110 A AC for power circuit conforming to IEC 60947 |
| Operating Time | 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing, 15...25 ms coil de-energisation and NC closing, 5...15 ms coil energisation and NC opening |
| [Ith] Conventional Free Air Thermal Current | 20 A (at 60°C) for power circuit, 10 A (at 50°C) for signalling circuit |
| Poles Description | 4P |
| Mounting Support | Rail, Plate |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz |
| Connections - Terminals | Faston terminals 2 2.8 mm) , Faston terminals 1 6.35 mm) |
| Control Circuit Type | AC 50/60 Hz |
| Associated Fuse Rating | 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit |
| [Uc] Control Circuit Voltage | 220...230 V AC 50/60 Hz |
| [Icw] Rated Short-Time Withstand Current | 90 A 50°C - 1 s for power circuit, 85 A 50°C - 5 s for power circuit, 80 A 50°C - 10 s for power circuit, 60 A 50°C - 30 s for power circuit, 45 A 50°C - 1 min for power circuit, 40 A 50°C - 3 min for power circuit, 20 A 50°C - >= 15 min for power circuit |
| Control Circuit Voltage Limits | operational: 0.8...1.15 Uc (at <50°C), drop-out: >= 0.20 Uc (at <50°C) |
| [Ie] Rated Operational Current | 20 A (at <60°C) at <= 690 V AC AC-1 for power circuit |
| Contactor Application | Resistive load |
| Pole Contact Composition | 2 NO + 2 NC |
| Range | TeSys |
| Maximum Operating Rate | 3600 cyc/h |
| Rated Breaking Capacity | 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947 |
| Electrical Durability | 0.16 Mcycles 20 A AC-1 <= 690 V |
| Working Height | 6,561.68 ft |
| IP Rating | IP2X |
| Mounts On | Plate, Rail |
| Inrush VA | 30 VA |
| Operating Speed | 3600 cycles per hr |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Rated Short-Time Withstand Current | 90 A (at 50°C for 1 s Power Circuit), 85 A (at 50°C for 5 s Power Circuit), 80 A (at 50°C for 10 s Power Circuit), 60 A (at 50°C for 30 s Power Circuit), 45 A (at 50°C for 1 min Power Circuit), 40 A (at 50°C for 3 min Power Circuit), 20 A (at 50°C for 15 min Power Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Fuse Amps | 25 A |
| Electrical Connection | Faston Terminals |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Rated Making Capacity | 110 A (AC Power Circuit) |
| Rated Insulation Volts | 600/690V |
| Rated Voltage | 690V AC |
| Watts Loss | 1.3W |
| Impedance | 3 mOhm |
| Impulse Withstand Voltage | 8 kV |
| Net Weight | 0.18 kg |
| Shock Resistance | 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open) |
| Thermal Amperage | 20 A (at 50°C Power Circuit) |
| Hold VA | 4.5 VA |
| Package Quantity | 1 |
