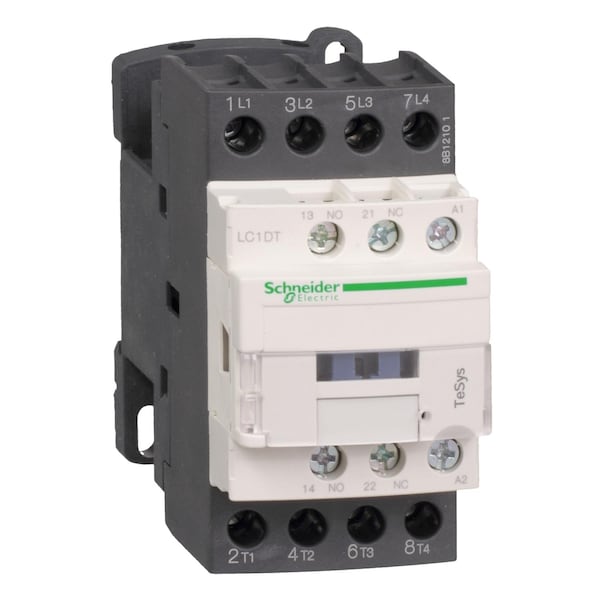

Contacto magnético IEC, 4 polos, 24 V CC, 20 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 20 A |
| Number of Poles | 4 |
| Coil Volts | 24 V DC |
| Height | 85 mm |
| Width | 45 mm |
| Depth | 99 mm |
| Aux. Contact Configuration | 1NO, 1NC |
| Series | LC1D |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, GOST, CSA, RINA, CCC, BV, LROS, DNV, GL, THIEC 60068-2-30 |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Application | Resistive Load |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Short-Time Withstand Current | 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 20 A (at 60°C Power Circuit) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 250 A @ 440V (Power Circuit) |
| Operating Speed | 3600 cycles per hr |
| Rated Insulation Volts | 600/690V |
| Overvoltage Category | CAT III |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Net Weight | 0.365 kg |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Fuse Amps | 10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit) |
| Mechanical Durability | 30 Mcycles |
| Control Circuit Voltage Limits | Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C), Operational DC: 0.8 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C) |
| Max. Temperature | 850°C |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Operating Time | 65.45 to 88.55 ms (Closing), 20 to 30 ms (Opening) |
| Electrical Connection | Lugs-Ring Terminals |
| Rated Breaking Capacity | 250 A @ 440V |
| Non-Overlap Time | 1.5 msec |
| Rated Voltage | 690V AC, 300V DC |
| Mounts On | Plate, Rail |
| Switching Voltage | 17 V (Signalling Circuit) |
| Working Height | Up to 9,842.52 ft |
| Impedance | 2.5 mOhm |
| Tightening Torque | 1.7 Nm |
| IP Rating | IP20 |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Includes Protective Cover | Yes |
| Shock Resistance | 10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Fire Rating | UL 94 V1 |
| Impulse Withstand Voltage | 6 kV |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60°C) for signalling circuit, 20 A (at 60°C) for power circuit |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 25 A gG at <= 690 V coordination type 1 for power circuit, 20 A gG at <= 690 V coordination type 2 for power circuit |
| [Icw] Rated Short-Time Withstand Current | 30 A 40°C - 10 min for power circuit, 61 A 40°C - 1 min for power circuit, 105 A 40°C - 10 s for power circuit, 210 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit |
| Pole Contact Composition | 4 NO |
| Time Constant | 40 msec |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Connections - Terminals | control circuit: lugs-ring terminals - external diameter: 8 mm, power circuit: lugs-ring terminals - external diameter: 8 mm |
| Inrush Power In W | 2.4-2.4 W 20°C |
| [Ui] Rated Insulation Voltage | power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL, power circuit 690 V IEC 60947-4-1 |
| Protective Cover | With |
| Range | TeSys, Deca |
| Mounting Support | Rail, Plate |
| Insulation Resistance | > 10 MOhm for signalling circuit |
| Auxiliary Contacts Type | mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1 |
| Protective Treatment | THIEC 60068-2-30 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Maximum Operating Rate | 3600 cyc/h 60°C |
| Mechanical Robustness | vibrations contactor open 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz) , shocks contactor closed 15 Gn for 11 ms) , shocks contactor open 10 Gn for 11 ms) |
| Average Impedance | 2.5 mOhm - Ith 20 A 50 Hz for power circuit |
| Flame Retardance | V1 conforming to UL 94 |
| Control Circuit Type | DC low consumption |
| Product or Component Type | contactor |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Ip Degree of Protection | IP20 front face IEC 60529 |
| Coil Technology | Built-in bidirectional peak limiting diode suppressor |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Climatic Withstand | IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat |
| Utilisation Category | AC-1 |
| Range of Product | TeSys Deca |
| Irms Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 250 A at 440 V for power circuit conforming to IEC 60947 |
| Permissible Ambient Air Temperature Around The Device | -40-60°C, 60-70°C with derating |
| Pollution Degree | 3 |
| Hold-In Power Consumption In W | 2.4-2.4 W 20°C |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC |
| [Ie] Rated Operational Current | 20 A (at <60°C) at <= 440 V AC AC-1 for power circuit |
| Fire Resistance | 850°C IEC 60695-2-1 |
| Poles Description | 4P |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Power Dissipation Per Pole | 1.56 W AC-1 |
| Package Quantity | 1 |
