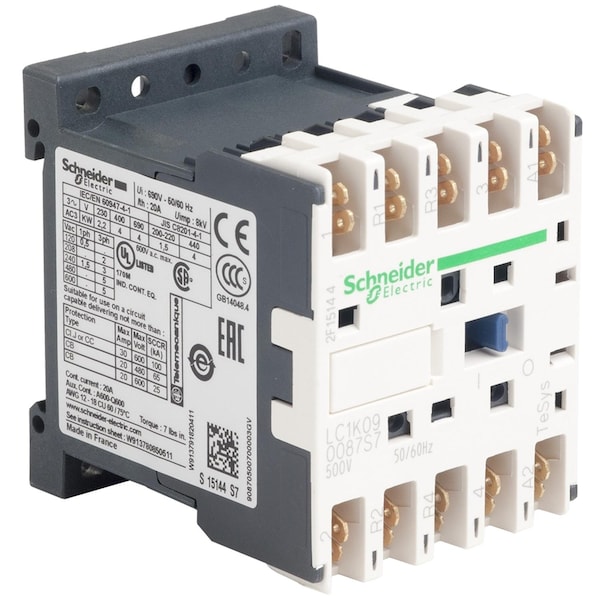

Contactor magnético IEC, 4 polos, 500 V CA, 9 A.
| Full Load Amps-Inductive | 9 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 20 A |
| Number of Poles | 4 |
| Coil Volts | 500 V AC |
| Height | 58 mm |
| Width | 45 mm |
| Depth | 57 mm |
| Aux. Contact Configuration | 2NO, 2NC |
| Series | LC1K |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016 |
| Application | Resistive Load |
| Signalling Circuit Frequency | Less Than 400 Hz |
| Fuse Amps | 25 A |
| Operating Speed | 3600 cycles per hr |
| Impulse Withstand Voltage | 8 kV |
| Working Height | 6,561.68 ft |
| Inrush VA | 30 VA |
| Hold VA | 4.5 VA |
| Rated Making Capacity | 110 A (AC Power Circuit) |
| IP Rating | IP2X |
| Mechanical Durability | 10 Mcycles |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Watts Loss | 1.3W |
| Rated Breaking Capacity | 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V |
| Rated Insulation Volts | 600/690V |
| Rated Short-Time Withstand Current | 90 A (at 50°C for 1 s Power Circuit), 85 A (at 50°C for 5 s Power Circuit), 80 A (at 50°C for 10 s Power Circuit), 60 A (at 50°C for 30 s Power Circuit), 45 A (at 50°C for 1 min Power Circuit), 40 A (at 50°C for 3 min Power Circuit), 20 A (at 50°C for 15 min Power Circuit) |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Overvoltage Category | CAT III |
| Thermal Amperage | 20 A (at 50°C Power Circuit) |
| Impedance | 3 mOhm |
| Net Weight | 0.18 kg |
| Electrical Durability | 0.18 Mcycles (20 A, AC-1, Less than 440 V) |
| Rated Voltage | 690V AC |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Operating Time | 10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing), 15 to 25 ms (Coil De-Energisation and NC Closing), 5 to 15 ms (Coil Energisation and NC Opening) |
| Control Circuit Voltage Limits | Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.2 to 0.75 Uc (at 50°C) |
| Electrical Connection | Faston Terminals |
| Mounts On | Plate, Rail |
| Shock Resistance | 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open) |
| Package Quantity | 1 |
