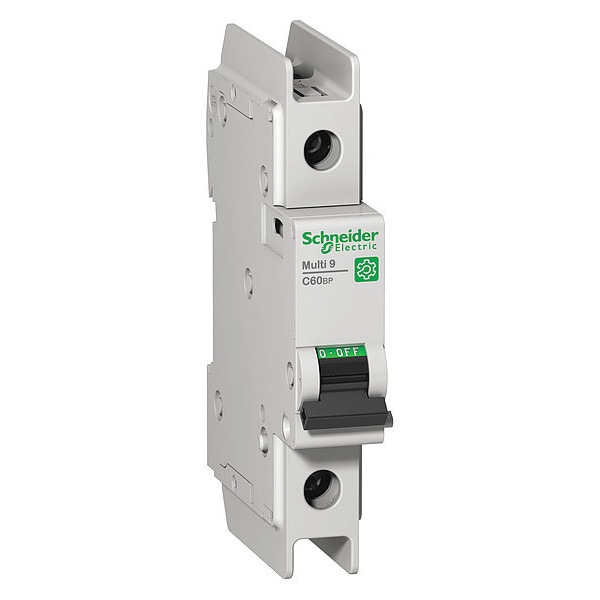

IEC Miniature Circuit Breaker, C60BP Series, 15A, 1 Pole, 240/415V AC, 14kA at 120/240V AC, Z Curve
| CAD Available | Yes |
|---|---|
| Item | IEC Miniature Circuit Breaker |
| Series | C60BP |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 240/415V AC |
| Circuit Breaker Type | Low Voltage |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 14kA at 120/240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Frame Size | 63A/C60BP |
| Width | 0.71 in |
| Depth | 2.83 in |
| Height | 4.06 in |
| DC Voltage Rating | 60V DC |
| Curve Type | Z |
| Standards | CCC, CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, UL 489 |
| Application | Branch Circuit Protection |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 18 AWG |
| Color | Gray |
| Interrupt Rating | 2.25 kA at 415V AC , 7.5 kA at 240V AC, 15 kA at 60V DC, 3 kA at 415V AC, 10 kA at 240/277V AC/60V DC, 20 kA at 60V DC, 14 kA at 120/240V AC |
| Features | Mercury Free; Padlockable |
| Min. Operating Temp. | -22 deg F |
| Max. Operating Temp. | 158 deg F |
| Meets UL Type | UL 489 |
| Length (Straight Wireway) | 4.06 in |
| Length | 4.06 in |
| Mounting | Din Rail |
| Package Quantity | 1 |
