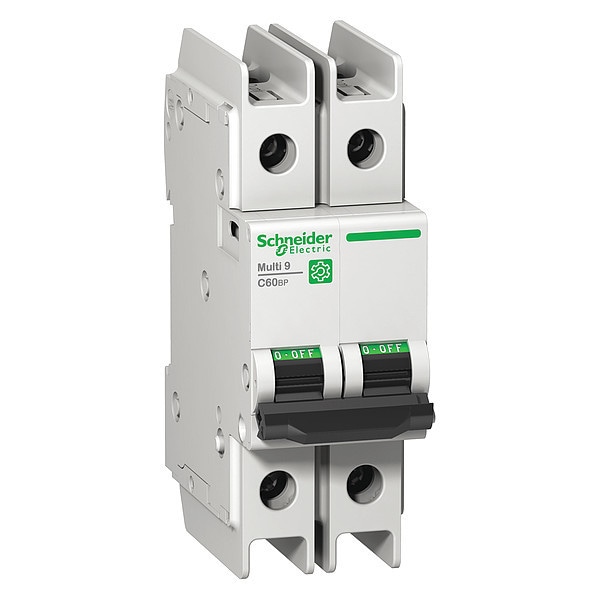

IEC Miniature Circuit Breaker, C60BP Series, 30A, 2 Pole, 240/415/440V AC, 14kA at 240V AC, C Curve
| CAD Available | Yes |
|---|---|
| Item | IEC Miniature Circuit Breaker |
| Series | C60BP |
| Amps | 30A |
| Number of Poles | 2 |
| AC Voltage Rating | 240/415/440V AC |
| Circuit Breaker Type | Low Voltage |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 14kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Frame Size | 63A/C60BP |
| Width | 1.42 in |
| Depth | 2.83 in |
| Height | 4.06 in |
| DC Voltage Rating | Not Rated |
| Curve Type | C |
| Application | Branch Circuit Protection |
| Min. Wire Size | 18 AWG |
| Max. Wire Size | 2 AWG |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, UL 489 |
| Features | Mercury Free; Padlockable |
| Color | Gray |
| Interrupt Rating | 4.5 kA at 440V AC, 7.5 kA at 415V AC, 15 kA at 240V AC, 10 kA at 240/415/480Y/277V AC/125V DC, 6 kA at 440V AC, 20 kA at 240V AC, 5 kA at 480Y/277V AC, 14 kA at 240V AC |
| Meets UL Type | UL 489 |
| Min. Operating Temp. | -22 deg F |
| Max. Operating Temp. | 158 deg F |
| Length (Straight Wireway) | 4.06 in |
| Mounting | Din Rail |
| Length | 4.06 in |
| Package Quantity | 1 |
