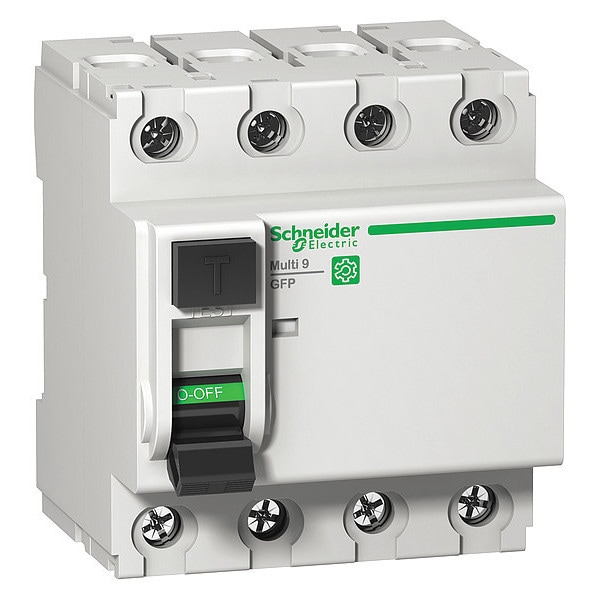

Protector suplementario IEC, 25A, 4 polos
| Item | IEC Supplementary Protector |
|---|---|
| Number of Poles | 4 |
| Curve Type | A |
| AC Voltage Rating | 240 V AC |
| Width | 2.83 in |
| Max. AIR Rating | 10 kA @ 240 V AC |
| Series | GFP |
| Terminal Connection | Tunnel |
| Depth | 2.36 in |
| Length | 3.19 in |
| Amps | 25 |
| Standards | EN/IEC 61008-1 |
| Max. Wire Size | 2 AWG |
| Min. Wire Size | 18 AWG |
| Mounting | Din Rail |
| Application | Distribution, Ground Fault Protection |
| DC Voltage Rating | Not Rated |
| Circuit Breaker Mounting Style | DIN Rail |
| Trip Type | Thermal Magnetic |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Meets UL Type | UL 1053 |
| Rated Residual Current | 86 mA |
| Length (Straight Wireway) | 3.19 in |
| Includes | Contact Position Indicator |
| Max. Operating Temp. | 60°C |
| Weight | 0.45 kg |
| Wire Strip Length | 14 mm top or bottom |
| Features | Local Signalling: ON, OFF, Fault trip Option |
| Color | Gray |
| Min. Operating Temp. | -25°C |
| Package Quantity | 1 |
