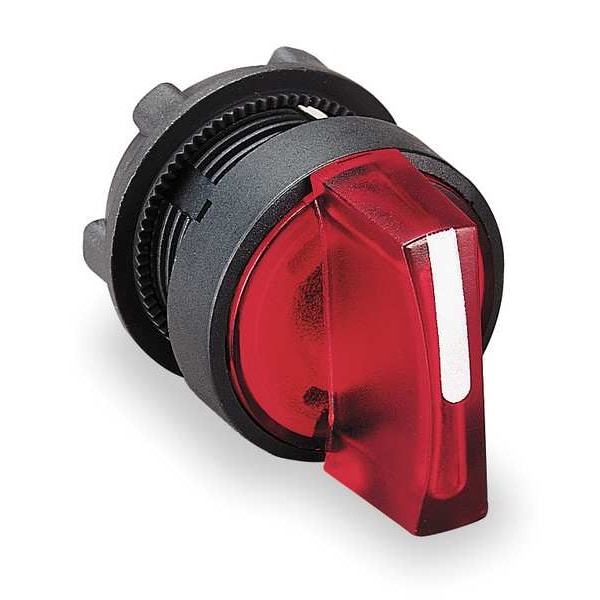

Interruptor selector Illum, 2 posiciones, 22mm, rojo.
| Item | Short-Handled Selector Switch |
|---|---|
| Size | 22 mm |
| Basic Material | Plastic |
| Type of Operator | Lever |
| Action | Maintained |
| Operator Head Material | Plastic |
| Cam | No Cam Included |
| Operator Color | Red |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Bezel Material | Plastic |
| Position | 2 |
| Bezel Color | Black |
| Switch Operation @ Position B | XXOO |
| Switch Operation @ Position C | No Third Position |
| Lamp Type | LED |
| Lamp Module Voltage | Module Not Included |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508 |
| IP Rating | IP69K, IP67, IP69, IP66 |
| Switch Operation @ Position A | OOXX |
| Lamp Module Type | Module Not Included |
| Lamp Voltage | Not Applicable |
| Replacement Lamp | Not Applicable |
| Series | XB5 |
| Product Compatibility | universal LED |
| Product Certifications | GL || LROS, UL Listed || BV || DNV || CSA |
| Overvoltage Category | class II IEC 60536 |
| Protective Treatment | TH |
| Cad Overall Width | 29 mm |
| Head Type | Standard |
| Cad Overall Height | 29 mm |
| Shape Of Signaling Unit Head | round |
| Mounting Diameter | 22 mm |
| Operator Position Information | 2 positions 90° |
| Ambient Air Temperature For Storage | -40-70°C |
| Cad Overall Depth | 43 mm |
| Operator Profile | red standard handle |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Electrical Composition Code | M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and double front mounting integral LED |
| Station Name | XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Device Presentation | basic element |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70°C |
| Device Short Name | ZB5 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Product Or Component Type | head for illuminated selector switch |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Mechanical Durability | 1,000,000 cycle |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Manufacturer Warranty Length | 18 mo |
| Includes Operator Key | Not Applicable |
| Switch Function @ 2nd Position | Not Applicable |
| Panel Cutout Diameter | 22 mm |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Function @ 3rd Position | No Third Position |
| Key Removal Position | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 1st Position | Not Applicable |
| Operator Illumination | Illuminated |
| Number of Positions | 2 |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Operator Head Type | Short-Handled Knob |
| Operator Head Color | Red |
| Package Quantity | 1 |
