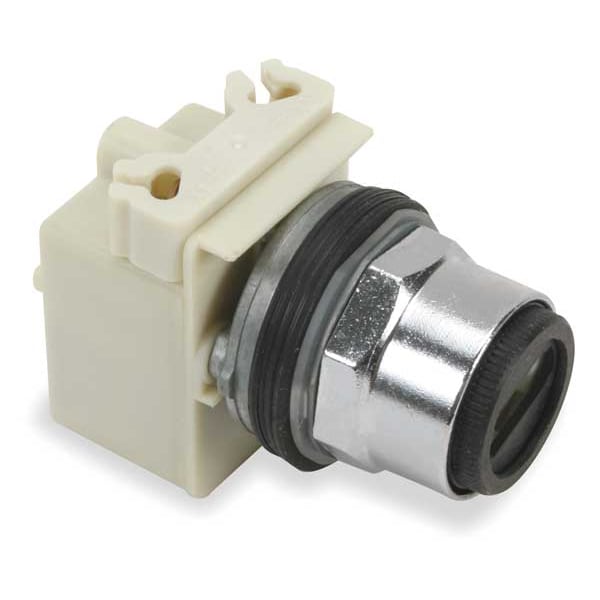

Interruptor selector de iluminación, 2 posiciones, 30mm, sin perilla.
| Item | Selector Switch Head |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Operator Not Included |
| Action | Maintained |
| Cam | E |
| Operator Head Material | Not Applicable |
| Operator Color | No Operator |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| Bezel Material | Metal |
| Position | 2 |
| Bezel Color | Chrome |
| Switch Operation @ Position B | OX |
| Lamp Module Type | Transformer |
| IP Rating | IP65 |
| Switch Operation @ Position C | No Third Position |
| Lamp Voltage | 2.4V AC |
| Replacement Lamp | 2,550,101,020 |
| Lamp Module Voltage | 110 to 120V AC |
| Lamp Type | Incandescent |
| Standards | CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR |
| Switch Operation @ Position A | XO |
| Series | 9001K |
| Device Short Name | K |
| Operator Profile | without handle, 1 projecting push-button |
| Light Block Supply | via transformer 120 V AC 50/60 Hz || via transformer 110 V AC 50/60 Hz, via integral transformer |
| Bulb Base | BA 9s |
| Operator Position Information | 2 positions |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Cap/Operator Or Lens Colour | without cap |
| Contacts Type And Composition | without contact block |
| Product Or Component Type | head for illuminated selector switch |
| Product Certifications | UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE |
| [Us] Rated Supply Voltage | 110 to 120 V |
| Enclosure Type | dust and oil resistant weatherproof enclosure indoor/outdoor |
| Mounting Diameter | 30 mm |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 1st Position | Not Applicable |
| Operator Illumination | Illuminated |
| Switch Function @ 2nd Position | Not Applicable |
| Switch Function @ 4th Position | No Fourth Position |
| Operator Head Type | No Head Included |
| Manufacturer Warranty Length | 18 mo |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 2, 3R |
| Key Removal Position | Not Applicable |
| Switch Function @ 3rd Position | No Third Position |
| Includes Operator Key | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Operator Head Color | Not Applicable |
| Number of Positions | 2 |
| Package Quantity | 1 |
