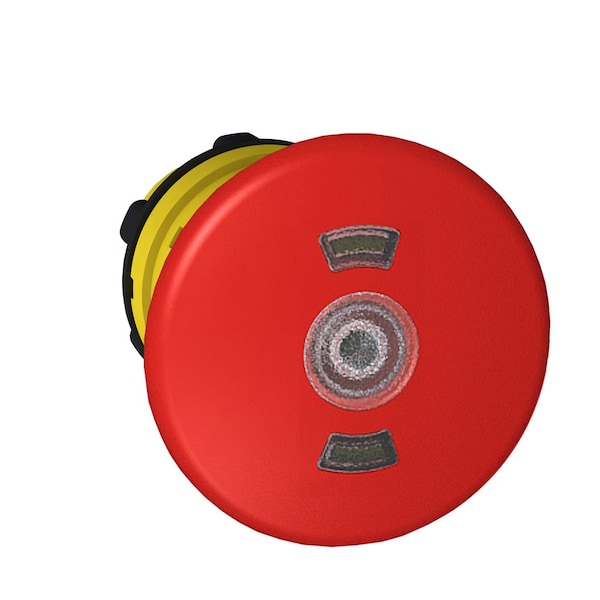

Paro de emergencia iluminado para apagar, Harmony XB5, de plástico, rojo con cabeza en forma de hongo de 40 mm, de 22 mm, de empuje-arrastre con disparador de aseguramiento, con indicador de estado.
| Item | Plastic Push Pull E-Stop W/Status Indica |
|---|---|
| Bezel Material | dark grey plastic |
| Standards | EN 81-1 || GB 14048.5 || UL 508 || EN/ISO 13850 || EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-1 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Cad Overall Width | 40 mm |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Mounting Diameter | 22 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Overvoltage Category | class II IEC 60536 |
| Reset | push-pull |
| Cad Overall Depth | 59 mm |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Head Type | Standard |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Ik Degree Of Protection | IK05 IEC 50102 |
| Device Short Name | ZB5 |
| Cad Overall Height | 40 mm |
| Compatibility Code | ZB5 |
| Shape Of Signaling Unit Head | round |
| Device Presentation | basic element |
| Type Of Operator | trigger action and mechanical latching with mechanical state indicator |
| Protective Treatment | TH |
| Station Name | XALD 1 cut-out || XALK 1 cut-out |
| Product Or Component Type | head for illuminated emergency stop push-button |
| Electrical Composition Code | M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED |
| Product Compatibility | integral LED |
| Ip Degree Of Protection | IP54 IEC 60529 |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Mechanical Durability | 500,000 cycle |
| Ambient Air Temperature For Operation | -40-70°C |
| Product Certifications | CSA || BV || LROS (Lloyds register of shipping) || DNV || GL || UL Listed |
| Range of Product | Harmony, Harmony XALF XB5 |
| Package Quantity | 1 |
