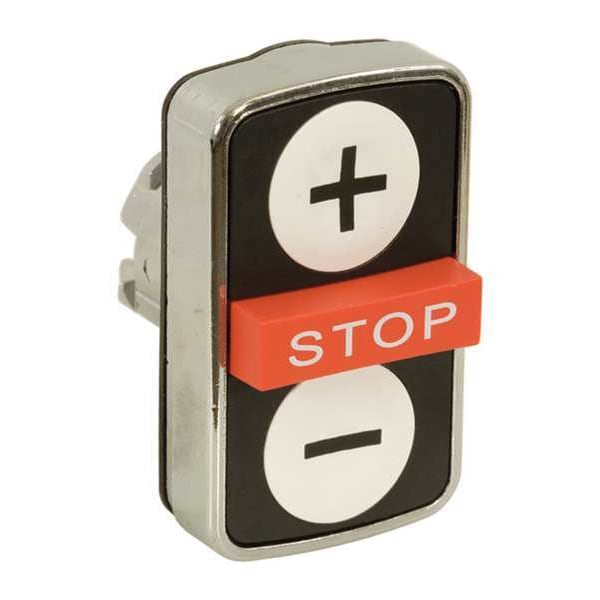

Operador Multi-Cabeza Iluminado, 22 mm, Redondo
| Item | Multihead Operator |
|---|---|
| Number of Heads | 3 |
| Legend/Background Color | White, Red, Black |
| Legend | Stop |
| Type of Operator | (1) Extended Button, (2) Flush Buttons |
| Lamp Type | Not Applicable |
| Number of Operators | 3 |
| NEMA Rating | 13, 4X |
| Series | XB4 |
| Size | 22 mm |
| Standards | Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508 |
| Head Material | Metal |
| Action | Momentary |
| Shape | Round |
| Bezel Material | Metal |
| IP Rating | IP66, IP69K |
| Lamp Voltage | Module Not Included |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Terminal Connection | Not Applicable |
| Legend Color | White, Black |
| Product Type | Multihead Operators |
| Operating Temperature - Minimum | -13 deg F |
| Lamp Module Type | Not Applicable |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Hazardous Location Specification | Not Rated |
| Push Button Style | Extended |
| Legend Background Color | Red, White |
| Overall Depth | 1.38 in |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 2 |
| Number of Indicator Lights | 0 |
| Panel Cutout Diameter | 22 mm |
| Head Color | Red, White |
| Operating Temperature - Maximum | 158 deg F |
| Lamp Voltage - Maximum | Not Applicable |
| Operator Material | Metal |
| Overall Height | 1.97 in |
| Operator Illumination | Non-Illuminated |
| Mushroom Head Diameter | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Overall Width | 1.18 in |
| Maintained Action Release | Not Applicable |
| Head Type | Standard |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Certifications | BV || GL || UL Listed || DNV || LROS (Lloyds register of shipping) || CSA |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Device Presentation | basic element |
| Colour Of Marking | white marking when green, red or black caps || black marking when white caps |
| Operators Description | white ''+'' - white ''-'' - red ''STOP'' |
| Product Or Component Type | head for triple-headed push-button |
| Mounting Diameter | 22 mm |
| Ip Degree Of Protection | IP69 IEC 60529 |
| Device Short Name | ZB4 |
| Electrical Shock Protection Class | class I IEC 60536 |
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Mechanical Durability | 1,000,000 cycle |
| Shape Of Signaling Unit Head | rectangular |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -25-70°C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Operator Profile | 2 flush - 1 central projecting STOP push-buttons, red projecting, STOP white) || white flush, - black) || white flush, + black) |
| Package Quantity | 1 |
