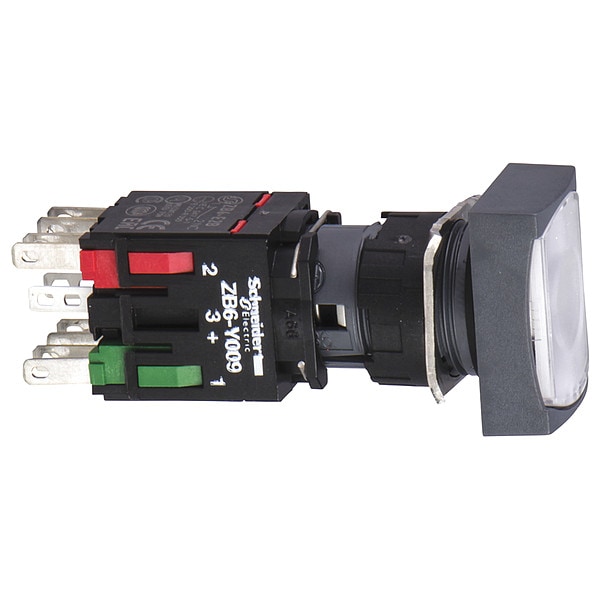

Botón pulsador iluminado, 16 mm, 1 contacto normalmente abierto (NO), blanco
| Action | Momentary |
|---|---|
| Size | 16 mm |
| Legend/Background Color | No Legend |
| Head Material | Plastic |
| NEMA Rating | 13, 4, 4X |
| Lamp Voltage | 12 to 24V AC/DC |
| Lamp Type | LED |
| Type of Operator | Rectangular Flush Button |
| Color | White |
| Contact Form | 1NO |
| Legend | Not Applicable |
| Bezel | Plastic |
| Number of Operators | 1 |
| Item | Illuminated Push Button |
| Contact Rating | 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC |
| Bezel Material | Plastic |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 12 to 24V AC/DC |
| Legend Markings | No Legend |
| Standards | CCC, CSA, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, GOST, JIS C4520, JIS C852, REACH, RoHS, UL Listed, WEEE |
| Basic Material | Plastic |
| Voltage | 12 to 24V AC/DC |
| Terminal Connection | Quick Connect |
| IP Rating | IP65 |
| NEMA Contact Rating Designation | R300, B300 |
| Series | XB6 |
| DC Contact Rating | 0.1 A @ 250 V, 0.22 A @ 125 V |
| AC Contact Rating | 1.5 A @ 240 V, 3 A @ 120 V |
| Features | Spring Return, Weighs 22 g |
| Product Type | Push Button Operators |
| Maintained Action Release | Not Applicable |
| Operator Material | Plastic |
| Overall Depth | 2.24 in |
| Legend Color | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Overall Height | 0.71 in |
| Number of Indicator Lights | 0 |
| Legend Background Color | Not Applicable |
| Operator Voltage Rating - Maximum | 250 V AC/DC |
| Mushroom Head Diameter | Not Applicable |
| Lamp Voltage - Maximum | 24 V AC/DC |
| Hazardous Location Specification | Not Applicable |
| Head Color | White |
| Overall Width | 0.94 in |
| Operator Illumination | Illuminated |
| Operating Temperature - Maximum | 158 deg F |
| NEMA Enclosure Rating | 4, 13, 4X |
| Operating Temperature - Minimum | -13 deg F |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Push Button Style | Flush |
| Panel Cutout Diameter | 16 mm |
| Electrical Durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Operator Profile | white flush, unmarked |
| Surge Withstand | 1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5 |
| Contacts Type And Composition | 1 NO |
| Cad Overall Height | 18 mm |
| Signalling Type | steady |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Current Consumption | 15 mA |
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| Bulb Base | integral LED |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Product Or Component Type | push-button, complete push button |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Operating Position | any position |
| Cad Overall Depth | 57 mm |
| Cad Overall Width | 24 mm |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Ambient Air Temperature For Storage | -40-70°C |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Operation | -25-70°C |
| Nema Degree Of Protection | NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94 |
| Product Certifications | UL || CCC || GOST || CSA |
| Shape Of Signaling Unit Head | rectangular |
| [Ie] Rated Operational Current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6 |
| Contact Operation | slow-break |
| Protective Treatment | TC |
| Electromagnetic Emission | class B IEC 55011 |
| Supply Voltage Limits | 6-30 V AC, DC |
| Operating Travel | 1 mm NO changing electrical state) || 3.5 mm total travel) |
| Contact Type | 1NO |
| Electrical Shock Protection Class | class II IEC 61140 |
| Terminals Description Iso N°1 | NO |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Operating Force | 3.5 N NO changing electrical state |
| Short-Circuit Protection | 6 A cartridge fuse gG |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Electrical Reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
| [Us] Rated Supply Voltage | 12 to 24 V AC/DC |
| Light Source | LED |
| Contacts Material | silver alloy |
| Device Short Name | XB6 |
| Mounting Diameter | 16 mm |
| Package Quantity | 1 |
