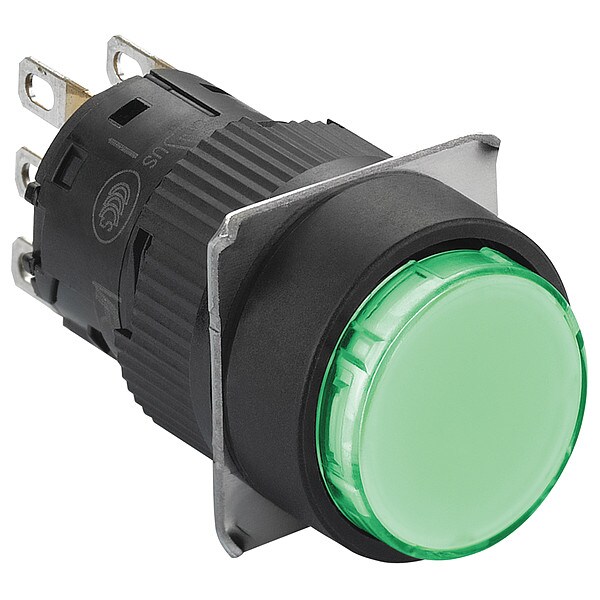

Botón de presión iluminado, 16 mm, SPDT, verde
| Action | Momentary |
|---|---|
| Size | 16 mm |
| Head Material | Plastic |
| Legend/Background Color | No Legend |
| Lamp Voltage | 24V DC |
| Type of Operator | Round Flush Button |
| Lamp Type | LED |
| Color | Green |
| Contact Form | SPDT |
| Bezel | Plastic |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Contact Rating | 0.15A @ 125V DC, 0.2A @ 125V DC, 0.7A @ 240V AC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC |
| Item | Illuminated Push Button |
| Bezel Material | Plastic |
| Terminal Connection | Quick Connect |
| Basic Material | Plastic |
| Voltage | 24 V DC |
| Standards | CCC, CSA C22.2 No.14, cURus, IEC 60947-1, IEC 60947-5-1, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE |
| Legend Markings | No Legend |
| Lamp Module Type | Full Voltage |
| IP Rating | IP65 |
| NEMA Contact Rating Designation | DC-13, DC-12, AC-12/AC-13 |
| Lamp Module Voltage | 24 V DC |
| DC Contact Rating | 0.15 A @ 125 V, 0.2 A @ 125 V, 0.7 A @ 24 V, 1 A @ 24 V |
| AC Contact Rating | 0.5 A @ 240 V, 1 A @ 120 V |
| Series | XB6E |
| Product Type | Push Button Operators |
| Overall Height | 0.71 in |
| Push Button Style | Flush |
| Hazardous Location Specification | Not Applicable |
| Number of Indicator Lights | 0 |
| Operating Temperature - Maximum | 131 deg F |
| Lamp Voltage - Maximum | 24 V DC |
| Operator Material | Plastic |
| Head Color | Green |
| NEMA Enclosure Rating | 12, 1 |
| Manufacturer Warranty Length | 18 mo |
| Legend Color | Not Applicable |
| Overall Width | 0.71 in |
| Mechanical Operating Durability | 1.00 x 10^6 |
| Legend Background Color | Not Applicable |
| Mushroom Head Diameter | Not Applicable |
| Operator Illumination | Illuminated |
| Maintained Action Release | Not Applicable |
| Operating Temperature - Minimum | 14 deg F |
| Operator Voltage Rating - Maximum | 250 V AC |
| Panel Cutout Diameter | 16 mm |
| Overall Depth | 1.58 in |
| Vibration Resistance | 1 mm 10-55 Hz)IEC 60068-2-6 |
| Contacts Material | gold-flashed silver |
| Shape Of Signaling Unit Head | round |
| [Ie] Rated Operational Current | 1.5 A 120 V, AC-12 EN/IEC 60947-5-1 || 1 A 240 V, AC-12 EN/IEC 60947-5-1 || 1 A 24 V, DC-12 EN/IEC 60947-5-1 || 0.7 A 24 V, DC-13 EN/IEC 60947-5-1 || 0.2 A 125 V, DC-12 EN/IEC 60947-5-1 || 0.15 A 125 V, DC-13 EN/IEC 60947-5-1 |
| Operator Profile | green flush |
| Mounting Diameter | 16 mm |
| Electrical Durability | 100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C |
| Device Short Name | XB6E |
| Signalling Type | steady |
| Contact Type | 1C/O |
| Ambient Air Temperature For Storage | -40-70°C |
| Contact Operation | snap action |
| Current Consumption | 10 mA |
| [Ith] Conventional Free Air Thermal Current | 3 A fast connector socket) || 5 A |
| Contacts Type And Composition | O, 1 C |
| Connections - Terminals | insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket |
| [Us] Rated Supply Voltage | 24 V DC polarised |
| Light Source | LED |
| Product Certifications | CCC || cURus |
| Marking | CE |
| Operating Position | any position |
| Mechanical Durability | 1,000,000 cycle |
| Shock Resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Short-Circuit Protection | 2 A cartridge fuse gG |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Product Or Component Type | illuminated monolithic push-button |
| Contact Resistance | 50 mOhm 1/6 V |
| Ambient Air Temperature For Operation | -10-55°C |
| Package Quantity | 1 |
