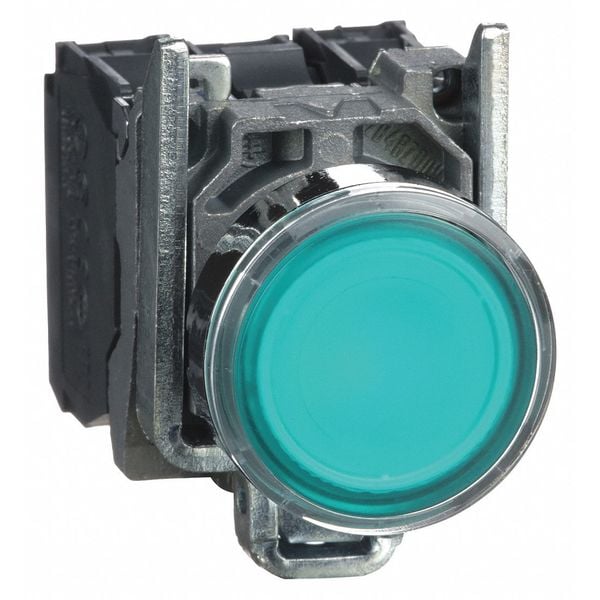

Botón de presión iluminado, 22mm, verde
| Item | Illuminated Push Button |
|---|---|
| Voltage | 120V AC |
| Color | Green |
| Action | Momentary |
| Type of Operator | Round Guarded Button |
| Lamp Type | LED |
| Head Material | Metal |
| Shape | Round |
| Terminal Connection | Screw Clamp |
| Contact Form | 1NO/1NC |
| Bezel | Chrome Plated Metal |
| Size | 22 mm |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 120V AC |
| Basic Material | Metal |
| Contact Rating | 10A @ 600V AC |
| Number of Operators | 1 |
| Contact Type | 1NO/1NC |
| Lamp Voltage | 120V AC |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| IP Rating | IP69K, IP67, IP66, IP69 |
| NEMA Contact Rating Designation | A600, Q600 |
| Standards | Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE |
| Height | 47 mm |
| Length | 57 mm |
| Average Life | 100,000 hr |
| Width | 30 mm |
| Product Type | Push Button Operators |
| Legend | Not Applicable |
| Type | Steady Signal |
| Bezel Material | Chrome |
| Operator Voltage Rating - Maximum | 600 V AC/DC |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| NEMA Enclosure Rating | 13, 4X |
| Overall Height | 1.85 in |
| Overall Depth | 2.24 in |
| Operating Temperature - Minimum | -40 deg F |
| Overall Width | 1.18 in |
| Manufacturer Warranty Length | 18 mo |
| Operator Illumination | Illuminated |
| Operator Material | Metal |
| Mushroom Head Diameter | Not Applicable |
| Resistance Properties | Dust Resistant, Impact Resistant, Temperature Resistant, Vibration Resistant, Watertight |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Panel Cutout Diameter | 22 mm |
| Push Button Style | Flush |
| Hazardous Location Specification | Not Applicable |
| Number of Indicator Lights | 0 |
| Features | For High Power Applications, For Low Load Electrical Contact Applications |
| Operating Temperature - Maximum | 158 deg F |
| Head Color | Green |
| Legend Background Color | Not Applicable |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Maintained Action Release | Not Applicable |
| Series | XB4 |
| Lamp Voltage - Maximum | 120 V AC |
| Legend Color | Not Applicable |
| Package Quantity | 1 |
