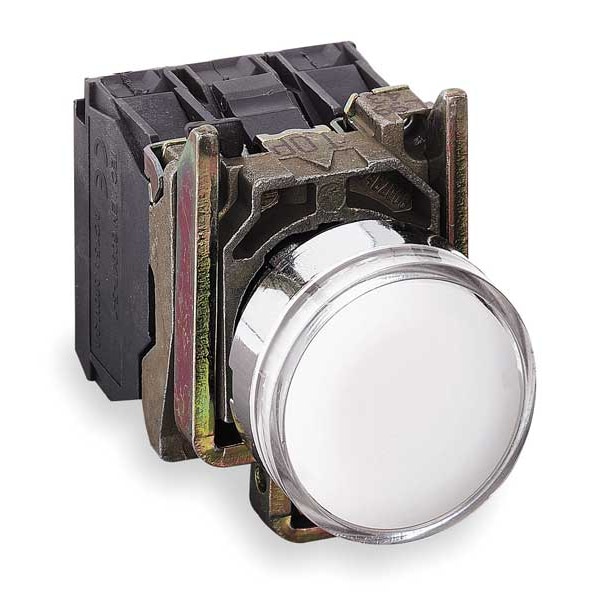

Botón de presión iluminado, 22mm, Blanco
| Item | Illuminated Push Button |
|---|---|
| Voltage | 120V AC |
| Action | Momentary |
| Color | White |
| Type of Operator | Round Guarded Button |
| Lamp Type | LED |
| Head Material | Metal |
| Shape | Round |
| Contact Form | 1NO/1NC |
| Terminal Connection | Screw Clamp |
| Bezel | Chrome Plated Metal |
| Size | 22 mm |
| Lamp Module Voltage | 120V AC |
| Lamp Module Type | Full Voltage |
| Basic Material | Metal |
| NEMA Contact Rating Designation | A600, Q600 |
| Lamp Voltage | 120V AC |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Contact Type | 1NO/1NC |
| IP Rating | IP69K, IP67, IP66, IP69 |
| Number of Operators | 1 |
| Standards | Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE |
| Contact Rating | 10A @ 600V AC |
| Average Life | 100,000 hr |
| Length | 57 mm |
| Height | 47 mm |
| Width | 30 mm |
| Product Type | Push Button Operators |
| Type | Steady Signal |
| Legend | Not Applicable |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Contacts Material | Silver alloy |
| Depth | 2.24 in |
| NEMA Degree Of Protection | NEMA 13; NEMA 4X |
| Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Supply Voltage Limits | 100 to 132 V AC |
| Electromagnetic Emission | Class B IEC 55011 |
| Signalling Type | Steady |
| Operating Travel | 0.06 in (1.5 mm) NC changing electrical state); 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel) |
| Vibration Resistance | 5 gn 2 to 500 Hz)IEC 60068-2-6 |
| Short-Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Product Certifications | LROS (Lloyds register of shipping); GL; UL Listed; DNV; CSA; BV |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Contact Operation | Slow-break |
| Contact Type and Composition | 1 NO + 1 NC |
| Shape Of Screw Head | Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm |
| Ambient Air Temperature For Operation | -40 to 158°F |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Current Consumption | 14 mA |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Contacts Usage | Standard contacts |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical Shock Protection Class | Class I IEC 60536 |
| Bezel Material | Chrome |
| IP Degree Of Protection | IP66 IEC 60529; IP67; IP69; IP69K |
| Electrical Reliability | Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Resistance To High Pressure Washer | 1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m |
| Positive Opening | With IEC 60947-5-1 appendix K |
| Operating Force | 3.5 N, 3.8 N |
| Operator Profile | White flush |
| Rated Supply Voltage | 110 to 120 V AC 50/60 Hz |
| Protective Treatment | TH |
| Bulb Base | Integral LED |
| Fixing Collar Material | Zamak |
| Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Service Life | 100000 h at rated voltage and 25°C |
| Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Light Source | LED |
| Resistance To Electromagnetic Fields | 9.14 V/m |
| Connections - Terminals | Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1 |
| Mechanical Durability | 10,000,000 cycle |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Mounting Diameter | 0.87 in |
| Terminals Description ISO n°1 | NO, NC |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| IK Degree Of Protection | IK06 IEC 50102 |
| Head Type | Standard |
| Device Presentation | Complete product |
| Tightening Torque | 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1 |
| Product Or Component Type | Push-button |
| Terminals Description ISO n°1 | NO, NC |
| Overall Height | 1.85 in |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Maintained Action Release | Not Applicable |
| Mushroom Head Diameter | Not Applicable |
| Number of Indicator Lights | 0 |
| Overall Depth | 2.24 in |
| Overall Width | 1.18 in |
| Operating Temperature - Minimum | -40 deg F |
| Operator Illumination | Illuminated |
| Operator Voltage Rating - Maximum | 600 V AC/DC |
| Legend Color | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Operating Temperature - Maximum | 158 deg F |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Operator Material | Metal |
| Head Color | White |
| Panel Cutout Diameter | 22 mm |
| Features | Quick Assembly, Quick Disassembly |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Hazardous Location Specification | Not Applicable |
| Push Button Style | Flush |
| Series | XB4 |
| NEMA Enclosure Rating | 13, 4X |
| Lamp Voltage - Maximum | 120 V AC |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Legend Background Color | Not Applicable |
| Package Quantity | 1 |
